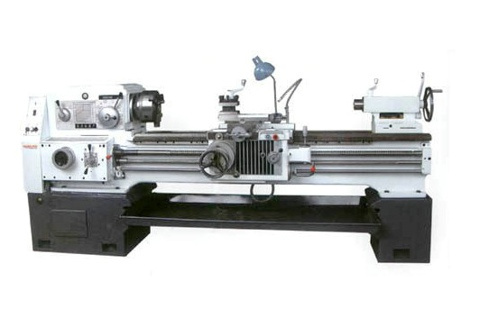

CNC/Automatic/Manual Lathe Machine Tool

Name: CNC/Automatic/Manual Lathe Machine Tool
Brand: China-Manufacturer-Directory.com
SKU: 698040432
Availability: InStock
Rating: 4.4 (108 reviews)

Supplier:	Shijiazhuang Yibell Technology Co., Ltd.
Price:	US $ 4000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	Automatic/Manual
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Features Of This Machine:	Performance Design
Max.Travel Of Cross Slide:	325mm
Type:	Horizontal Lathe
Automatic Grade:	Manual
Precision:	High Precision
Power Source:	Mechanical Drive
Setting Mode:	Floor-type
Controlling Mode:	Artificial
Processing Accessory:	Centre CNC Lathe
Tool Holder:	Double-tool Holder CNC Lathe

Product Description

lathe machine tool/CNC machine
Feature:
1) precision ground
2) CE-conformity
3) safety torque limiting device for lead screw
4) safety overload clutch for feedrod
5) rapid traverse (optional)
6) main spindle supported at 2 points with precision taper roller bearings

Standard accessories
3-jaw chuck 250mm, driving plate, center & center sleeve, oil gun, wrenches, operation manual

Optional accessories
Steady rest, follower rest, 4-jaw chuck 320mm, face plate, thread dial, longitudinal automatic trip, live center, quick change toolpost, taper copy ruler, 4-position longitudinal antomatic trip.

SPECIFICATIONS		22606	22607	22608
		CY6 1/2 60	CY6 1/2 66	CY6 1/2 80
	Swing over bed	600 (24" )	660 (26" )	800 (32" )
CAPACITIES	Swing over cross slide	400mm	460mm	600mm
	Swing in gap	800mm (31 1/2" )	860mm (33 4/5" )	1000mm (39" )
	Valid length of gap	280mm (11" )
	Max Length of work piece	1000mm (39 1/3" ) 1500mm (59" ) 2000mm (78 3/4" ) 3000mm (118" )
	Width of bedways	400mm (16 1/4" )
HEADSTOCK	Spindle nose	ISO-C11 or ISO-D11
	Spindle bore	Φ 103mm (4" )
	Range of spindle speeds, Number	9-1275rpm/18, 16-81rpm/6
FEEDS	Max. travel of compound rest	110mm
	Max. travel of cross slide	325mm
	Longitudinal leadscrew pitch	12mm or 2TPI
	Section of tool	32 x 32mm
	Longitudinal feeds range	72kinds 0.073-4.066mm/rev
	Cross feeds range	72kinds 0.036-2.033mm/rev
	Metric threads range	72kinds 0.5-112mm/rev
	Inch threads range	72kinds 56-1/4 t/inch
	Module threads range	36inds 0.5-7mm
	Diametral threads range	36kinds 56-4Dp
CARRIAGE	Dia. of tailstock sleeve	Φ 90mm
	Morse taper of tailstock sleeve	Morse No. 6
	Travel of tailstock sleeve	150mm
	Cross adjustment range	10mm
TAILSTOCK	Power of main motor	7.5kw 10kw
	Power of quick-travel motor	250w
MOTOR	Power of coolant pump	90w
	Power of supply	220V, 380V, 420V (50Hz, 60Hz)
Packing Size (L x W x H)	1000mm	2820 x 1300 x 2100mm
	1500mm	3320 x 1300 x 2100mm
	2000mm	3820 x 1300 x 2100mm
	3000mm	4820 x 1300 x 2100mm

N. W / G. W	1000mm	2900/3500kg	3000/3500kg	3150/3750kg
	1500mm	3150/3750kg	3250/3850kg	3400/4000kg
	2000mm	3400/4050kg	3500/4150kg	3650/4300kg
	3000mm	3800/4450kg	3900/4550kg	4050/4700kg
