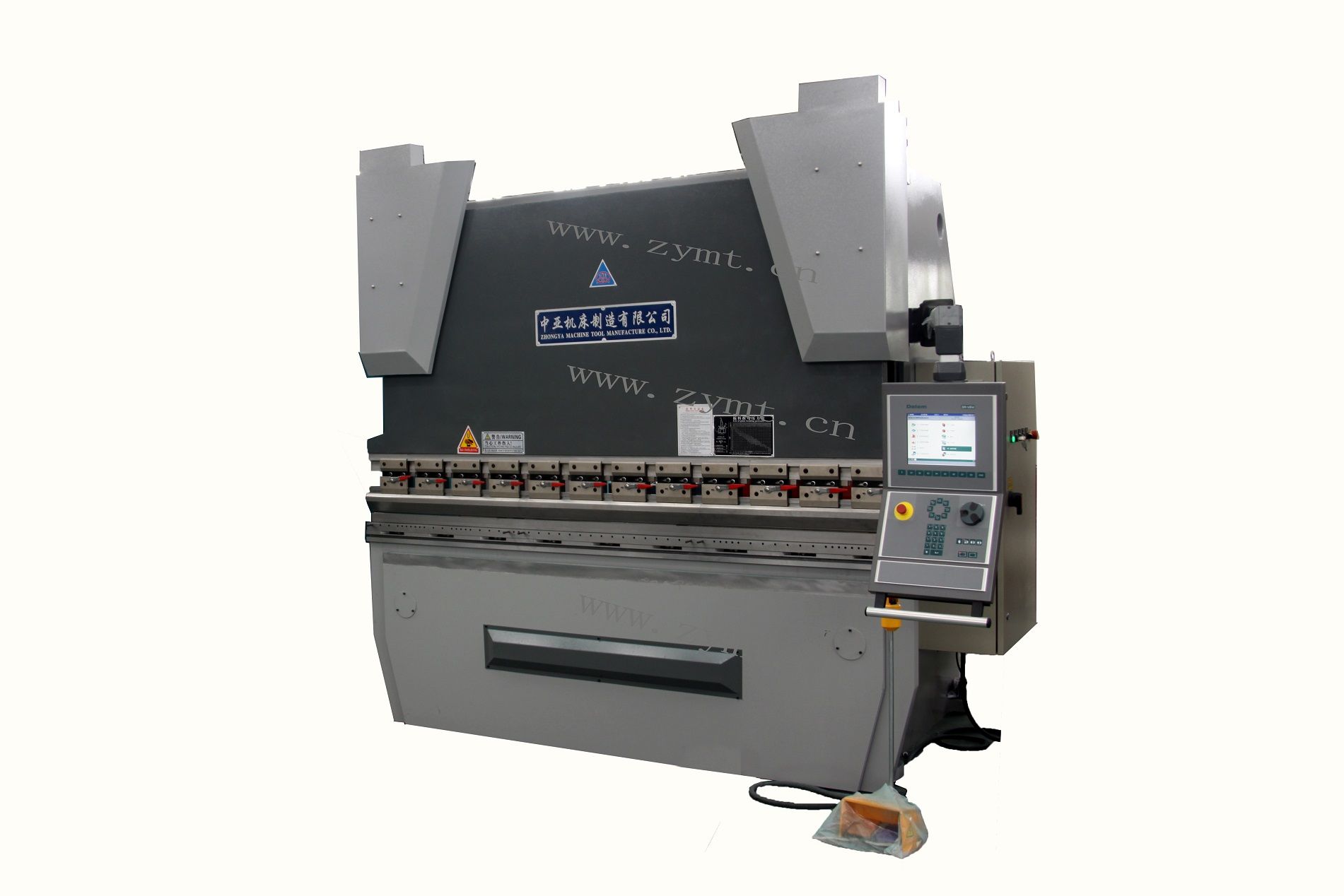

CNC Bending Machine on Sale (wc67k-100t*2500) /Pipe Bending Machine/Machine Tool

Product Specifications

Prod Model:	wc67k-100t*2500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Machinery & Hardware
Type For Fold-bending Machine:	Hydraulic Fold-bend Machine

Product Description

Features
WC67K series

1:The machine is metal plate welded structure, with internal stress eliminated by vibration aging technology, high strength and good rigidity of machine.
2:Double hydraulic cylinders are applied for upper transmission, provided with mechanical limit stopper and synchronize torsion bar, typical of stable and reliable operation, as well as high precision.
3:Electrical control and manual fine-turning mode are adopted for distance of rear stopper and stroke of gliding block, and fitted with numeric controller basis on the WC67Y series press brake.
4:Upper punch clamping fitted with deflection compensation device.
5:Multi-steps programming function is able to achieve an automatic operation and continues positioning of multi-steps procedures, as well as an automatic precision adjustment for positions of rear stopper and upper beam.
6:The machine is provided with bend counting function, real-time display of processing quantity, power-failure memory of positions of rear stopper, upper beam, programs and parameters.

Parameter

Type	Nominal force(KN)	Worktable length(mm)	Poles distance(mm)	Throat depth(mm)	Slider travel(mm)	Max open (mm)	Power (KN)	Weight	Dimension (mm)
40t/2200	400	2200	1850	230	100	320	5.5	2750	2200*1200*1900
40t/2500	400	2500	1850	230	100	320	5.5	3000	2500*1200*1900
50t/2500	500	2500	1850	230	100	320	5.5	3400	2500*1200*2000
63 t/2500	630	2500	1900	250	100	320	5.5	4000	2500*1300*2210
63 t/3200	630	3200	2560	250	100	320	5.5	4800	3200*1300*2210
80 t/2500	800	2500	1990	300	100	320	7.5	5000	2500*1400*2300
80t/3200	800	3200	2560	320	100	350	7.5	6000	3200*1500*2300
80t/4000	800	4000	3200	320	100	350	7.5	7000	4000*1500*2400
100 t/2500	1000	2500	1990	320	120	350	7.5	6000	2500*1600*2400
100t/3200	1000	3200	2600	320	150	400	7.5	6800	3200*1600*2600
100 t/4000	1000	4000	3200	320	150	400	7.5	8000	4000*1600*2600
125 t/3200	1250	3200	2600	320	150	400	11	7000	3200*1600*2600
125 t/4000	1250	4000	3200	320	150	400	11	8500	4000*1600*2600
160 t/3200	1600	3200	2580	320	200	460	11	10000	3200*1700*2700
160 t/4000	1600	4000	2900	320	200	460	11	11000	4000*1700*2800
160 t/5000	1600	5000	3900	320	200	460	11	13500	5000*1900*3100
160t/6000	1600	6000	4900	320	200	460	11	18500	6300*1900*3200
200t/3200	2000	3200	2480	320	200	460	11	11000	3200*1950*2800
200t/4000	2000	4000	2900	320	200	460	11	12500	4000*1950*2800
200t/5000	2000	5000	3900	320	200	460	11	14000	5000*1950*3000
200t/6000	2000	6000	4900	320	200	460	11	20000	6000*1950*3300
250t/3200	2500	3200	2450	400	250	590	18.5	18500	3250*2000*3200
250 t/4000	2500	4000	2900	400	250	590	18.5	20000	4000*2000*3400
250/5000	2500	5000	3900	400	250	590	18.5	23000	5000*2000*3400
250/6000	2500	6000	4900	400	250	590	18.5	27000	6000*2000*3400
300t/3200	3000	3200	2450	400	250	590	22	20500	3200*2000*3450
300t/4000	3000	4000	2900	400	250	590	22	22000	4000*2000*3450
300t/5000	3000	5000	3900	400	250	590	22	25000	5000*2000*3450
300t/6000	3000	6000	4900	400	250	590	22	28500	6000*2000*3450
400t/3200	4000	3200	2400	400	250	590	30	22500	3200*2180*3400
400t/4000	4000	4000	2900	400	250	590	30	25000	4000*2180*3400
400t/5000	4000	5000	3900	400	250	590	30	29000	5000*2180*3500
400t/6000	4000	6000	4900	400	250	590	30	34000	6000*2180*3800
500t/5000	5000	5000	3900	400	250	590	45	42000	5050*3500*3700
500t/6000	5000	6000	4900	400	320	590	45	54000	6050*3500*3700
600t/5000	6000	4000	2900	400	320	590	55	44000	4050*4500*3700
600t/6000	6000	6000	4900	400	320	590	55	60000	6050*4500*3700

Main parts list and basic technicals:
1:Basic standard NCmachine with E21 controller

NO.	Parts name	Brand	Brand location	Model
1.	Main motor	Siemens	Germany
2.	Bacguage motor	Detong	Shanghai China
3.	Ram motor	Kongte	Nanjing China
4.	Electrics	Schneider	France
5.	Oil cylinder	Yuhua	Maansh China
6.	Seal ring	Nok	Japan
7.	Hydraulic valve	Rexroth	Germany
8.	Pump	Hangfa	Shanghai China
9.	Controller	E21	Nanjing China
10.	Mould	Guoling	Maanshan China
11.	Pipe connector	EMB	Germany
12.	Footswitch	Karcon	South Korea
13.	Ball screw	Hiwin	Taiwan
14.	Controller with moveable arm		YES
15.	Front and back protection fence		YES
16.	Backguage with ball screw		YES
17.	Backguage travel		500MM
18.	Emergency button		YES

E200 higher level NC controller with servo motor of X-Y-axis,Two axes DA41 NC Control system for you to choice

Our service
1:Established over 100 sales and service outlets in the country's 29 provinces, municipalities and also the establishment of foreign 72 sales points, machine sales, spare parts supply, maintenance, technical advice and a range of services for users at hone and abroad.
2:We have a specialized group in charge of the whole business process.Pre-sales to be a staff, the sales is a friend, and after-sales we are partners.
