| Supplier: | Changcheng Electrical Group Zhejiang Technology Co., Ltd. |
|---|---|
| Price: | US $ 3.5-30.85/Piece |
| Min Order: | 50/Piece |
| Quantity:: | |
| Trade Terms: | FOB,CFR,EXW |
|
|
| Prod Model: | CJ12 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Insulation Voltage (V): | 380V |
| Rated Thermal Current (a): | 100, 150, 250, 400 a |
| Frequency: | 50/60Hz |
| Rated Operation Voltage(V): | 24, 36, 48, 110V |
| Ambient Temperature: | -5~+40'c |
| Mechanical Life: | 10000 |
| Model Number: | Cj12 |
| Brand Name: | CNC |
| Protective Characteristics: | Sealed relay |
| Load: | High Power Relay |
| Size: | Miniature |
| Action Principle: | Induction Type |
| Theory: | AC Contactor Relay |
| Usage: | AC Contactor Relay |
types of ac magnetic contactor
1)CE, IEC,CCC,SGS
2) China top 500
3) sale more than 100 Countries.
About CNC

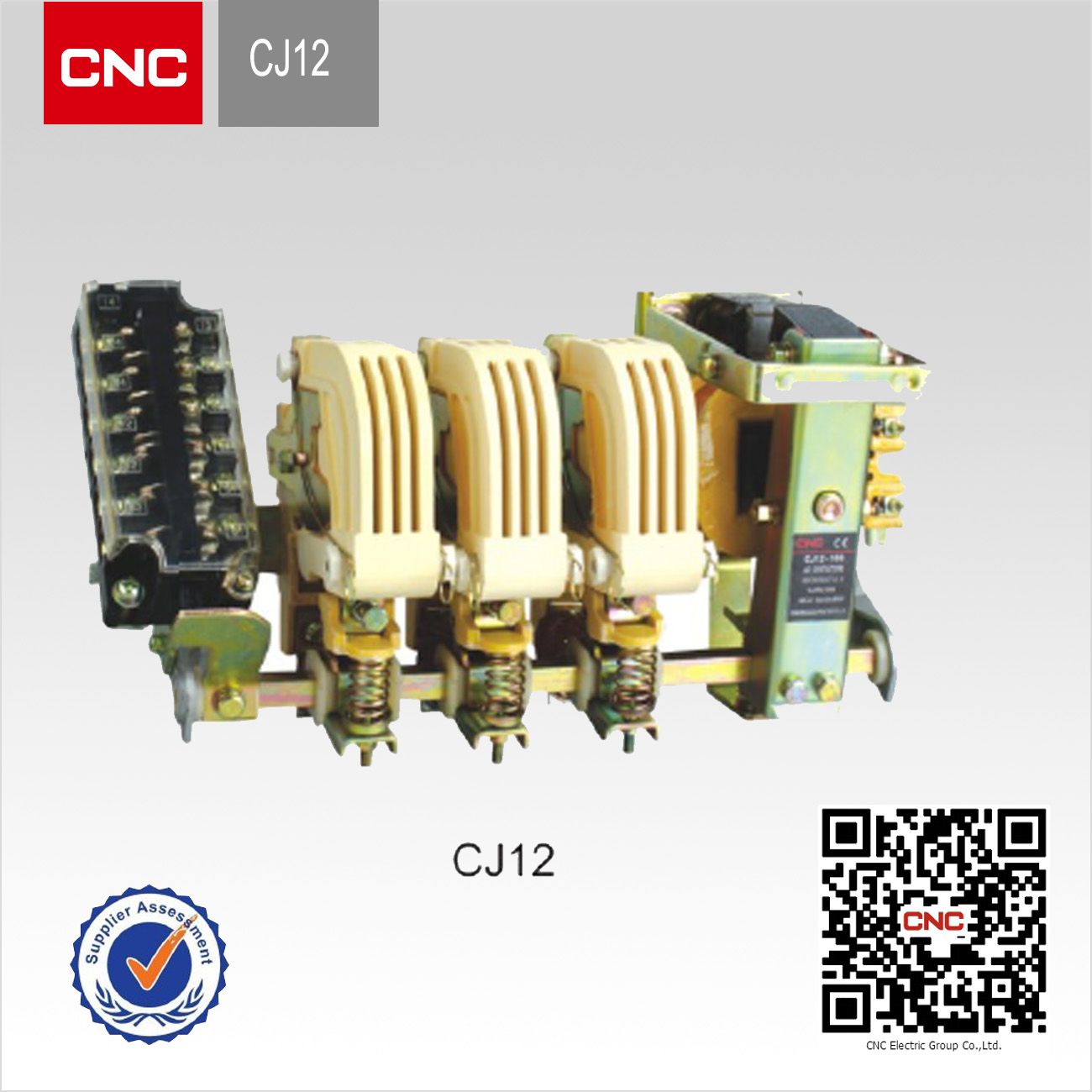

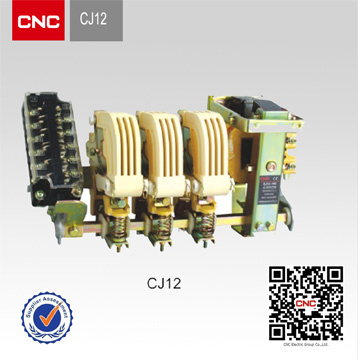

CJ12 series AC Contactor is suitable for using in the circuits the rated voltage up to 660V AC50Hz or 60Hz, rated current up to 12A in AC-3 using category , for making & breaking, frequently starting & controlling the AC motor. Combine with the auxiliary contact block, timer delay & machine- interlocking device etc, it becomes the delay contactor,mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The contactor is produced according to IEC 60947-4.
In most time, the buyer need not to pay any customs. Well declare it as a gift and a low value to avoid the tax.But sometimes in some countries, the customs officer is strict. We are not accountable for any customs fee, Please check it out the customs policy at your own place, such as Italy and Holland. If you have to pay thecustoms fees, it is your duty to your own country, the buyer should understand this situation. Buyers are responsible for any insurance. Please contact with us advance if you need.
China post air mail / Hong Kong post air mail /Singapore post air mail takes about 7-40 days(or more) at usual;DHL/UPS/FEDEX takes about 3-7 days at usual; EMS takes about 7-15 days at usual.
1.China Top 100 Industrial Electrical Enterprise
2.Netion High-tech Enterprise
3. Our Laboratory is China Key Industrial Electrical Laboratory;
4. We have completely sales service system, ensure every detail is going smooth.
5. We have new designed products each year by our R&D Dpartment.
6. Perfect testing system ensure each product is qualified.
7. Want know more of us? Waiting for your inquiry.
| Type | Rated insulating and operation voltage (V) | Rated thermal current (A) | Rated operation current (A) | Pole | Auxiliary contact | ||
| AC-2 | AC-4 | Control capacity | Log | ||||
| CJ12-100 | AC380 | 100 | 100 | 100 |
2 3 4 5 |
AC 380V 1000VA DC220V 90W Part electronic upper and lower |
Can be assembled 5NO 1NC 4NO 2NC 3NO 2NC 2NO 4NC 1NO 5NC |
| CJ12-150 | 150 | 150 | 150 | ||||
| CJ12-250 | 250 | 250 | 250 | ||||
| CJ12-400 | 400 | 400 | 400 | ||||
| CJ12-600 | 600 | 600 | 480 | ||||
| Specification | Making-breaking | Operation frequency (t/h) | Time or electrical durability (times) | ||
| Current | Voltage | Power factor | |||
| UP to 250A | 2.5Ie | Ue | 0.65 | 600 | 1.5X100000 |
| UP to 400A | 300 | 1X100000 | |||
