Qingdao G&G Machinery Company Ltd. >> CNC Column Moving Surface Grinding Machine

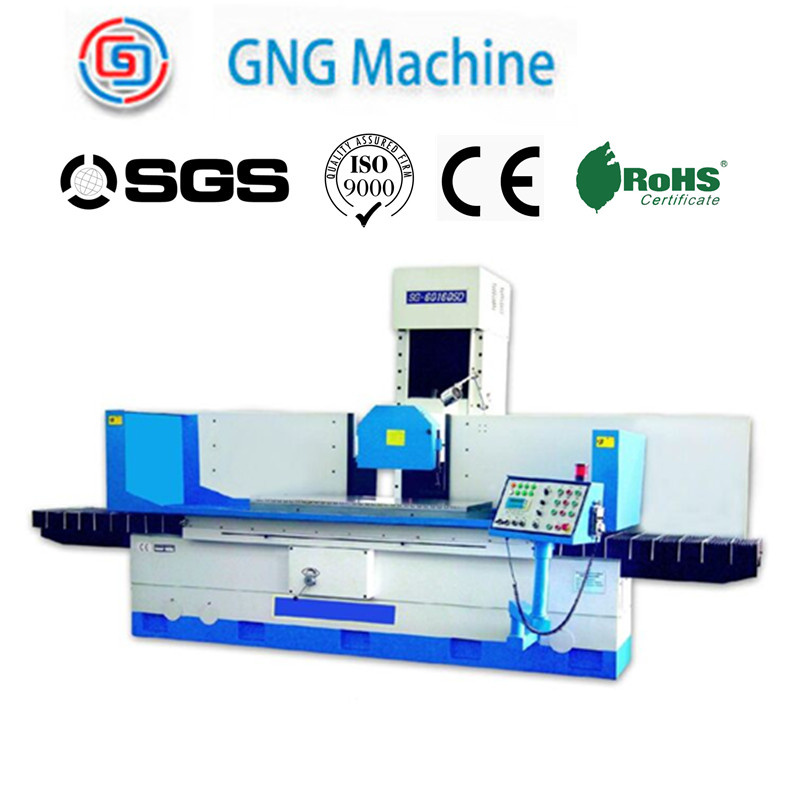

CNC Column Moving Surface Grinding Machine

Name: CNC Column Moving Surface Grinding Machine
Brand: China-Manufacturer-Directory.com
SKU: 699390822
Availability: InStock
Rating: 4.9 (123 reviews)

Supplier:	Qingdao G&G Machinery Company Ltd.
Price:	US $ 50625.00/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	SG60160SD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Table Size(Wxl):	610X1600(Mm)
Max. Grinding(Wxl):	610X1600(Mm)
Magnetic Chuck Size (Optional Equipment):	600X800X2(Mm)
Speed Of Table Longitudinal Movement:	5-25m/Min
Total Rated Power:	28.5kw
Type:	Disc Grinder
Power Source:	Electricity
Material:	Metal
Working Style:	High-speed universal

Product Description

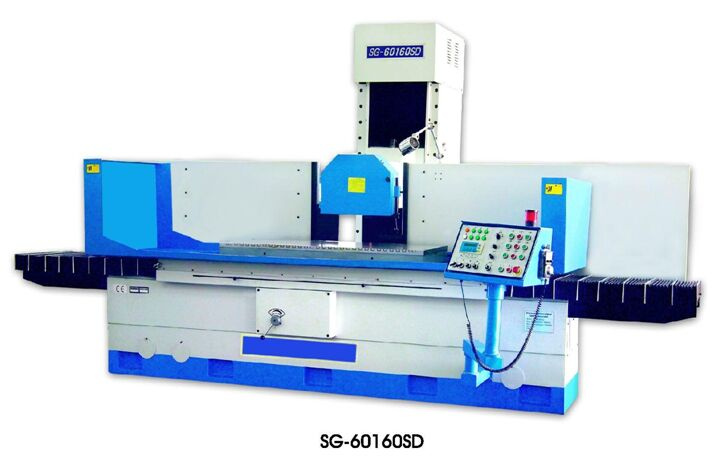

SG SGA plc cnc column moving surface grinder SG60160SD

SG SGA plc cnc column moving surface grinder
Item/Model		Unit	SG60160SD
Item/Model		Unit	SG60160CNC
table size(WxL)		mm	610X1600
max. grinding(WxL)		mm	610X1600
max. distance between spindle center line and worktable surface		mm	820/1050(925)
magnetic chuck size (optional equipment)		mm	600x800x2
speed of table longitudinal movement		m/min	5-25
wheel head cross moving	auto feed	mm/t	1-30
	rapid speed	m/min	0.05-2
	hand wheel feed	mm/div	0.005
wheel head vertical moving	auto feed	mm/t	0.005-0.05
	rapid speed	mm/min	0.05-2
	feed of handwheel	mm/div	0.005
wheel	speed	rpm	960(1450)
wheel	size(ODxWxID)	mm	500x75x305(450x75x203)
motor of spindle		kw	18.5
max. loading capacity of worktable with chuck		kg	1230
total rated power		kw	28.5

height of machine:2720/2920(mm)
floor space(LxW):4700x3000(mm)
gross weight:8500kg
