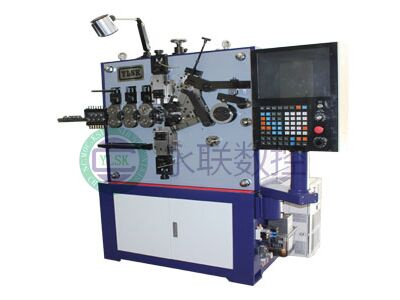

CNC Compression Machine

Product Specifications

Prod Model:	YLSK-540/550/560
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Pipe and Tube Bending Machine
Application:	Machinery & Hardware
Type For Cutting Machine:	CNC Cutting Machine
Type For Fold-bending Machine:	CNC Fold-bend Machine
Automation:	Automatic

Product Description

YLSK-540/550/560
CNC Spring Machine, Spring rolling machine, spring winding machine, Automatic.
1. use Taiwan PC and Japan servo motor.
2. has 5 axis, any of them can work independently or synchronously,  easy operation.
    1st axis is Wire-feeder: feeding wire with 15KW Japan servo motor. Accuracy: 0.1mm, max speed:30meter/minute
     2nd & 3 axis is ¬¬Cutting and twisting by two cutting sliders high-speed movement.
     4th axis is camshft, driven by 1.5kw servo motor, with high-precision ball screw shaft, ensuring highly accurate pitch.
    5th is OD,adjusted by 2.7kw servo motor, through the camshaft, horizontal lever drive slider  to move. Mandrel's move is driven by motor. Easy, stable and accurate
3. Price include the spring machine, a wire decoiler and the related cutting tools.

Parameter	YLSK-540	YLSK-550	YLSK-560
Machining Wire Diameter	Φ1.5-Φ4.0mm	Φ2.0-Φ5.0mm	Φ2.0-Φ6.0mm
Wire Feeding Instruction Value	±0.01-±9999.99 mm	±0.01-±9999.99 mm	±0.01-±9999.99 mm
Instruction Value of Cam	±0.1°-359.9°	±0.1°-359.9°	±0.1°-359.9°
Max Machining Speed	150 pcs/min.	50 pcs/min.	50 pcs/min.
Wire Fee Axis Servo	5.5KW	11KW	15KW
Upper Cutter Axis Servo	1.5KW	4.4KW	4.4KW
Below Cutter Axis Servo	1.5KW	4.4KW	4.4KW
Cam Axis Servo	1.5KW	2.7KW	2.7KW
Wire Pitch Axis Servo	1.5KW	1.5KW	1.5KW
Power	380V  3P  50HZ	380V  3P  50HZ	380V  3P  50HZ
Machine Size(mm)	1600x1000x1750mm	2100X1500X1750MM	2100X1500X1750MM
Machine Weight	1800KG	4500kg	4500kg
