CNC Corner Cleaning Machine for Plastic Doors and Windows (SQJB-CNC-125)
Product Specifications
| Prod Model: |
SQJB-CNC-125 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

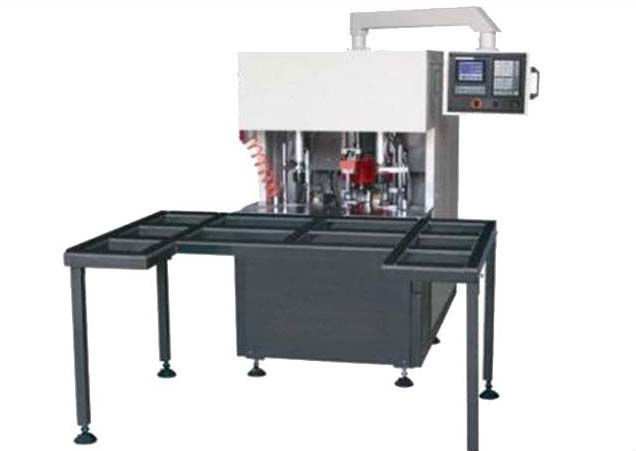

CNC Corner cleaning machine for plastic doors and windows SQJB-CNC-125
1). This machine is used for corner cleaning 90° Angle of plastic doors and windows.
2). It has the functions of digital control, pneumatic driving and mechanical technology.
3). With the imported digital control system, it can equip more than 100 processing procedures according to different profiles.
4). The rooting can cut outer corners and complete vertical surfaces cleaning ordered by the procedure.
5). Top and bottom milling knives can mill the top and bottom surfaces.
6). Another two top and bottom milling cutters can clean seal grooves and left inner glass easily. And also, according to different conditions, dialing numbers and changing the procedure, it also can clean the welding line cased by no precise rule.
7). This machine has features of easy adjustment and high automation. It is an ideal equipment for large scale and continuous and various profiles.
|
Brand Name |
Mingmei |
|
Model |
SQJBCNC-125 |
|
Input Power |
1.5Kw |
|
Input Voltage |
380V 50Hz |
|
Air Pressure |
0.4-0.7Mpa |
|
Air Consumption |
50L/min |
|
Main Milling Cutter Speed |
2800r/min |
|
Comprehensive Angle Cleaning Time |
25’ ’ |
|
Processing Profile Width |
20-120mm |
|
Processing Profile Height |
20-150mm |
|
processing Groove Width |
3mm |
|
Processing Groove Depth |
0.3mm |
|
Overall Dimension |
1600*880*1650mm |
|
Weight |
600Kg |
Jinan Mingmei Machinery Co., Ltd. Was founded in 1995, with our original business of processing plastic steel devices and providing qualified devices for many famous companies in Jinan and other cities around China. After over 15 years' development, our company has developed into a large scale enterprise which offers coordinated service in the fitting design, manufacture, assembly and sale of plastic steel devices, hollow glass equipment, aluminum door and window equipment and complete machines.
Our company is located in Western Section of Jingshi Road, and at the foot of Lashan Mountain in Jinan of Shandong. Phase 1 factory and Phase 2 factory of Mingmei cover more than 50, 000 square meters with a modern plant of 15, 000 square meters. We have over 400 staff members, and 50% of them have junior and senior professional titles. Our company has processing equipment of lathes, milling, planning, grinding, boring, drilling and other specialized equipment. We also have 100 sets of machinery processing equipment and CNC equipment, producing more than 50, 000 sets of door and window equipment and 10, 000 sets of various CNC routers annually.
We produce products strictly according to the trade standards and criteria, and have got ISO9001: 2000 Quality Management system Certification. The fittings and complete machines are in a great demand in 30 provinces, cities and autonomous regions all over China, covering 40% of the domestic market. Meanwhile, our company has independent import and export rights, and our products are exported to many countries and regions like the USA, Europe, Korea, Russia, India, Kazakhstan, Kyrgyzstan, Uzbekistan, Vietnam, Indonesia, etc. Our MINGMEI brand enjoys high popularity in the local area. Our stable, reliable and cost-effective machines and good service help us gain great comments from clients both at home and abroad, and establish a good company image.
With the aim of "compete with good quality and develop with creativity" and the service principle of "take customers' demand as orientation", we will earnestly provide qualified products and good service for domestic and international customers.
