Product Specifications
| Prod Model: |
DTCN |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CE |
| Condition: |
New |
| Type For Cutting Machine: |
CNC Cutting Machine |
| Application: |
Machinery & Hardware |
| Type: |
Pipe and Tube Bending Machine |
| Automation: |
Auto-Equipment |
| Type For Fold-bending Machine: |
Cutting Machines |
| Color: |
as Per Customers' Requirements |
| Optional: |
Foot Switch, Chuck |
| Delivery Time: |
Timely |
Product Description

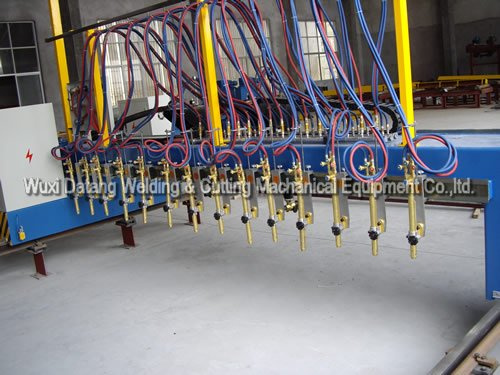

DTCN CNC/flame/plasma cutting machine adopt advanced technology at home and abroad. It is specially designed for metallic structure processing, and it is high- efficient in working. It can cut transversely, longitudinal or at any position of arc curve. It has high precise and little transfiguration. This machine has reasonable structure, easy operated and advanced technics.
This series of cutting machine is of gantry structure. All the structure members are annealed, shot-blasted integrally and painted. Guide-rails on the frame are treated with high-frequency quenching, then ground and paneled together.
The advantage is: Good rigidity, high precision, stable structure and so on. Linear triple-torch, infinite-revolving triple torch and plasma torch can be equipped based on customer requirement. Torch elevation unit is adopted with ball-bearing guide-way, which can elevate automatically or manually. Also auto-ignition function is available. Based on customer choice, tube and cable arrangement can be hanging-type or drag-chain type.
|
Specification |
DTCN-4000 |
DTCN-4500 |
DTCN-5000 |
DTCN-5500 |
DTCN-6000 |
|
Rail distance |
4000 mm |
4500 mm |
5000 mm |
5500 mm |
6000 mm |
|
Cutting width |
3200 mm |
3700 mm |
4200 mm |
4700 mm |
5200 mm |
|
Rail length |
15000 mm (can be designed as required) |
|
Valid cutting length |
12500 mm (can be designed as required) |
|
Cutting speed |
50-1000 mm/min(no grade timing ) |
|
Back speed |
6000 mm/min |
|
Cutting thickness |
6-100 mm(Single cutting torch 100mm) |
|
Cutting precision |
±0.5 m/m |
|
Roughness of surface |
Ra12.5-25 |
|
Cutting gas source |
Oxygen and Acetylene or propane |
|
Power |
Three phase 380V±10%,50Hz,3KVA
|
