Jinan Quanxing Mechanical Equipment Co., Ltd. >> CNC Cutting Router Machine (QX-1325)

CNC Cutting Router Machine (QX-1325)

Name: CNC Cutting Router Machine (QX-1325)
Brand: china-manufacturer-directory.com
SKU: 674132312
Availability: InStock
Rating: 4.7 (103 reviews)

Supplier:	Jinan Quanxing Mechanical Equipment Co., Ltd.
Price:	US $ 4000-10000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	QX-1325
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Qx 1325
Working Area:	1300x2500mm
Controller:	DSP Controller
Software:	Type3
Working Table:	with Vacuum
Tools:	Wood Tools 20PCS
Spindle Cooling:	Water Cooling or Air Cooling
Certificated:	CE FDA
Type:	Wood Process and Matching Equipment
Certification:	CE

Product Description

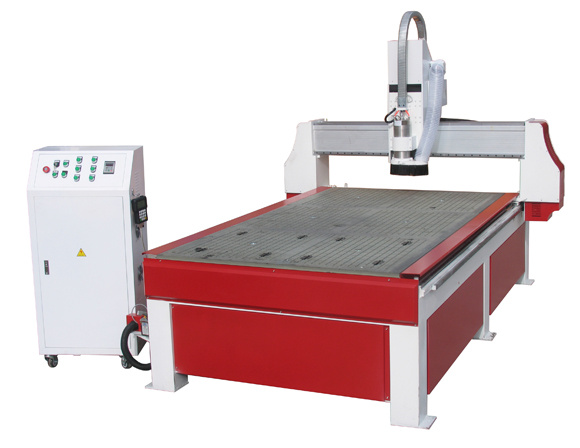

CNC cutting machine with high speed QX-1325
Detailed Product Description
Router machine
1. Have high accuracy and working speed,
2. Can engrave: Metal, glass, wood, marble, plastic, acryl, etc

CNC ENGRAVING MACHINE CE AUTHORIZED PRODUCTS!

Parameters:

Model QX-1325(1300x2500)

Spindle motor
1.5KW, 2.2kw inverter-driven spindle motor cooled by water

Engraving speed
6000 approximately 12000mm / min

Rotation speed of spindle
Approximately 24000 RPM

Engraving tools
3.175, 4, 6mm (optional)

Format dictates
G-code

Ball screw
Two-nut rolling ball screws from Germany

Resolution
0.01mm

High Speed
Synchronization of processing curves and straight lines can be up to speed of 12m / min

Massive Memory Capacity
Standard Capacity of 128MB, Store 20 files simultaneously makes processing at ease.

Quick Data Transmission
USB interface, work without computer, not occupying computer resources

Multi-Compatibility
Be compatible with popular CAD / CAM

Software
Type 3 / Artcam / Casmate / Proe / UG / Artgrave etc.

Easy Operation
Restore from power off, continuation on break points, anticipates working time, User-friendly designing

Accessories:

Spanner× 1, Brush× 1, water pump× 1, Power cord× 1, cutter× 3, software× 1, manual and maintain card× 1

Packing: 1800× 1800× 1400mm

Gross weight: 300kg

OPTIONAL:

* 2.2KW SPINDLE

* DSP OFF-LINE CONTROL(DSP MEMORY IS 128M)

* DUST COLLECTING SYSTEM

* ROTARY DEVICE (dia. 80, 100, 200mm for option )

* FLUME

Applicable to:

Advertising signs, Logos and Brands, Acrylic Letters, part productions, Signs, Tablets Calligraphy, architecture model, embossment, Home and Business Decorations, Gardening decorations Wall decorations

Model	QX-1325
Table size	1480mm*3000mm
Working area	1300mm2500mm (4feet8.2feet)
Resolution ratio	0.025mm
Main axis power	1.5-6KW (Italy air cooled)
Working voltage	AC380V/50Hz
Running speed	60m/min
Main axis speed	6000-24000 revolution/min
Feeding height	200mm
XYZ axis run and orientation precision	0.03/mm
XYZ axis repetition orientation precision	0.03/mm
Capacity index term	Standard value
The running sensitivity of XY	< 0.02mm
Working travel	X axis: 1300mm; Y axis: 2500mm; Z axis: 200-400mm or depends on customers
Working type	Stepper or servo
Machine dimension(LWH)	1.8m3.3m1.5m
Matching principle axis and cullet	3.175.6
Processor	DSP 100MHz
Interface	USB
Outer packing	Wooden box
Machine power(without main axis)	3000W
Gross power	20KW
