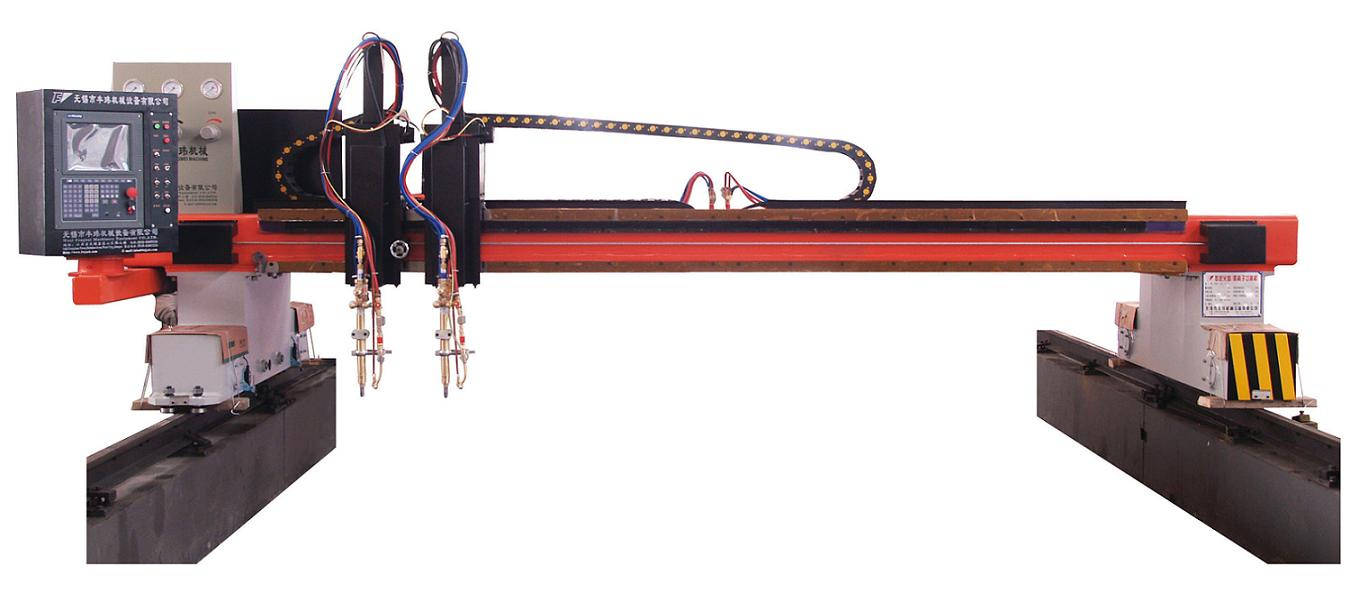

CNC Flame Multi-Head Straight Cutting Machine Series

Name: CNC Flame Multi-Head Straight Cutting Machine Series
Brand: china-manufacturer-directory.com
SKU: 710828625
Availability: InStock
Rating: 4.5 (131 reviews)

Supplier:	Wuxi Fengwei Mechanical Equipment Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	CNC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Eastern Asia,Western Europe
Automation:	Automatic
Type For Cutting Machine:	CNC Cutting Machine
Application:	Machinery & Hardware
Type:	CNC Cutting Machine

Product Description

The product takes the functions of anto-cutting, dusting and lineation, printing, cooling with water, re-cutting, dynamic graphic-tracing display, auto-lifting of cutting torches etc.
The servo controls in closed loop and the gears and racks transmits without gap, with automatic acceleration and deceleration, cutting sequential control, art parameters set-up, kerf-compensation.

Main technicial parameters
Type	Driving form	Track distance(mm)	Effective width(mm)	Cutting thickness(mm)	Cutting speed (mm/min)	Max. speed (mm/min)	Vertical range of the cutting torch
CNC-CG-3000	Single side	3000	2200	6-200(Refer to the performance of the cutting head)	100-750(Refer to the performance of the cutting head))	6000	150
CNC-CG-3500	Single side	3500	2700			6000	150
CNC-CG-4000	Single side	4000	3200			6000	150
CNC-CG-5000	Double side	5000	4200			6000	150
CNC-CG-6000	Double side	6000	5200			6000	150
CNC-CG-7000	Double side	7000	6200			6000	150
CNC-CG-8000	Double side	8000	7200			6000	150
CNC-CG-9000	Double side	9000	8200			6000	150
CNC-CG-10000	Double side	10000	9200			6000	150
CNC-CG-11000	Double side	11000	10200			6000	150
CNC-CG-12000	Double side	12000	11200			6000	150
CNC-CG-13000	Double side	13000	12200			6000	150

Fengwei mainly produces various kinds of welding complete equipment automatically, cutting machines, special equipment and the design, manufacture and markting of other types. We have solid processing strength and modern processing equipment. Our products are full in specification and complete set. Also we can design and produce special equipment according to customer's requirement.

Now our products have been widely use and gained approval in industries as wind power, boiler, pressure vessel, chemical machinery, metallurgical, construction machinery, shipping. etc. Our products have sold to South Asia, Middle East, Europe, etc.
