Product Specifications
Product Description

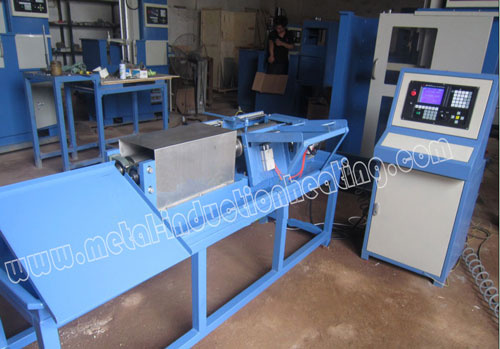

Description of CNC hardening machine tool:
1. The machine uses PC-industrial digital control systems, high performance, debug and easy to use, to the greatest degree of quenching the work piece to meet the complex needs.
2. The machine can achieve quenching mode: Continuous scan quenching, and quenching, sub-continuous scanning quenching (by the level of sub-setting, no limit switch, the same below), while sub-quenching.
3. This machine is suitable for the typical artifacts (in the appropriate size range) axis: a variety of shaft, step shaft, gear shaft, cam shaft, axle, the cylindrical disk-type parts, ends so on.
4. The machine control system for reserve electrical heating and cooling water quenching control interface. According to the requirements of quenching and cooling, the process can be controlled.
5. Low running costs. Just run the work piece drive motor 250W, machine power consumption less than one-fifth of machinery and equipment.
6. The fuselage structure adopts section bar, low cost, light weight, economical and practical.
7. Easy maintenance, low failure rate , no leakage.
8. Highly automated, high production efficiency.
9. Rail uses linear bearings, high precision, small friction, long life.
10. Weight equipment through the sprocket and chain balance weight.
Parameters of CNC hardening machine tool:
| CNC hardening machine tool | LP-SK-600 | LP-SK-1000 | LP-SK-1500 | LP-SK-2000 | LP-SK-2500 |
| Biggest hardening length | 600mm | 1000mm | 1500mm | 2000mm | 2500mm |
| Max tactical diameter | 500mm | 500mm | 500mm | 500mm | 500mm |
| Work-piece move speed | 2-60mm/s | 2-60mm/s | 2-60mm/s | 2-60mm/s | 2-60mm/s |
| Rotation speed | 40-150r/min | 40-150r/min | 30-150r/min | 25-125r/min | 25-125r/min |
| Tip moving speed | 480mm/min | 480mm/min | 480mm/min | 480mm/min | 480mm/min |
| Workpiece weight | 50kgs | 80kgs | 150kgs | 800kgs | 1000kgs |
| Input voltage | 3 phase 380v | 3 phase 380v | 3 phase 380v | 3 phase 380v | 3 phase 380v |
| Totally motor power | 1.1kw | 1.1kw | 1.5kw | 2.0kw | 2.2kw |
| hardening workpiece per time | single/double | single/double | single | single | single |
Applications of CNC hardening machine tool:
1. for various hardware and tools, such as plier, wrench, hammer, screwing tools and shear(orchard shear)
2.for various automobile and motorcycle fittings, such as crankshaft, connecting rod, piston pin, chain wheel, aluminum wheel, valve, rock arm shaft, semi drive shaft, small shaft and fork.
3. for various electric tools, such as gear and axes.
4. for machine tools, such as lathe deck and guide rail.
5. for various hardware metal parts and machined parts, such as shaft, gear chain wheel), cam, chuck and clamp etc.
6. Quenching and tempering for hardware molds, such as small-size mold, mold accessory and inner hole of mold.
7. Annealing of various stainless steel products, such as stainless steel basin, annealed and extruded can, annealed folded edge, annealed sink, stainless steel tube, tableware and cup.
9. Annealing of various other metal work pieces, such as golf ball head, cue, brass lock, hardware copper
