Jiangsu Harmonious Eternity International Trade Co., Ltd. >> CNC Hydralic We67k Series Metal Sheet Bending Machine

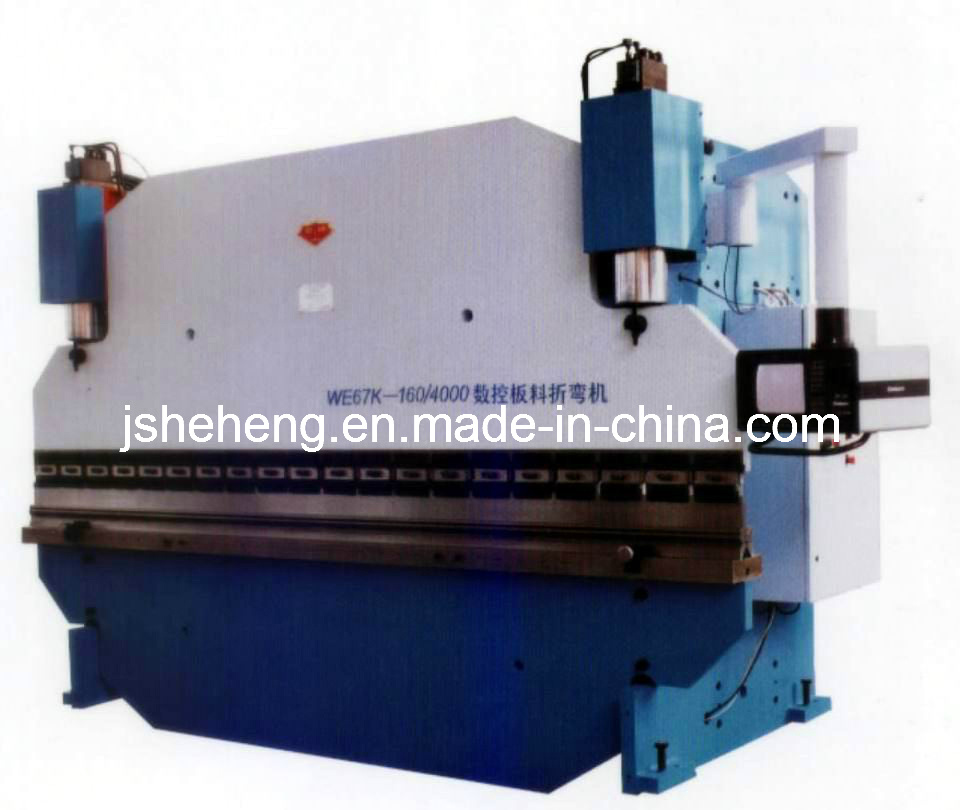

CNC Hydralic We67k Series Metal Sheet Bending Machine

Name: CNC Hydralic We67k Series Metal Sheet Bending Machine
Brand: china-manufacturer-directory.com
SKU: 726401105
Availability: InStock
Rating: 5 (90 reviews)

Supplier:	Jiangsu Harmonious Eternity International Trade Co., Ltd.
Price:	US $ 10000-1000000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	WE67K series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Automation:	Automatic
Type For Fold-bending Machine:	Manual Fold-bend Machine
Application:	Sheet Matel
Type:	Press Brake

Product Description

Product Description WE67K CNC Press Brake, Hydraulic Press Brake, CNC Press Brake Bending Machine, Press Brake Machine, CNC bending machine, Hydraulic press, CNC bender machine Synchronization The electric-hydraulic servo system can control the synchronization of cylinders for our WE67K Hydraulic CNC bending machine, hydraulic Press Brake, CNC Bender. Combined with optical curtain of international standard, the fully closed loop control is formed with high bending and repetitive positioning accuracy. Compensation The CNC cylinder deflection auto compensation system helps to prevent the deformed sliding block from affecting the workpiece quality and ensure its good linearity and bending angle WE67K Hydraulic CNC bending machine, hydraulic Press Brake, CNC Bender. The compensation ID adjusted automatically by the CNC system, both convenient and accurate. Feeding System There can be 6 axels when equipped the inward CNC system. Hydraulic System The hydraulic adopts the integrated, which helps to reduce piping connection, eliminate oil leakage, improve the work stability, and beautify the machine appearance, the inner engaged gear pump manufactured by a famous Germany company is used to reduce the system noise and extend the service life. Tooling The die sections have different lengths, which can be combined with a certain width to meet the processing requirements of special work pieces. Options The punch quick clamping and insert type die can be made based on the customers' requirement to reduce and improve productivity. WE67K CNC Press Brake, Hydraulic Press Brake, CNC Press Brake Bending Machine, Press Brake Machine, CNC bending machine, Hydraulic press, CNC bender machine

NO	Press brake Model	Pressure KN	Table Length mm	Uprights Distance mm	Open Height mm	Throat Depth mm	Ram Stroke mm	Power KW	Dimension
1	WE67K-63T/2500	630	2500	2050	235	250	120	5.5	260013602050
2	WE67K -100T/3200	1000	3200	2500	330	320	150	7.5	330014002380
3	WE67K -125T/3200	1250	3200	2500	330	320	150	7.5	330014002380
4	WE67K -160T/3200	1600	3200	2500	400	320	200	11	330015502580
5	WE67K -200T/3200	2000	3200	2500	400	320	200	15	330016502930
6	WE67K -200T/6000	2000	6000	4800	400	320	200	15	610017503360
7	WE67K -250T/3200	2500	3200	2500	435	320	200	18.5	330017503070
8	WE67K -250T/4000	2500	4000	3100	435	320	200	18.5	410017503070
9	WE67K -300T/3200	3000	3200	2600	435	350	200	22	330018503040
10	WE67K -300T/4000	3000	4000	3200	435	350	200	22	410018503285
11	WE67K -300T/6000	3000	6000	4800	435	350	200	22	610019503540
12	WE67K -400T/3200	4000	3200	2600	520	400	250	37	330020003230
13	WE67K -400T/4000	4000	4000	3200	520	400	250	37	410020003540
14	WE67K -500T/4000	5000	4000	3100	600	400	300	45	410024003710
15	WE67K -500T/6000	5000	6000	4800	600	400	300	45	610025004100
16	WE67K -600T/4000	6000	4000	3100	600	400	300	45	410026503750
17	WE67K -600T/5000	6000	5000	4100	600	400	300	45	510026003970
18	WE67K -700T/4000	7000	4000	3100	640	500	300	55	410028503970
19	WE67K -700T/7000	7000	7000	5600	640	500	300	55	710028504650
20	WE67K -800T/5000	8000	5000	4000	800	500	400	2*37	510032004600
21	WE67K -800T/6000	8000	6000	4800	800	500	400	2*37	610026004800
22	WE67K-1000T/6000	10000	6000	4800	800	600	400	2*45	610035005100
23	WE67K-1200T/5000	12000	5000	4000	900	600	400	2*45	510038005250
24	WE67K-1600T/8000	16000	8000	6200	900	600	400	2*55	810042006450
25	WE67K-2000T/10000	20000	10000	7800	920	600	400	2*55	1010048007200

Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
