CNC Hydraulic Press Brake (ZYB - 63T / 3200) / Hydraulic Bending Machine / Machine Tool with CE and ISO9001 Certification

Name: CNC Hydraulic Press Brake (ZYB - 63T / 3200) / Hydraulic Bending Machine / Machine Tool with CE and ISO9001 Certification
Brand: china-manufacturer-directory.com
SKU: 668136375
Availability: InStock
Rating: 4.6 (133 reviews)

Supplier:	Maanshan Middle Asia Machine Tools Manufacture Co., Ltd.
Price:	US $ 55000-150000USD
Min Order:	1Set
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	ZYB-63T/3200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Hydraulics:	Germany Bosch
Servo Drive And Motors:	Nanjing Estun
Ball Screw And Linear Guide:	Taiwan Hivin

Product Description

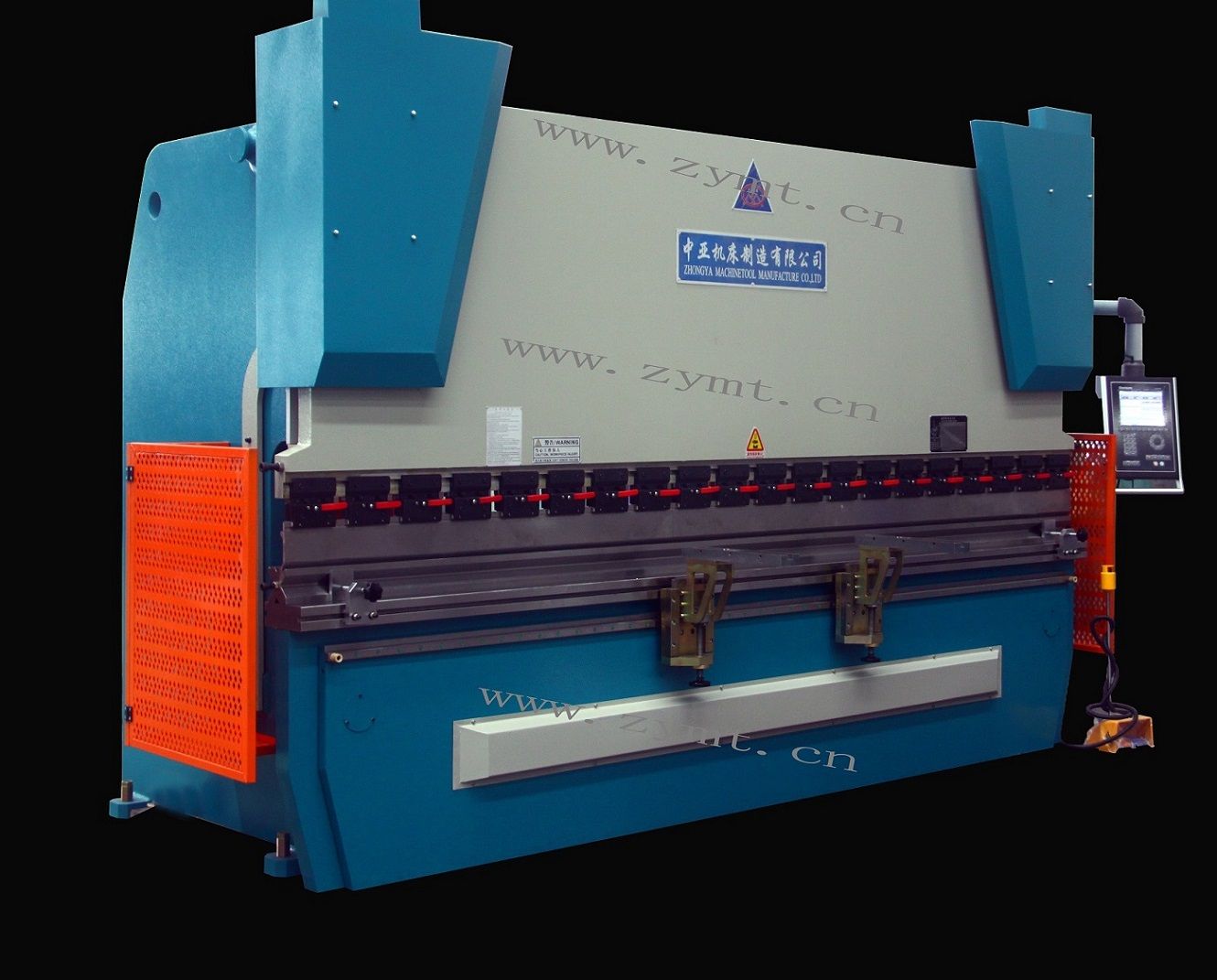

ZYB series CNC synchronization press brake
Standard equipments
1:hydraulics by Germany BOSCH/Hoerbiger
2:servo drive and motors by Nanjing ESTUN

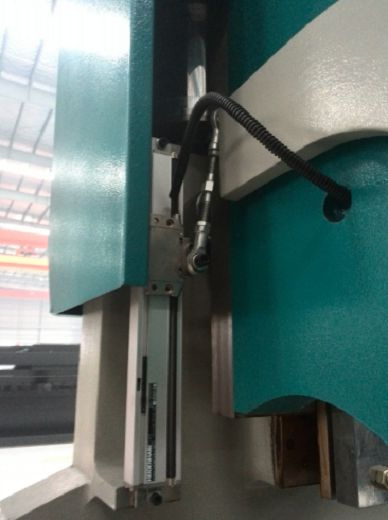

3:grating ruler by Germany Hoerbiger/Italy Givi
4:ball screw and linear guide by Taiwan Hivin
5:main electrics by French Schneider

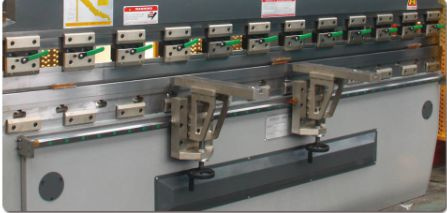

6:manual adjustable front support with linear

Features
1:overall welded and processed structure
2:closed loop control mode composed by electric-hydraulic servo valve and measure ruler
3:ensure the highest control position, bending accuracy and repositioning accuracy are also reach to the highest level
4:back gauge mechanism can be multi-axes controlled
5:intergrated hydraulic system decreases the pipe connections, oil leakage, and increases the stability and overall beautifies.
6:worktable equipped with hydraulic and mechanical compensation to avoid the deformed upper beam from affecting the quality of the work piece, it is adjusted automatically by the CNC controller with convenient accuracy.
7:CNC controller normally uses Holland Delem, Italy ESA,Swiss Cybelec, all with multi-languages.

parameter

Model (ZYB-)	63T /2500	100T /3200	125T /3200	160T /3200	200T /3200	250T /3200	300T /320	400T /4000	500T /6000	600T /6000	800T /6000	800T /8000	1000T /6000	1000T /8000	1000T /1000
Nominal force(KN)	630	1000	1250	1600	2000	2500	3000	4000	5000	6000	8000	8000	10000	10000	10000
Bending length(mm)	2500	3200	3200	3200	3200	3200	3200	4000	5000	6000	6000	8000	6000	8000	10000
Vertical distance(mm)	1900	2700	2700	2700	2700	2700	2700	3500	4900	4900	4900	5900	4900	6900	8000
Throat depth(mm)	350	400	400	400	400	400	400	400	500	500	600	600	600	600	600
Stroke (mm)	170	200	200	200	200	200	200	320	320	320	400	400	400	400	400
Max. opening(mm)	380	420	420	420	420	420	420	420	600	600	600	600	600	600	600
Main power(KN)	5.5	7.5	11	11	15	15	22	30	37	45	55	55	2*37	2*37	2*37
Axes	3+1(Y1,Y2,X,V)
Compensation	Hydraulic compensation								Motorized compensation
X-travel(mm)	500								800
X-speed	200mm/s
Overall length(mm)	3100	3500	3500	3500	3500	3500	3500	4500	6500	6500	6500	8500	6500	8500	10500
Overall width(mm)	1450	1580	1580	1650	1680	1700	1800	2450	2810	2910	2950	2950	3000	3000	3000
Overall height(mm)	2050	2400	2400	2500	2550	2600	2730	3500	4500	5100	5300	5900	5600	6100	5850
Approximate weight(ton)	5.8	8.5	9.5	11	14	15.5	16.8	31	53	68	90	120	100	130	150

Optional
Front support
Double linear guide

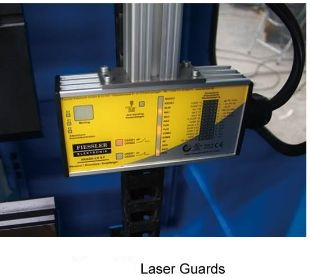

Laser guards
Light guards
Multi-axes back gauge mechanism

Main components of ZYB model:
(Standard)
1. Control System: DELEM DA52S
2. Servo motor and drive: Estun China
3. Hydraulic System: HOERBGER /
BOSCH Germany
4. Ball bearing lead screw:
Taiwan HIWIN
5. Straight-line guide:
Taiwan HIWIN
6. Connector: Germany EMB
7. Seal ring: Germany FIETZ or
Japanese VALQUA
8. Raster Ruler: Heidemhain Germany
9. Main electrical elements:
TE/OMROM/SIEMENS
10. Standard axes: Y 1 , Y 2 , X and V( V
for crowing table)

Our service
1:established over 100 sales and service outlets in the country's 29 provinces, municipalities and also the establishment of foreign 72 sales points, machine sales, spare parts supply, maintenance, technical advice and a range of services for users at hone and abroad.
2:we have a specialized group in charge of the whole business process. pre-sales to be a staff, the sales is a friend, and after-sales we are partners.

You can contact me via
Tel:+86 0555 3708 680/+86 157 5555 6691
Address: High-tech Industrial Development Zone, Bowang town, Bowang district, Maansh, Anhui
Liaison:Bella

Ma'anshan Middle Asia Machine Tools Manufacture Co., Ltd. (which Chinese name is ZhongYa Machine Tool Factory and also the head office located in Ma'anshan City Anhui Province) is a specialized company for making forged and pressed series of products designated by the Ministry of Machinery, having been certified with GB/T9001: 2000 International standard.

Based on elite equipment, advanced technology and first-class managment, making Normal and CNC Press Brake, Shearring machine, Turret Punching machine and Roll Bending machine.

Its registered capital is RMB 32million, the total capital more than 102million, and the factory is located in Bowang Town, in the suburb of Nanjing and the eastern suburb of Maanshan, with developed transportation. It's only 30km due to Lukou International Airport of Nanjing Jiangsu, and high speed way close to Shanghai.

We promise to give you outstanding customer service. Customers continue to do business with us because of our great prices and nice machines. We understand that you want value for your money, and a happy customer will be a future customer.

Our products have been sold to American, Italy, Germany, Mexico, Singapore, Malaysia, Vietnam, Bahrain, Pakistan, Brazil, Spain, etc.
