Product Specifications
| Prod Model: |

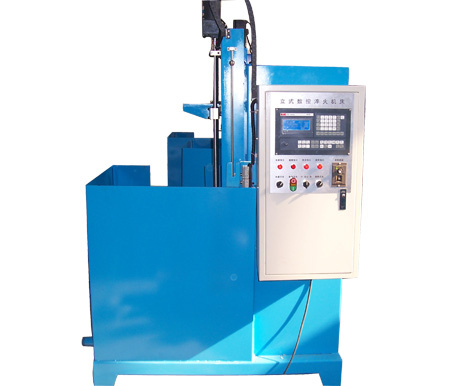

CNC hardening machine tool |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Maximum clamping parts length: 600mm
Maximum quenching length: 600mm
Work piece speed: 60-650r / min
Max workpiece weight: 100kg
Quenching feed speed: 6-3000mm / min
Workpiece fast: 4000mm/min
Machine tool positioning accuracy: 0.03mm
Overall dimensions: Length 1100 × Width 700 × Height 1800
Quenching mode: Continuous scan hardening; Timed quenching; Segmented scan hardening;
Quenching speed adjustment: Stepless
Feed drive: Standard stepper, servo optional
Machine control: CNC automatic control
Machine operation modes: Automatic and manual along with
CNC system: Domestic brand
Workpiece speed: Step less
Cooling control: CNC automatic control system
Heating control: CNC automatic control system, to achieve linkage
Mechanical Configuration:
Aall screw, CNC cutting machine tools, the overall order, good quality and high precision;
Rail use linear bearings, high precision, low friction, long life;
Lifting part through the sprocket chain balancing weight, counterweight to casting weights;
Quench tank completely sealed with spray baffle;
Standard shroud for the cold plate Q235, stainless steel guard is optional
Qingdao My Induction Co., Ltd is a manufacturer of induction heating equipments with CE. There are more than 50 types induction heating equipments.
Including:
1. Medium frequency induction heating equipment. (water cooling) (1-20kHz)
2. High frequency induction heating equipment. (water cooling) (20-100kHz)
3. Ultra high frequency induction heating equipment. (water cooling) (100kHz-1.1MHz)
4. Induction preheating of weld and postweld heating treatment equipment. (Air cooling) (3kHz-15kHz)
5. Induction barrel heating for energy saving of injection molding machine. (Air cooling)(15kHz-40kHz)
6. And so on
Our induction heating equipments are widely used for metal heating treatment, such as: Brazing, hardening, annealing, tempering, quenching, shrink fitting, forging, melting and so on.
Please feel free to write us for more details.
