Product Specifications

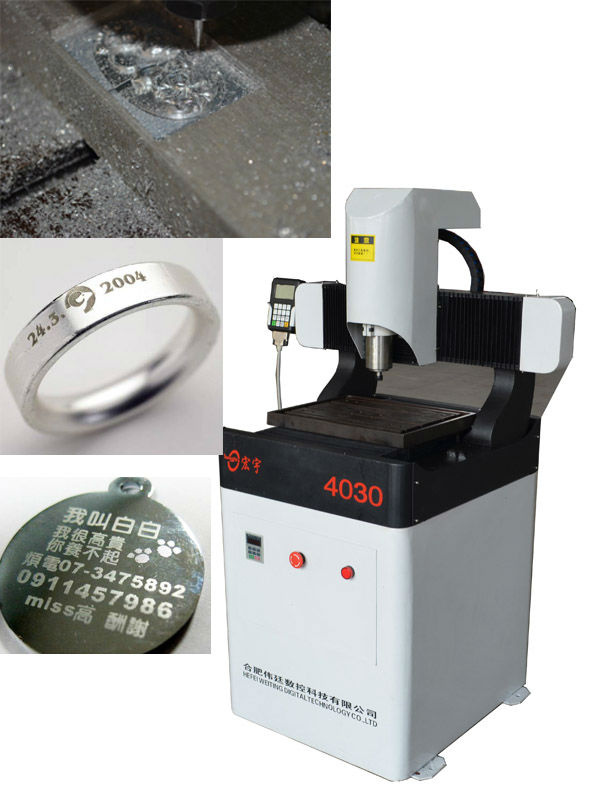

| Prod Model: |
JD-4030 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: |
CNC Engraving Machine |
| Power: |
Small Power |
| Drive Type: |
Stepper Drive |
| Certification: |
CE, ISO 9001 |
| Control: |
CNC |
| Condition: |
New |
| Usage: |
Jade, Jewellry, Soft Metal, Shoes Mould etc. |
Product Description
Technical data/Specipications:
Model Number JD-3025 JD-4030
Machine dimensions(mm) 700*550*1300 800*650*1300
X,Y working area(mm) 300*250 400*300
Feeding height standard configuration 100mm
Max travel speed 5000mm/min
Max engraving speed 5000mm/min
Repositioning precision 0.001mm
Transmission XYZ axis- linear guideway+ imported ball screw rods
Power of spindle 800w 800w or 1.5Kw
Spindle Rotation speed 6000-24000rmp/min
Drive motor stepper
Working voltage AC 220V, 50HZ
Cutter shank size φ3.175,φ4,φ6,mm
Support command language G code/HPGL
Table surface type nodular cast iron
Features:
1. The whole casting structure keeps good stability and high precision during long-term use.
2. 800w water-cooling motor with frequency conversion is used for spindle to ensure the long-term and stable running.
3. The centralized oiling and lubricating system is equipped as standard with easy operation and collective oil supply, greatly extending the service life of the tool parts. reducing the maintenance cost and difficulty of the machine.
4.Imported Taiwan PMI square linear guideway with double ball sliders for X,Y and Z axis to ensure working stability and the ability to bear heavy material.
5.Imported Taiwan TBI ball screw rod for X,Y and Z axis to ensure precision carving.
6.YAKO-DSP High subdivision drive motor, higher precision, better processing performance with curve.
7.Compatible with any advanced CAM software, such as Type3/Artcam/CAXA/Proe/UG/Artcut/Mastercam.
8. Equipped with the high-torque spindle motors and high-performance inverter, making the machine stable operateion with low noise, high speed and high precision.
9. Using water-cooling spindle, high precision,low temperature, long life,smooth operation,long woking is stable and reliable.
10.The high flexible shielding tool cables mainly used for the CNC tool YC are used for the whole machine and the times of reciprocating motion can reach 8 million.
Applications:
1. Jade engraving, artwares like jade pendant, jadeite, buddha etc.
2. Soft metal engraving of mock up mould, shoes mould, red copper electrode and aluminum crafts
3. Advertising signs, nameplates, badges, stamper, hot stamping plate, indentation plate, signs, architectural models, instrument panel, carpentry products, industrial molds and other products processing and production.
