Product Specifications
| Prod Model: |
PL-CNCLAF |
| Automation: |
Automatic |
| Type For Fold-bending Machine: |
CNC Fold-bend Machine |
| Type For Cutting Machine: |
Laser Cutting Machine |
Product Description

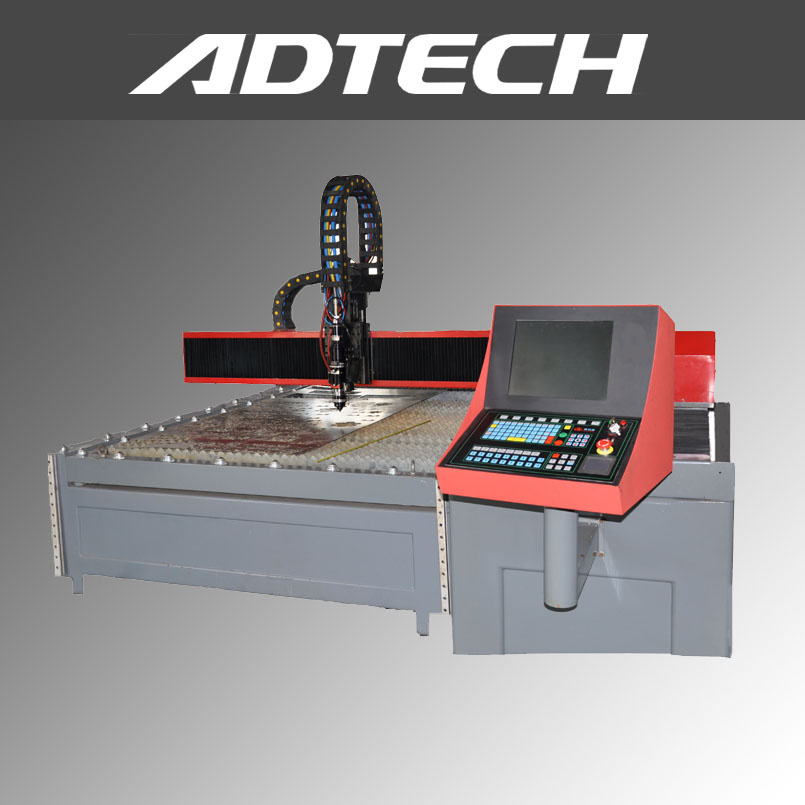

PL-CNCLAF series Fiber laser cutting machine adopt gantry frame. X/Y/Z axis use important linear guide and high precision gear and rack transmission, Z-axis use import linear guide and high precision ball screw transmission, machine adopt best cutting NC system and high precision servo control unit to achieve high effect and high precision cutting control.
Fiber Laser power adopt the newest fiber optic laser transport technology.
CNC laser cutting machine features:
The laser beam is guided in a glass fiber from resonator to the cutting head.
The emitter dioes have long lives (over 50000 hours).
Don't need maintenance the optical path (there is not traditional laser flight optical path ).
High conversion efficiency (conversion efficiency is double or triple of CO2 laser ).
Easy installation and maintenance.
High effective, economic and stability.
Technical data:
Working area: 3000mm*15000mm
Speed: 80m/min
Positioning accuracy: ± 0.05mm/m
Repeatability: ± 0.01mm
Laser power: 1200W
Cutting thickness: MS: 12mm, Max
SS: 4mm, Max
Laser power decision cutting thickness, different power cutting different thickness.
