CNC Lathe Machine

Product Specifications

Prod Model:	QK1350
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Swing Over Bed (Mm):	Od 1200
Swing Over Carriage (Mm):	Od 710
Width Of Bed:	755 Mm
Type:	Multi-Axis Automatic and Semi-Automatic Lathe
Automatic Grade:	Automatic
Precision:	High Precision
Power Source:	Electric
Setting Mode:	Table
Controlling Mode:	CNC
Processing Accessory:	Chuck CNC Lathe
Tool Holder:	Double-tool Holder CNC Lathe

Product Description

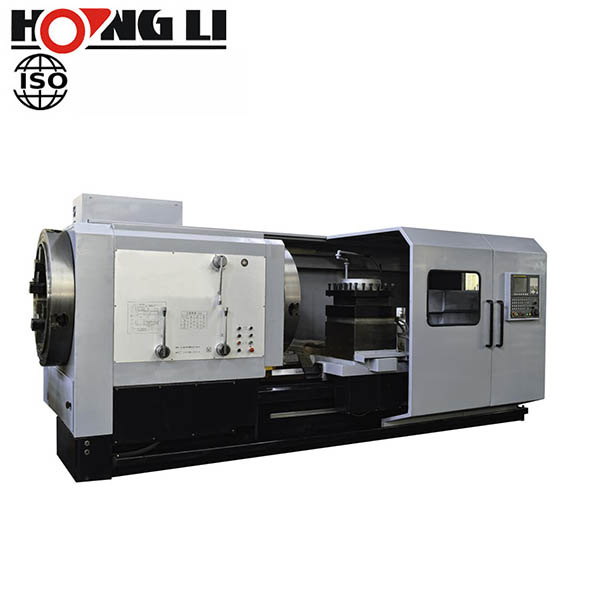

Pipe Threading Lathe Machine

The CNC pipe threading lathe machine SK1350 is mainly used for processing inner and outer pipe thread, metric thread and inch thread, and can also undertake various turning works such as turning inner and outer cylindrical surface, conical surface and other revolution and end surface as general CNC lathes.

Specification Data:


TEMS	Lathe Model:   QK1350
Max. Dia. swing over bed (mm)	Φ1200
Max. Dia. swing over cross   slide (mm)	Φ710
Range of processing pipe   thread (mm)	Φ330-510
Max length of workpiece (mm)	1700
Width of bed (mm)	755
Spindle bore (mm)	Φ520
Main motor power (kw)	22/37
Steps and range of spindle   speed (r/min)	Manual: 9 steps/ 6-205r/min Frequency conversion: 3 steps 10-60r/min & 60-100r/min   & 100-200r/min
Feed volume and pitch (mm)	0.001-40
Max stroke/traverse of X/Z   (mm)	X: 500 Z: 1250
Rapid moving speed on X/Z (mm/min)	4000
X/Z servo motor power (kw/Nm)	X: 2.3/15 & Z: 4.7/30
Positioning accuracy (mm)	0.020
Repositioning accuracy (mm)	0.010
Diameter and taper of   tailstock quill (mm/mores)	Φ140/m6#
Stroke/traverse of   tailstock quill (mm)	300
Transverse   movement of tailstock (mm)	±25
CNC system	Standard equipment:Fanuc   Oi Mate (Optional: GSK980TDC / Siemens 808D/ KND K1000Ti)
Size of tool section (mm)	40×40
Overall dimensions (L×W×H)   (mm)	5000×2200×2200
Net weight (kg)	15000


Packing and shipping


Payment	Payment Term	T/T  L/C  Western Union Paypal(etc)
Shipping	Delivery Time	7-30 days
	Shipping Method	By Courier such as Fedex, TNT, DHL etc By sea or air freight according to your request
	Port	Shanghai/Ningbo/Other port
	Shipment Term	FOB/CIF/CFR/EXW
Packing	NW	15000 kg
	Dimension	5000*2200*1750mm
	Material	Plywood case





Our big families :
  Hongli is a company that brings together technology and engineering to provide innovative solutions for our customers in the range of pipe machinery. Hangzhou Guanba Machinery Import & Export Co., Ltd is our sister company. Our priorityis to design, produce and deliver products and solutions that make your job been done easily.

    Our company has been in business since 1986. We have grown to become one of leading manufacturing companies in China with many customers around the globe. Today, we are committed to helping our customers succeed and building long-term value in the global market.


FAQ
Q1.:What's your type of payment?
Paypal, TT, Western Union are all acceptable payment terms. According to your specific
circumstances, you can choose the most suitable payment terms

Q2.May i have a inspection?
 In order to ensure the interests of both sides, we support buyer or third party to inspect
 the goods at our factory before shipment, the third party should be entrusted by
buyer. We also will arrange self-inspection and send the photos to buyer before shipment.

Q3.What's your transportation?
We support to arrange delivery to buyer's destination by Air, by Sea, or Express.
We normally send goods from Shanghai or Ningbo. If from other port, we will charge
for logistic fee, the cost is depends on the delivery distance.
We suggest buyer to make insurance for goods, to avoid any loss in transportation.
