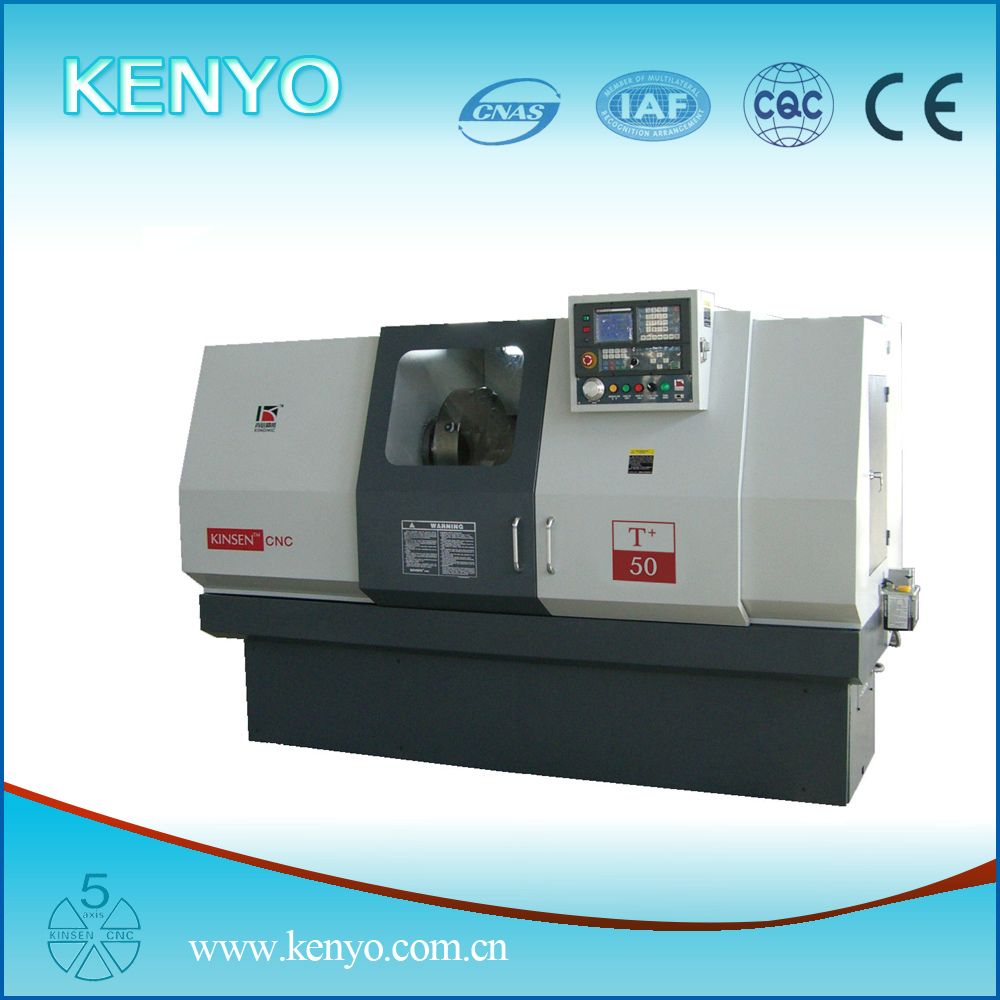

CNC Lathe Turning Machine/Cutting Tool (T50-K)
| Price: |
US $ 1-12000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Feature1, high precision and quick movement
2. Operation smooth, easy to operation and maintain,
3. Layout reasonable, compact structure
| Model | T50 | Unit |
| Max. swing ober bed | 500 | mm |
| Max. swing over carriage | 300 | mm |
| Width of guide way | 390 | mm |
| Top distance | 750/1000/1500/2000 | mm |
| Max machining diameter over Z axis slider | 500 | mm |
| Max machining diameter over X axis slider | 400 | mm |
| X axis travel | 260 | mm |
| Z axis travel | 500/750/1000/1500/2000 | mm |
| Material on Z guide way | PTFE |
|
| Screw type | 2505/4010 |
|
| Torque of X/Z axis motor | 10 | mm/min |
| X/Z axis rapid traverse speed | 4. /8 | m/min |
| Spindle speed | 2000 | rpm |
| Spindle bearing | HRB/NSK |
|
| Spindle nose | D8 |
|
| main motor power | 7.5 | Kw |
| Chuck diameter | Ø 250 | mm |
| Spindle bore diameter and inner taper | Ø 82/90 1: 20 | mm |
| No. of tool stations | 4 station |
|
| Size of tool shank | 25× 25 | mm |
| Taper of tailstock quill | 75 | mm |
| Taper of tailstock quill | MT5 |
|
| Positioning accuracy | ± 0.01 | mm |
| Repeatability | ± 0.005 | mm |
| Ovality diameter | 0.01 |
|
| Roughness | Ra≤ 1.6 |
|
Our CompanyNanjing Kenyo Precision Machine Manufacture Co., Ltd. is a high-tech precision machien manufacture company with almost 20 years of experience, specializing in CNC vertical / horizontal machine center, CNC five axis control machine center, CNC milling machine, CNC vertical milling machine, CNC gantry milling machine, CNC lathe / CNC turning machine, CNC controller industrial robot arms, 3D printer machine. Moreover, we also process car parts with our machine for many famous car manufacturer.
Trade Show

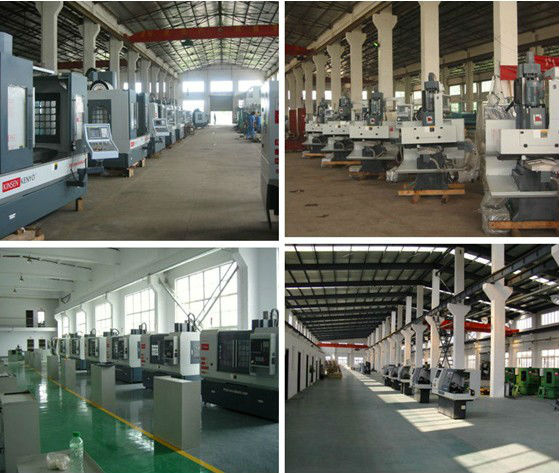

Our Factory:
| Prod Model: |
T 50-K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Process Usage: |
Metal-Cutting CNC Machine Tools |
| Movement Method: |
Contour Control |
| Control Method: |
Semi-Closed Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
Economical CNC Machine Tools |
| Processing Precision: |
0.02 |
Nanjing Kenyo Precision Machine Manufacture Co., Ltd is a high-tech enterprise, supplying high-end CNC machines in the last few years. The company locates in Guabu CNC industrial park, LUHE district, Nanjing City, Jiangsu Province, China, and consists of eco-friendly production workshops, R&D center, worker apartment buildings, and modern office buildings. The company occupies 45 acres land, including 16000 sqm for manufacturing area.
Nanjing Kenyo company being dedicated in innovative researches and development, specializes in manufacturing CNC Machine, CNC Milling Machine, CNC Machining Center, CNC Lathe, CNC Turning Machine, 5 Axis CNC Machining Center, Industrial Robot Arms...
In 2011, Nanjing Kenyo enterprise established engineering R&D center for Nanjing Municipal Vertical-Horizontal Hybrid Machining Center, as well as Jiangsu Province post-graduates' workstation in enterprises by cooperating with a very famous science and technology univerisity in Nanjing named "Nanjing Southeast University".
In 2012, the enterprise acquired ISO9001 issued by CQC, Jiangsu Province Export Product Quality Assurance Certificate, and CE certificate.
On January13, 2015, Nanjing Kenyo enterprise successfully listed in Beijing stock exchange"New Three Borad", and the security code is"831883".
Keeping building high-quality brand, Nanjing Kenyo enterprise owns a research team, who has core technology and independent knowledge. In the year of 2011, VS1580 five- axis machining center was awarded with the title "Jiangsu Province First key Product". In 2012, VS855 column-moving five-axis machining center was listed in "Nanjing Science and Technology Project".
Nanjing Kenyo enterprise sets sales offices in Beijing, Tianjin, Shanghai, Chongqing, Guangzhou these five very developed cities in China, and the CNC machines are used in military field, aviation field, aerospace field and wind energy field. In addition, Nanjing Kenyo enterprise has exported machines to foreign markets, such as America, Austrilia, Russia, Indonesia, Middle East countries, Dubai, Philippines, New Zealand, Africa, Turkey, and other countries in Europe.
Each year, we take part in "Beijing / Shanghai International Machine Tool Exhibition", which is the most important machine exhibition in China in the whole year. Moreover, we take part in certain global machine exhibitions, such as the machine exibition held in Indonesia, since we have office there, and we export our CNC machines mainly to markets in Indonesia.
Since eatablished, Nanjing Kenyo enterprise adheres to the scientific development concept, and gains its own concept "Business-first, people-oriented, credit-based" during its development. For the time being, Nanjing Kenyo Precision Machine Manufacture Co., Ltd owns 29 patents and 2 software copyrights. We keeps supplying high quality CNC machines, and we offer very competitive factory. More and more, we have a very efficient after service group, who will answer your questions promptly and help solve your problems in 48 hours. If our customers need very professional technicial support, we can send our engineers to help them solve problems.
If you have more questions, please feel free to ask. We would be very glad to serve you.
