Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |

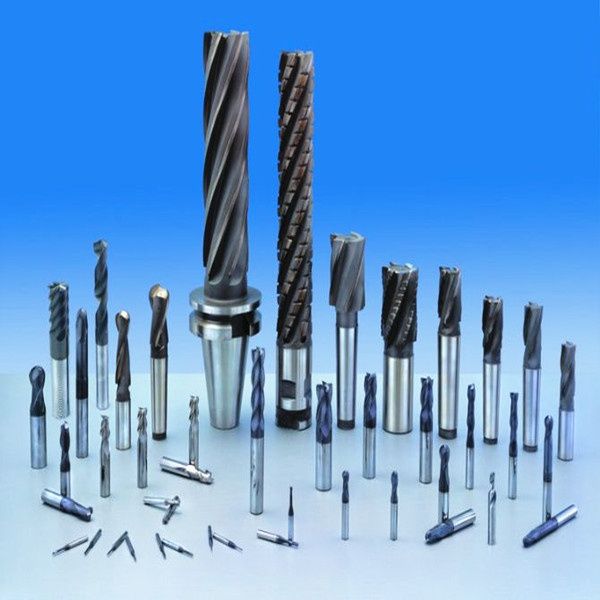

CNC Lather Tool Set Solid Carbide Metric Spiral Fl |
| Material: |
HSS |
| Application: |
CNC Lather Cutter Tool |
| Service: |
OEM/ODM Standard |
| Original: |
Shandong,China |
Product Description
SS drill bits fully ground milled rolled forged for drilling metal and stainless steel
1.Size: straight shank: 0.2mm-20mm
reducud shank: 8.5mm-30mm
taper shank: 5mm-100mm
2.Material : HSSM35,M2(6542),9341,4341,4241
3.Process : Fully ground, milled, rolled forged, edge ground
4.Surface treatment: Brigh finish, black,tin-coated,amber
5.Point angle: 118 or 135split point
6.Hardness: 63-66HRC
7.Application: alloy steel, unalloyed Steel, iron, cast iron, non-ferrous metals
8.Noamal package:10/5 pcs in plastic bag,then in paper box,then in carton box. Special package:packed in plastic box or in blister card or in skin card etc.,according to customer's requirement
9. Delivery time: 45days after S/C confirmation
10.Payment: 20% T/T prepayment or 80% T/T after copy of BL or L/C at sight
| D | L1 | L2 | D | L1 | L2 |
| 1 | 34 | 12 | 11 | 142 | 94 |
| 2 | 49 | 24 | 12 | 151 | 101 |
| 3 | 61 | 33 | 13 | 151 | 101 |
| 4 | 75 | 43 | 14 | 160 | 108 |
| 5 | 86 | 52 | 15 | 169 | 108 |
| 6 | 93 | 57 | 16 | 178 | 120 |
| 7 | 109 | 69 | 17 | 184 | 125 |
| 8 | 117 | 75 | 18 | 191 | 130 |
| 9 | 125 | 81 | 19 | 198 | 135 |
| 10 | 133 | 87 | 20 | 205 | 140 |
| Diameter:mm | working length | overall length | Diameter:mm | working length | overall length |
| 1 | 33 | 56 | 7 | 102 | 156 |
| 1.5 | 45 | 70 | 7.5 | 102 | 156 |
| 2 | 56 | 85 | 8 | 109 | 165 |
| 2.5 | 62 | 95 | 8.5 | 109 | 165 |
| 3 | 66 | 100 | 9 | 115 | 175 |
| 3.2 | 69 | 106 | 9.5 | 115 | 175 |
| 3.5 | 73 | 112 | 10 | 121 | 184 |
| 4 | 78 | 119 | 10.5 | 121 | 184 |
| 4.5 | 82 | 126 | 11 | 128 | 195 |
| 4.8 | 87 | 132 | 11.5 | 128 | 195 |
| 5 | 87 | 132 | 12 | 134 | 205 |
| 5.5 | 91 | 139 | 12.5 | 134 | 205 |
| 6 | 91 | 139 | 13 | 134 | 205 |
| 6.5 | 97 | 148 |
|
|
|
WeiFang Shengao Machinery Co., Ltd is located in WeiFang the famous city in China and the world center of kites. It is 140 kilometers far away from Qingdao port, the transporation is very convenient. Our company use the location advantages of ShanDong province to integrate resources so that we can processing according to the drawings of customers. We mainly undertake the casting parts, machined parts and other products. Our Import and Export Department have many years experiences of foreign trade, products are mainly exported to the United States, Denmark, Italy, Russia, Australia etc.
Over the years, company adhere to the guideline for management of "Quality first, Reputation first, Delivery just-in-time, Price best". We will try our best to improve the technical level and perfect the enterprise management. Our company will depend on superior quality of products and sincere service to cooperate with dometic and overseas, new and old customers and establish eternal friendship to create a bright future.
