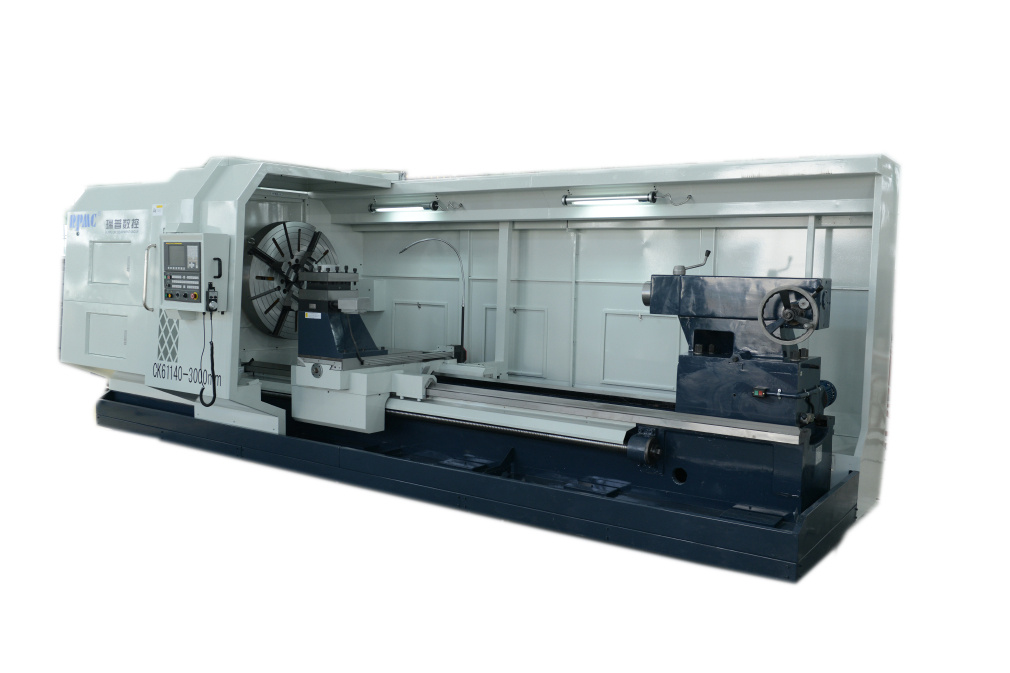

CNC Machine Tool Ck61140f
Product Specifications
| Prod Model: |
CK61140F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Horizontal Lathe |
| Automatic Grade: |
Automatic |
| Precision: |
Precision |
| Power Source: |
Electric |
| Setting Mode: |
Floor-type |
| Controlling Mode: |
CNC |
| Processing Accessory: |
Chuck CNC Lathe |
| Tool Holder: |
Single-tool Holder CNC Lathe |
Product Description
Products of this series adopt horizontal flat lathe with whole bed casting structure, lathe bed, lathe head, lathe saddles, lathe legs and other basic parts are all cast with resin sand, valid artificial treatment makes the whole lathe with good stability;
· Guide rail of lathe adopts supersonic quenching, rail joint surface of the saddle and sliding plate adopts "laminating" handling, removable parts make it possible for micro feed to avoid creeping;
· Spindle adopts three-point design, high turning precision, good vibration resistance, higher cutting performance, and the main drive adopts four gears to change speed and no grade to change frequency, with features of low speed with high torque;
· Reasonable match has been conducted for the rigidity of the bed, spindle and tailstock and other key parts, which greatly improves the rigidity of the machine, and makes sure the stability in heavy cutting;
· Lathes of this series can be applied in shaft and plate parts processing, and can automatically cut thread, arc, cone, inner and outer curved surfaces of the revolving body and other processes;
· Widely used in ships, locomotives, aerospace, military, metallurgy and other industries for efficient, high-volume and high-precision machining
|
Item |
Lathe specifications |
CK61140 |
|
Technical specification |
Max. tactical diameter of the lathe' s body (mm) |
1400 |
|
|
Max. tactical diameter of work-piece on the sliding plate (mm) |
1000 |
|
|
Max. length (mm) |
3000-10000 |
|
|
Guide rail of lathe span (mm) |
755 |
|
Main drive |
Form |
Four gears to change speed, no grade to change frequency |
|
|
Spindle speeds series |
Four grade |
|
|
Max. spindle speed |
5-400r/min |
|
|
Terminal structure |
A2-15 |
|
|
Hole diameter of spindle |
130 |
|
|
Spindle hole fore-end taper |
Metric 140 1: 20 |
|
|
Model of main motor |
YVP180L-4-22KW |
|
Feeding system |
Max. route of knife rest (mm) |
X: 560 |
|
|
Ball-screw diameter*pitch (mm) |
X: 5008 Z: 8012 |
|
|
Speed of quick-travel (mm/min) |
X: 4000 Z: 6000 |
|
|
Setting accuracy (mm) |
X: 0.03 Z: 0.05 |
|
|
Resetting accuracy (mm) |
X: 0.012 Z: 0.02 |
|
|
precision of work piece |
IT7 |
|
|
Surface roughness |
Ra3.2 |
|
Tailstock |
Sleeve diameter of tailstock (mm) |
160 |
|
|
Sleeve trip of tailstock (mm) |
300 |
|
|
Cone hole taper tailstock' s sleeve |
Morse6# |
|
Knife rest |
Standard configuration |
Four-station vertical electric al knife rest |
|
|
Alternative configuration |
Six-station horizontal electric al knife rest |
|
|
Resetting accuracy (mm) |
0.01 |
|
|
Length of section of knife handle (mm) |
45× 45 |
|
Control system |
Standard configuration |
GSK980TD |
|
|
Alternative configuration |
FANUC, Siemens |
|
|
Servo motor |
X 18N. M Z 22N. M |
|
Machine appearance |
Length*width*height (mm) |
4600× 2000× 2040 |
|
Size, weight |
Net weight (kg) |
9000
|
