Product Specifications
| Prod Model: |
CK6140E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Horizontal Lathe |
| Automatic Grade: |
Automatic |
| Precision: |
High Precision |
| Power Source: |
Electric |
| Setting Mode: |
Floor-type |
| Controlling Mode: |
CNC |
| Processing Accessory: |
Chuck CNC Lathe |
| Tool Holder: |
Single-tool Holder CNC Lathe |

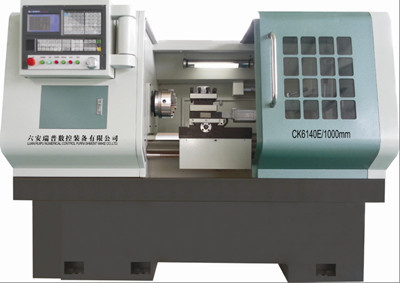

Product Description
Price: 63000/set
Products of this series adopt horizontal flat lathe with whole bed casting structure, lathe bed, lathe head, lathe saddles, lathe legs and other basic parts are all cast with resin sand, and valid artificial treatment makes the whole lathe with good stability;
· Guide rail of the lathe adopts super-audio quenching, rail joint surface of the saddle and sliding plate adopts "laminating" handling, removable parts make it possible for micro feed to avoid creeping;
· The feeding system has servo motor, precise ball screw, high rigidity and precision of composite bearing structure, which guarantees the accurate positioning and efficient transmission;
· High speeds of the spindle, wide range of speed-changing, and low noise. Three gears variable-speed and variable-frequency motor in main transmission make it possible to shift freely;
· The protected design of the appearance is according to international popular trend, novel and unique, waterproof, crumbs-prevented, easy to maintain; And reflects the characteristics of the times;
· The follow-up operation box makes it convenient for the operator to tool setting at a near distance, which represents the humanized design;
· Equipped with the centralized lubricator to conduct mandatory self-lubrication for the joint surface of the ball screw and guide rail, which can effectively improve the characteristics of dynamic response of the machine and the service life of the guide rail of ball screw;
· There are vertical four-station electrical knife rest, vertical six-station electrical knife rest, horizontal six-station electric knife rest, quick-changed knife rest and others for choice;
· According to customers' demands, we can support manual chucks, pneumatic chucks and hydraulic chucks or manual tailstocks, pneumatic tailstocks and hydraulic tailstocks;
· There are control systems of FANUC, Siemens, GSK, HNC and other international famous brands for choice.
|
Item |
Lathe specifications |
CK6136 |
CK6140E |
|
Technical specification |
Max. tactical diameter of the lathe' s body (mm) |
360 |
420 |
|
|
Max. tactical diameter of work-piece on the sliding plate (mm) |
200 |
200 |
|
|
Max. length (mm) |
750, 1000 |
|
|
Guide rail of lathe span (mm) |
330 |
|
Main drive |
Form |
Three gears to change speed |
No grade to change frequency |
|
|
Rank of spindle speed |
No grade |
|
|
Range of spindle speed (r/min) |
120-1700 |
|
|
Terminal structure |
Bayonet type C6 |
|
|
Hole diameter of spindle |
52 |
|
|
Spindle hole fore-end taper |
Morse6# |
|
|
Model of main motor |
YVP 132S-4-5.5KW |
|
Feeding system |
Max. route of knife rest (mm) |
X: 260 Z: 760(1020) |
|
|
Ball-screw diameter * pitch (mm) |
X: 2004 Z: 4006 |
|
|
Speed of quick-travel (mm/min) |
X: 4000 Z: 5000 |
|
|
Setting accuracy (mm) |
X: 0.012 Z: 0.018 |
|
|
Resetting accuracy (mm) |
X: 0.006 Z: 0.008 |
|
|
precision of work piece |
IT6-IT7 |
|
|
Surface roughness |
Ra1.6 |
|
Tailstock |
Sleeve diameter of tailstock (mm) |
60 |
|
|
Sleeve trip of tailstock (mm) |
150 |
|
|
Cone hole taper tailstock' s sleeve |
Morse4# |
|
Knife rest |
Standard configuration |
Four-station vertical electric al knife rest |
|
|
Alternative configuration |
Six-station (eight) electric al knife rest |
|
|
Resetting accuracy (mm) |
0.01 |
|
|
Length of section of knife handle (mm) |
20× 20 |
|
Control system |
Standard configuration |
GSK980TA |
|
|
Alternative configuration |
KND, FANUC, Siemens |
|
|
Servo motor |
X 130SJT-M040D
Z 130SJT-M060D |
|
Machine appearance |
Length*width*height (mm) |
2000× 1050× 1500
2200× 1050× 1500 |
|
Size, weight |
Net weight (kg) |
2200 2500
|
