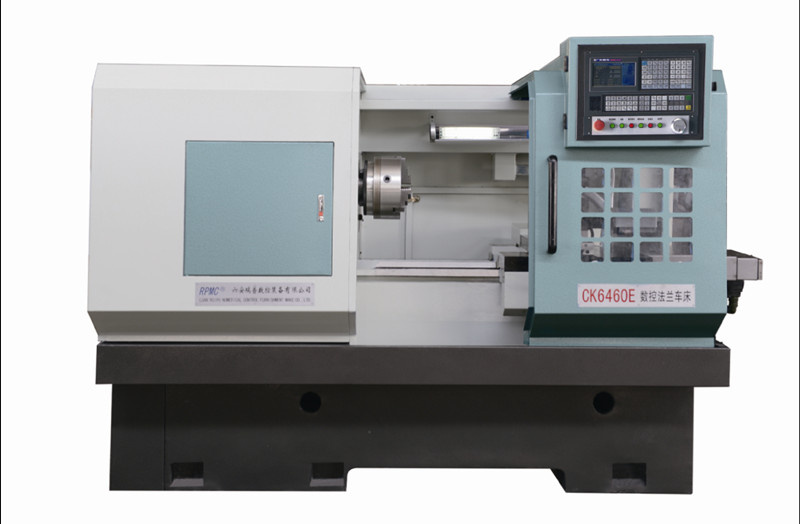

Product Specifications
| Prod Model: |
CK6460E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Horizontal Lathe |
| Automatic Grade: |
Automatic |
| Precision: |
High Precision |
| Power Source: |
Electric |
| Setting Mode: |
Floor-type |
| Controlling Mode: |
CNC |
| Processing Accessory: |
Chuck CNC Lathe |
| Tool Holder: |
Single-tool Holder CNC Lathe |
Product Description
CNC flange lathes of this series adopt horizontal whole bed casting structure with reasonable design of reinforcing rib, and the strong rigidity can reduce bed deformation and improve the accuracy;
· Z-direction feeding adopts inside screw drive to make the reasonable rotation and stable operation for the lathe;
· Guide rail of lathe adopts supersonic quenching, rail joint surface of the saddle and sliding plate adopts "laminating" handling, removable parts make it possible for micro feed to avoid creeping;
· The feeding system has servo motor, precise ball screw, high rigidity and precision of composite bearing structure, which guarantees the accurate positioning and efficient transmission;
· High speeds of the spindle, wide range of speed-changing, and low noise. Three gears variable-speed and variable-frequency motor in main transmission make it possible to shift freely;
· The protected design of the appearance is according to international popular trend, novel and unique, waterproof, crumbs-prevented, easy to maintain; And reflects the characteristics of the times;
· The follow-up operation box makes it convenient for the operator to tool setting at a near distance, which represent the humanized design;
· Equipped with the centralized lubricator to conduct mandatory self-lubrication for the joint surface of the ball screw and guide rail, which can effectively improve the characteristics of dynamic response of the machine and the service life of the guide rail of ball screw;
· There are vertical four-station electrical knife rest, vertical six-station electrical knife rest, horizontal six-station electric knife rest, quick-changed knife rest and others for choice;
· According to customers' demands, we can support manual chucks, pneumatic chucks and hydraulic chucks or manual tailstocks, pneumatic tailstocks and hydraulic tailstocks;
· There are control systems of FANUC, Siemens, GSK, HNC and other international famous brands for choice.
|
Item |
Lathe specifications |
CK6450E |
CK6460E |
|
Technical specification |
Max. tactical diameter of the lathe' s body (mm) |
500 |
600 |
|
|
Max. tactical diameter of work-piece on the sliding plate (mm) |
280 |
380 |
|
|
Max. length (mm) |
500 |
500 |
|
Main drive |
Form |
Three gears to change speed,
no grade to change frequency |
|
|
Rank of spindle speed |
No grade |
|
|
Range of spindle speed (r/min) |
50-1300 |
|
|
Terminal structure |
C8 |
|
|
Hole diameter of spindle |
82 |
|
|
Spindle hole fore-end taper |
Metric 90 1: 20 |
|
|
Model of main motor |
YVP132M_ 4_ 7.5KW |
|
Feeding system |
Max. route of knife rest (mm) |
X: 320 Z: 550 |
|
|
Ball-screw diameter * pitch (mm) |
X: 2505 Z: 4006 |
|
|
Speed of quick-travel (mm/min) |
X: 3000 Z: 5000 |
|
|
Setting accuracy (mm) |
X: 0.030 Z: 0.032 |
|
|
Resetting accuracy (mm) |
X: 0.012 Z: 0.013 |
|
|
precision of work piece |
IT6-IT7 |
|
|
Surface roughness |
Ra1.6 |
|
Knife rest |
Standard configuration |
Four-station vertical electric al knife rest |
|
|
Alternative configuration |
Six-station (eight) electric al knife rest |
|
|
Resetting accuracy (mm) |
0.01 |
|
|
Length of section of knife handle (mm) |
25× 25 |
|
Control system |
Standard configuration |
GSK980TA |
|
|
Alternative configuration |
FANUC, Siemens |
|
|
Servo motor |
X 5N. M Z 7.5N. M |
|
Machine appearance |
Length*width*height (mm) |
2500× 1400× 1700 |
|
Size, weight |
Net weight (kg) |
2700 |
2600
|
Lu'an Ruipu CNC Equipment Co., Ltd., located in Yingbin Avenue, Economic and Technological Development Zone, Lu'an, Anhui, is a high-tech enterprise specializing in the manufacturing of CNC equipments and functional components of high-end CNC equipments. The company owns advanced production equipments, solid technological strength, perfect testing methods, modern scientific management, all of which makes the products sold well all over the country. The company covers an area of 120mu, and its total construction area is 53, 000, and it has more than 360 employees with 126 engineering technicians, who guarantee our professional R & D capability and exquisite manufacturing technology.
Business scope of the company is the R&D, production, manufacturing and sales of high-end CNC equipments, CNC systems and CNC lathes etc. The main products are CNC lathes of CK6136B, CK6140E, CK6150E, CK6163B/E, CK61125F and other series, common lathes of CW6136B, CW6163E, CW6180E, CW61100E, heavy-duty horizontal common lathes of CW61125F, CW61140F, CW61160F, CW61200G and other series, CNC lathes with oblique guide rail: TCK7536D, TCK7540D, TCK7550D, TCK7580D and other series, and pipe thread lathes of QK1319F, QK1322F, QK1327F and other series. We are now in great development and growth, customer satisfaction is our eternal pursuit, and customer demand is our goal. With the continuous standard management, advanced technology and excellent products, we are looking forward to the sincere cooperation with merchants in domestic and abroad.
As Anhui Hi-tech Enterprise and the Demonstration Information Enterprise of Anhui Manufacturing Industry, the company has passed the ISO9000 quality system certification, with the products sold to the provinces, cities and autonomous regions around the nation, and exported to India, Russia, Southeast Asia, the Middle East, America, and other countries and regions. Our company has self-support imports and exports right and provincial technological R&D centers, and has established technological centers and offices in Shanghai, Wenzhou, Wuhan, Guangzhou, Qingdao, Changzhou and other cities.
Our company adheres to Ruipu spirit of innovation, dedication, cooperation and win-win, bases on the business concept of trading products with heart and cooperating customers with love, and welcomes the guidance from domestic and foreign merchants with open mind and perfect functions. With delighted services and sincere cooperation, we will come together to co-create the bright future for China CNC equipments manufacturing!
