Product Specifications
| Prod Model: |

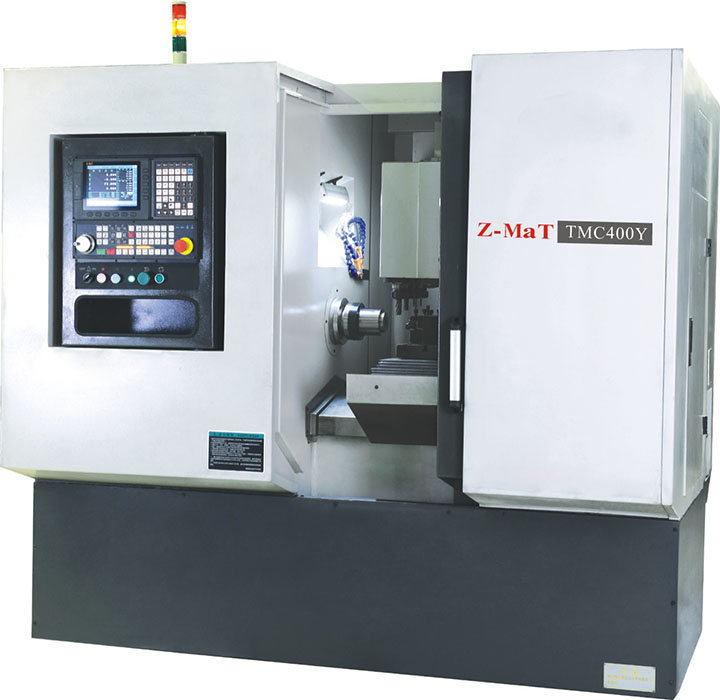

TMC400Y |
| Markets: |
South America,Southeast Asia,Oceania,Mid East,Eastern Asia |
| Max Swing Dia.Over Bed:400mm: |
Max.Dia.of Turning:160mm |
| Spindle Bore:48mm: |
Spindle Speed:3000-5000rpm |
| X/Z/Y Travel:400/250/80mm: |
Clamping: Hydraulic Collet or Chuck |
| Horizontal CNC Lathe: Flat Bed CNC Lathe: |
Tool Holders:Gang Type/4-Station Electric Toolpost |
| Type: |
Multicut Lathe |
| Automatic Grade: |
Automatic |
| Precision: |
High Precision |
| Power Source: |
Hydraulic Pressure |
| Setting Mode: |
Floor-type |
| Controlling Mode: |
CNC |
| Processing Accessory: |
Chuck CNC Lathe |
| Tool Holder: |
Vertical Live Tooling with Various Tool Holders |
Product Description
Specifications
1.5-Axis 4-Linkage Turning
2.Turing and milling combination processing
3.X,Y,Z axes interpolated with C Axis
1.The large size carriage has fill out cutter in front, after and left;It also has fill out 4 ER32 servo driving tool, the power head is parallel with X-axis, the system also has contour control, all cutters can finish different kinds of machining based on the product.
2.The lathe bed is made of heavy casting.It has gone through at least twice aging quality tests and ultrasonic frequency quenching.
3.High-precise angular contact ball bearings are used as bearing of the lathe.This gives an optimized combination of high-precision, high bearing capacity, good running speed, and it is more durable.
4.The imported linear rolling guide way is used in X, Z axes, so that it can decrease abrasion of the lathe.The preloading of the super-sized rolling guide-way decrease the gap of the guide way, and it increase the precision meanwhile.
5.Long X-axis distance, the lined cutter frame is the most accurate design, and it is also have a high speed of cutter changing.It can save a lot of process time for workers.
6.The design of the guarded guide way is more water-resistant and scrap-iron-resistant.
5 Reasons to buy Z-MaT machine tools
Reason 1.Well-known brand
Z-Mat has been awarded the honor of "Zhejiang SME","Hi-tech Industry","Top Ten Industry in Yuhuan","Top 50 CNC Machine Tool Manufacture in China" and "Taizhou Great Brand"
Reason 2.High Stability
All machinery bases that launched by Z-Mat have gone through natural aging treatment for at least two years
Reason 3.High precison
All machinery that are launched by Z-Mat , has tested with laser interferometers ,dynamic balancing instruments and other advanced manufacturing equipment and measuring instruments.
Reason 4.Flexibility
Because we are one of the few machinery company that has product line of more than 70 CNC machine tools in China,so that we can choose the best CNC machine tools for our customers .We have a strong R&D team , so that we can design specific machinery to satisfy customers' requirements .
Reason 5.On time
We always deliver machinery on time so that our customers do not need to waste extra time to wait .We also respond our customer at the first time in order to satisfy their requirement
Z-MaT,Stands for Zhenhuan Machine tool,is one of the largest and most famous CNC machine tools manufactures in China.Main products are CNC Turning center,Horizontal CNC lathe,Vertical CNC lathe,Vertical Machining center,CNC Milling machine,and Special Purpose Machine.In addition,we have core technologies on live tooling,realizing the functions of milling,drilling and tapping on varieties of CNC turning machine for turned parts.We position ourselves as your smart solution provider.
As a responsible company,we pay a lot of attention on customers,employees,technologies,and environment.Our mission is to provide best machine tools and solutions for customers worldwide.As machine tools and solutions resource to the public,Z-MaT bulids partnerships with educational institutions,community organizations,government agencies,and corporations to serve the industry and impact the world.
Zhenhuan Machine tools determined global strategy 5 years ago,and firmly started using new brand Z-MaT to replace previous China famous brand ZHENJI.
