CNC Machine Tools - 1

Product Specifications

Product Description

[Main Applications]

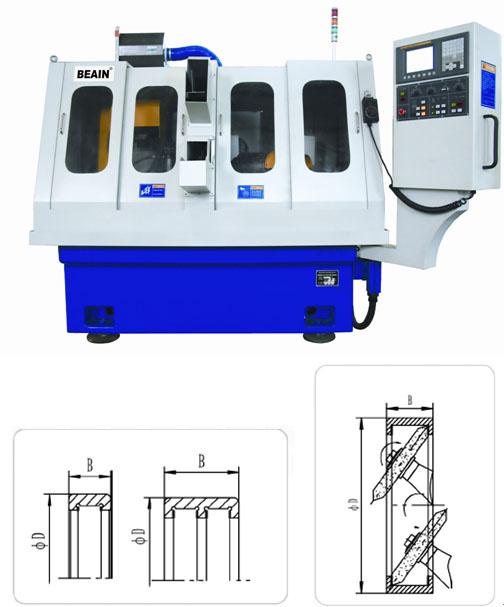

Outer ring flange grinding for single/double row cylindrical roller bearings.

[Main Features]
1. Implemented with Japan's FANUC all digital servo system (2-axis) with color display, "man-machine conversation" interface, manual pulse generator and self-diagnostics, the control system is stable, reliable, easy to maintain and convenient in adjustment.
2. Work spindle drive is speed-variable with F. C. And workpiece is gripped with an electromagnetic centreless chuck.
3. Workhead slide and wheelhead slide are driven by servo motors through ball screws (THK make).
4. Automatic loading and unloading manipulator is stable, reliable, versatile, easy to adjust and free from dent mark on workpieces.
5. Grinding wheel is dressed automatically by two-points diamond pen-type dresser.
6. Using lambdoid profiled wheel which widens the grinding area similarly to O. D. Grinding method. The cooling effect is excellent.
7. Two to four flanges can be ground in sequence at one positioning.
8. Oscillation of the workpieces can be set to improve the roughness of flanges.
9. Centralized lubrication system provides timing, quantitative and duly lubrication of ball screws.
10. Equipped with flushing system for easy cleaning and maintenance of the machine.
11. Definite distance measurement and NC gauge measurement in process are optional.
12. High grade cast-iron machine body with double aging treatment assures the overall accuracy performance.
13. Painted and enclosed machine guard is nice looking and splash-proof and has a long service life.

[Main Specifications]
Machine Model, Workpiece OD Mm, Workpiece width Mm, Processing accuracy, Total powerKW, Weight Kg
3MZ2610CNC 30-100 14-40 15 3000
3MZ2616CNC 60-160 15-55 19 3500
3MZ2620CNC 80-200 20-70 20 3500
3MZ2625CNC 100-250 25-80 22 4000
3MZ2635CNC 190-350 40-120 25 5000
3MB2645CNC 180-450 30-150 30 5500
