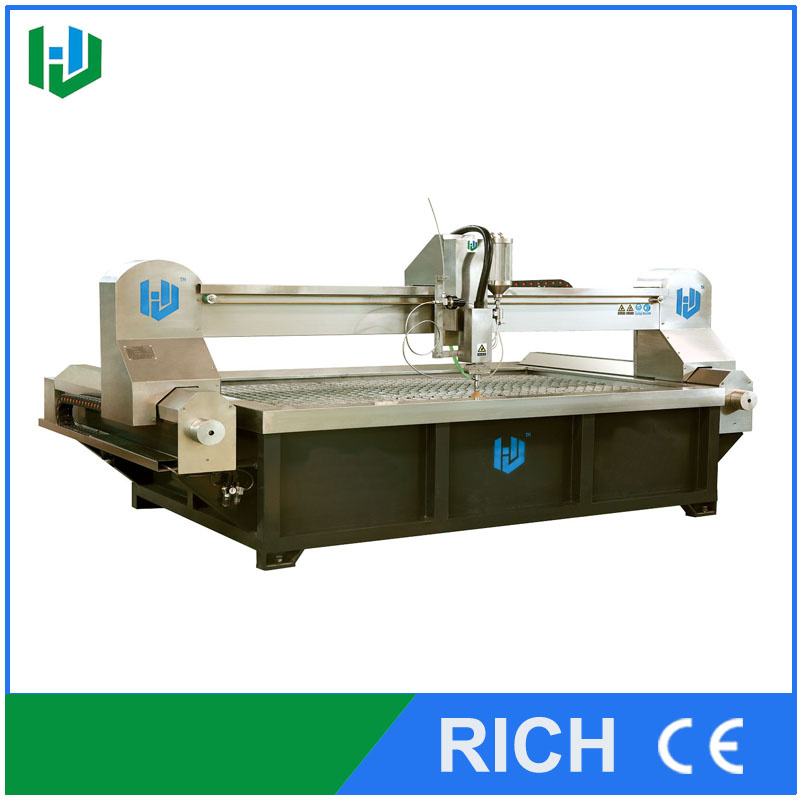

CNC Machine- Water Jet Cutting Machinery
Products DescriptionOne set waterjet cutting machine including 4 parts:1.(Bridge)Water jet cutting working table
2.Supercharger cabinet
3.CNC controller
4.Automatic abrasive delivery system
Bridge feature:
1.Adopt servo drive configuration Taiwan ball screw,linear guide can achieve seamless movement, to ensure smooth operation. To ensure the smooth transmission of the whole machine.2.Steel base, beams imported high quality seamless steel pipe, and then empty the true heat treatment, invisible change.
3.Afull range of cutting capacity, any plane curve cutting.
4.Specially reinforced bed structure, so that the cutting head does not produce vibration during high-speed operation, the machine runs smoothly, cutting speed, high precision machining.

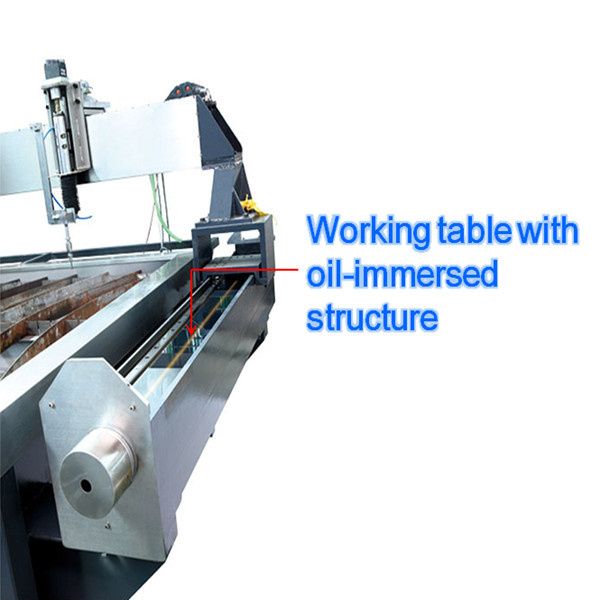

5.The screw and guide provided by the well-known Taiwan manufacturers, X, Y-axis is the original oil-immersed screw rail lubrication, plus a waterprooof, dust-proof structure to ensure that the machining accuracy of CNC cutting platform, and maximize the service life of the screw guide.

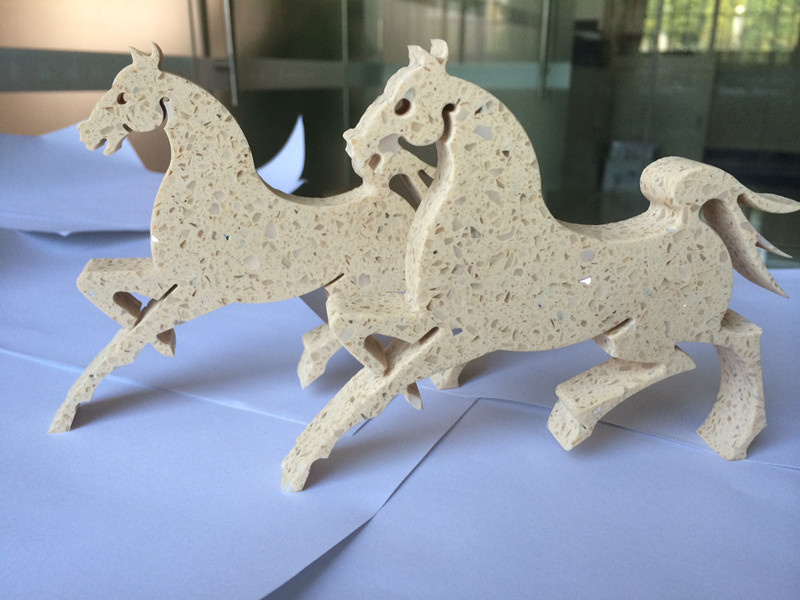

Cutting sample:
Technl Data |
|
|
Model | RC2515 |
Structure | Bridge |
Cutting table size | 2500*1600mm |
Stroke | X-axis | 2500mm |
Y-axis | 1500mm |
Z-axis | 60-80mm |
CNC Controller | Step System / AC Servo System |
Accuracy | ±0.1mm |
Turbocharger parameters |
|
Model | 450B |
Maximum pressure | 450Mpa |
Normal operating pressure | 350-380Mpa |
Main motor power | 37KW |
Oil pump | Varialbe |
Cooling | Water/Oil/Wind |
High-pressure cylinder | Imported |
Inlet valve | Imported |
Ceramic rod | Imported |
Accumulator | Single taper |
Power supply | 415/380/220V AC 3P |
