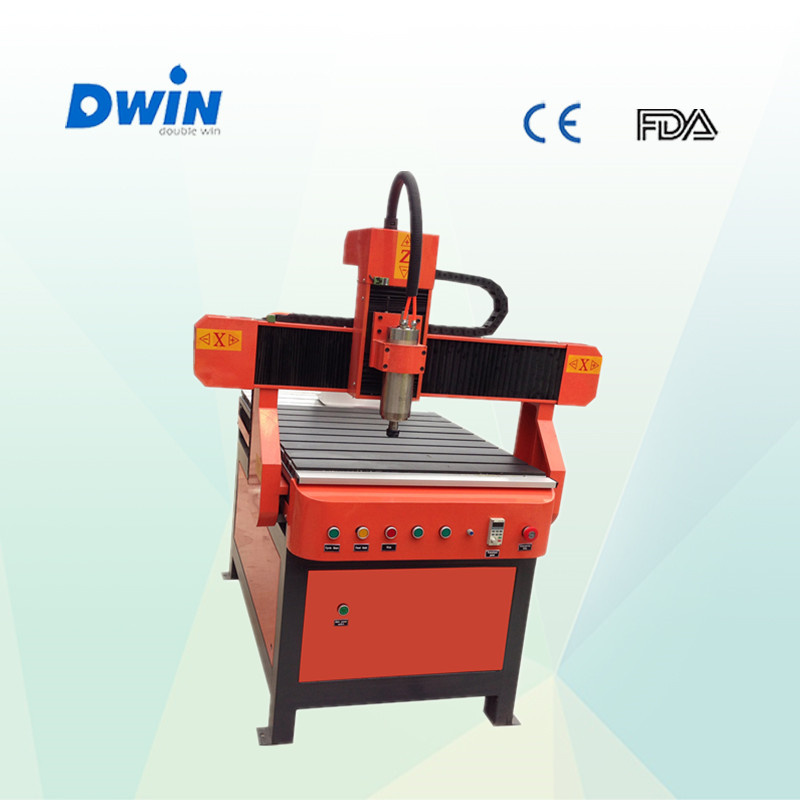

CNC machinery for advertisement making (DW6090)
Features:
*Adopt imported all-steel square guide rail with the high precision,ensure machine frame much stability and durability.
*High accuracy ball screw imported from Germany assure machine frame with the high precision.
*Break point and break bits continue engraving function can support up to nine points and can engrave at any places as you like.
*Compatible with Type3 / artcam /castmate/proe/coreldraw/wentai and other CAD/CAM software,which can produce exquisite relief,video sculpture,three-dimensional art works.
Applicable industry:
Advertisement engraving and cutting ,Handicraft industry ,Various types of man-made plate,LED,Neon literally cutting groove,plastic molding light box,interior decoration industry,mold manufacturing,wood processing,craft manufacturing ,light box cutting ,building model cutting,indoor decoration cutting,building,small metal,stationery,rulers,badges,department cards etc.
Applicable materials:
Wood ,Alumnium industry,3D technology ,arcylic cutting ,copper,PVC board,stone,MDF board ,PCB board etc.
Technical parameters:
NO. | Description | Parameter |
| 1 | X,Y,Z Working Area | 600*900*100mm |
| 2 | Table Size | 1560*1050mm |
| 3 | X,Y,Z Traveling Positioning AccuraIT | ±0.03/300mm |
| 4 | X,Y,Z repositioning Positioning AccuraIT | ±0.02mm |
| 5 | Table Surface | T-slot Extrusions |
| 6 | Frame | Welding steed |
| 7 | X, Z Structure | Ball Screw |
| 8 | Y Structure | Hiwin Rail Linear Bearings and Ball Screw |
|
| 9 | Max. power Consumption | 0.8Kw |
| 10 | Max. Rapid Travel Rate | 8000mm/min |
| 11 | Max. Working Speed | 12000mm/min |
| 12 | Spindle Power Motor | 1.5Kw self cooling spindle |
|
| 13 | Spindle Speed | 0-24000RPM |
| 14 | Drive Motors | Stepper system |
| 15 | Working Voltage | AC220V/50/60Hz |
| 16 | Command Language | G code |
| 17 | Operating System | DSP System |
| (Option:Mach3 PC Software) |
|
| 18 | Interface | USB |
| 19 | Flash Memory | 128M(U Disk) |
| 20 | Collet | ER16 |
|
| 21 | X,Y Resolution | <0.01mm |
| 22 | Software Compatibility | Type3 software, Ucancam software, |
| (Option: Artcam software) |
| 23 | Running Environment | Temperature: 0°C~45°C |
| Relative humidity: 30%~75% |
| 24 | Packing Size | 1710 *1250 * 1585mm |
| 25 | Net Weight | 180KG |
| 26 | Gross Weight | 272KG |
Dwin kindly tips:
All the parts of machine can do some changes to meet your requirements.
1.motor (step motor or servo motor optional)
2.spindle (air cooled or water-cooled optional )
3.guide rail (round guide rail or square linear guide optional )
4.the table of the machine (Vacuum table,T-shot table,Combination of T-shot &Vacuum table,Normal table,Table moving)
Guarantee & after sale service :
1) Guarantee for 1.5 years
2) Free training to make sure you master the operating of cnc router (on internet or by telephone)
3) 24 hour technical supporton Internet or by Telephone, free instructions and problem solving
4) Video CD for machine using and maintaining
