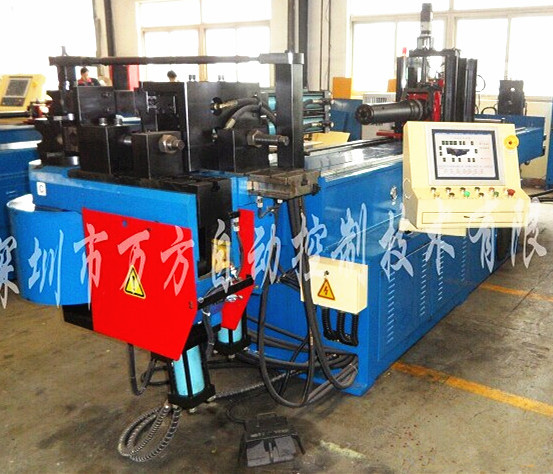

Product Specifications
| Prod Model: |
WFCNC76x8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Hydraulic Valve: |
Taiwan Northman |
| AC Servo System: |
Japan Panasonic |
| PLC: |
Japan Mitsubishi |
| Hydraulic Pump: |
Taiwan Hytac |
| Optical-Electricity Encoder: |
Korea Autonics |
| Forging Forming Method: |
Tire Mold Forging |
Product Description
1. Automatic recognition of power in machine and work piece, the processing is both quick and good
2. Slow returning core, boosted by barrow, imporving the apprearance of the angle.
3. The whole operation is in the computer, simple, quick and correct
4. Picturized programming system: Draw and modify on the stereo pipe image on the screen, makes the operation simple, quick and correct
5. Rebound test: Comparison test on the features of lots of pipe materials
6. Single-step debugging function- a careful observe on the deformation of the pipe material during the trail manufacture of dies.
7. Automatic drawing of the graphics of dies-clear help to develop new products
8. Over-all inspection: Hydraulic/electrical circuit/ driving systems, adsence of phase in motors/inversion, voltage, temperature, oil pressure, and automatically diagnose the troubles
9. Passwords, keys, working hours/ recordings of quantities, are applied to management of production
|
Specification/Model |
WFCNC-76x8 |
|
Max. bending capacity(mm) |
Φ76x8 |
|
Min. bending capacity(mm) |
Φ20 |
|
Max. bending radius(mm) |
300 |
|
Min. bending radius(mm) |
30 |
|
Max. bending angle |
190(193) |
|
Length of mandrel(mm) |
3000 |
|
Mandrel stroke(mm) |
150 |
|
Mandrel adjustment(mm) |
50 |
|
Clamp die stroke(mm) |
200 |
|
Clamp die return stroke(mm) |
220 |
|
Follower die stroke(mm) |
700 |
|
Pipe end Min. length(mm) |
160 |
|
Tools centerline height(mm) |
50 |
|
Working height(mm) |
1015 |
|
Speed range |
Bending speed C(r/min) |
0-13 |
|
Feeding trolley walking speed Y(r/min) |
0-45 |
|
Clamping set speed B(r/min) |
0-25 |
|
Pre-set speed(each axis-CNC) |
9 |
|
Working accuracy |
Bending accuracy C axis(°) |
±0.05 |
|
Feeding accuracy Y axis(°) |
±0.1 |
|
Rotary accuracy B axis(°) |
±0.05 |
|
Capacity of memory |
10^5 |
|
C-axis stall torque(N.m) |
35900 |
|
Motor power (KM) |
23(30) |
|
Hydraulic system pressure(Mpa) |
15 |
|
Hydraulic tank capacity(L) |
450 |
|
Dimensions: L*W*H(m) |
5.2*1.9*1.8 |
Shenzhen Wanfang Automation Technology Co., Ltd. Is A Tube Processing Equipment Manufacturing Company Collecting Independent R & D Design Production And Sales In A Body.
Our Company Has More Than 30 Years Of Experience In Research, Desigh, Manufacturing And Procesing.
CNC Series Tube Bender Which Is Self-developed Has Been Awarded The National And Provincial Scientific And Technological Progree Award. Our Engineering Staff Has Participated In Customized Of Bending Industry-standard And Revised Of Forging Guide. We Have Repeatedly Solved Difficult Processing Of Shaped Tubes For Domestic And Foreign Customers.
Our Products Are Widely Used In Coach, Shipbuilding, Boiler, Nuclear, Air-condicition, Furniture Manufacturing, Steel Structure, Electric Power, Petroleum, Chemical, Metallurgical And Heavy Machinery Manufacturing Industry, etc.
Our Main Customer Is Domestic And International Famous Big, Medium Companies. Our Quality Control System Strictly Complies With ISO 9001 Standards.
Our Products Are Include: CNC Tube Bending Machine. Hydraulic Tube Bending Machine. Profile Bending Machine. Special Tube Bending Machine. (Intermediate Frequency Tube Bending Machine , Swage Tube Bending Machine)Tube-cutting Machine. Tube-end Forming Machine.
If You Are Interested In Any One Of Them, Please Feel Free To Contact Me. We Warmly Welcome You To Visit Us Anytime.
