Product Specifications
| Prod Model: |
DLSKN-X802D031 |
| Markets: |
North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Control Power: |
DC24V |
| Relative Humidity: |
: < 85% |
| Machine Capacity: |
< 5.0 kVA |
| Type: |
Teaching Model |
| Laser Model: |
Technicians Education Equipment |
Product Description
DLSKN-X802D031

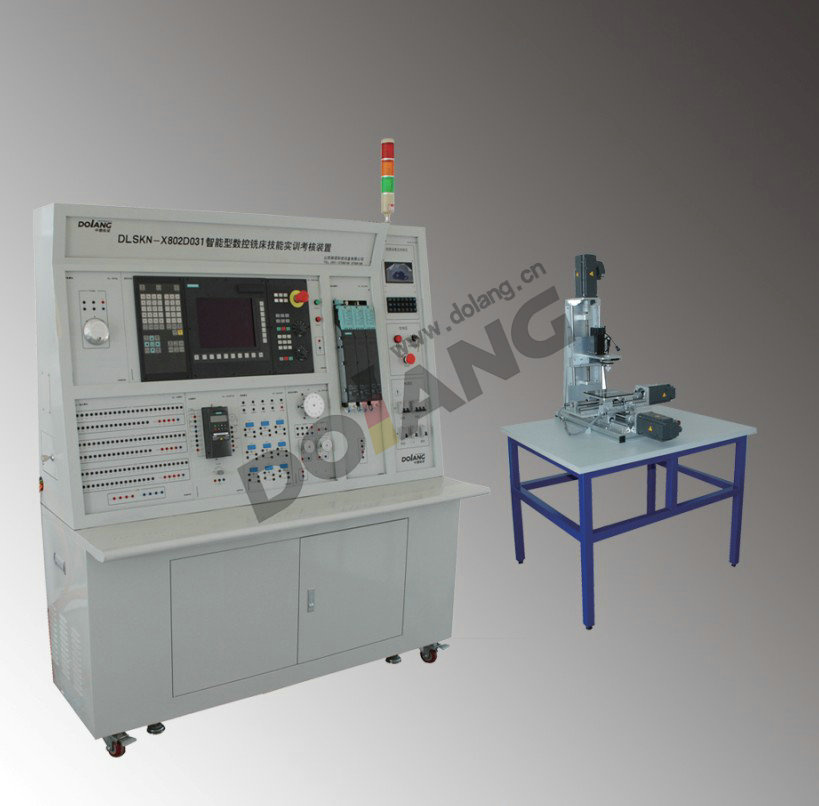

CNC Milling Machine Comprehensive Training Equipment(Semi-real object)
The simens 802 D system, with the semi-real object, complete the trouble shooting and maintenance in the the electrical control part of milling machine
1. Technical parameter
1, Input power: Three-phase five wire AC380V± 10% 50Hz
2, Control power: DC24V
3, Braking power: DC5V
4, Machine capacity: < 5.0 KVA
5, Dimension: 1455 x 640 x 1700 (mm)
6, Security protection: Leakage protection (movement current: 30 mA) over current protection, overload fuse protection
7, Work environment: Temperature-10 ° C ~ + 40 ° C relative humidity < 80% (25 ° C)
8. CNC system: Siemens 802D
2. The semi-real object lathe parameters:
Workbench move stroke: X to 200 mm Z to 250 mm
The benchwork highest move speed: 3000 mm/min
The highest spindle speed: 1400 r/min 25 W
Semi-real lathe dimension: 670*450*180mm
