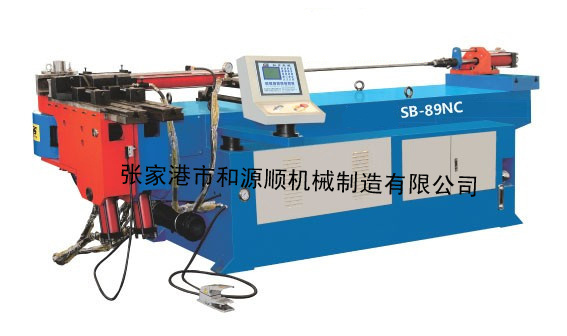

CNC Pipe Bending Machine with High Quality Sb-89nc

Product Specifications

Prod Model:	SB-89NC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Blue
Application:	Machinery & Hardware
Type For Fold-bending Machine:	Hydraulic Fold-bend Machine
Type For Pipe And Tube Bending Machine:	Horizontal Hydraulic Pipe Bender

Product Description

Features of machine:
1. NC type machines all use NC panel control.
2. Manual semi-automatic and fully automatic are available.
3. Multiple protective devices secure the safety of users.
4. Auto detective and error movement indicating functions prevent machine to be damaged by wrong operation.
5. Mobile pedal switch and side emergency stop switch provide more protection.
6. The cooling system makes the machine running steady.
7. The quick tooling change system is favor of production.
8. High-rigid mechanism enables to reduce the interference area.
9. The panel displays the movement situation of the machine and bending angle
10. Programmable auto detective and breakdown message display, shown the wrong and error information in the screen.

specification	SB-89NC
Max.PIPE O.D	Φ89*4.5
Round tube/Non-ferrous	Φ89*7.0
Round tube/Stainless	Φ89*2.5
Square tube/Mild steel	60*4.5
Round bar/Mild steel	45
Max.travel of manual	2600
Max. bending radius	450
Max bending angle	185
Bending pipe numbers	16
Max.pressure	14
Motor power	11
Total leight	4500
Total width	1250
Total height	1400
