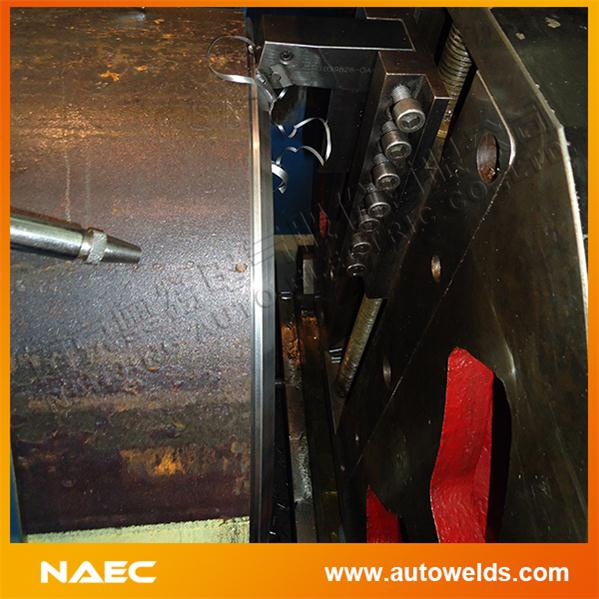

CNC Pipe Beveling Machine
It has features as following:
l Five models available( 16"type, 24"type, 32" type, 48" type,60" type);
l Process different types bevels, such as single V, double V, U, J type bevel;
l With automatic self-centering chuck;
l With hydraulic elevating and turning device for both ends efficient beveling;
l High speed beveling: for example, it only takes 2.5 minutes to get a 37.5 degree bevel for a S.S pipe end (diameter: 610mm, thickness: 25mm).
Technical Data:
1 | Model | AUTO PM630A-A |
2 | Input Voltage | 3PH AC380/400v,50/60HZ |
3 | Input Power | 12.1kW |
4 | Pipe diameter Range | 150~630mm |
5 | Turning Speed of Driving Axis | 6~60 rpm |
6 | Traveling stroke of driving box | 200mm |
7 | Feeding-in Speed | 0.27-16mm/min |
AUTO Hign Speed CNC Pipe End Beveling Machine is applicable to bevel and face the pipe end with Elevating Conveyors for Centering, suitable for various materials such as carbon steel, alloy steel, stainless steel, etc. It can process single V, double V, J, U type bevels and realizes two pipe ends beveled by elevating & turning-round carriage, which can turn in 180 degree in 30 seconds to bevel and face another pipe end.
Nanjing Auto Electric Co., Ltd (NAEC) was established in 2001, taking promoting "Lean Fabrication to Global Energy Engineering Industry" as its mission, NAEC's core business is to provide Lean-fabrication One-stop Solution to energy engineering contractors and fabricators. With advanced innovation ability and continuous integration of new technology & processes, NAEC's solution ensure its users high quality and efficient fabrication, and make itself become worldwide clients' most preferred partner.
Our Strategic Clients are
L EPC companies, Contractors or Fabricators in Onshore Oil & Gas Exploration, Transportation, Storage, Refinery & Chemical
L EPC companies, Contractors, Fabricators or Equipment Manufacturers in Offshore Oil & Gas Exploration, Treatment, Transportation & Storage
L EPC companies, Contractors or Fabricators in Nuclear Power, Wind Power, or Thermal Power
L Various Energy Engineering Equipment Manufacturers
We provide Lean-fabrication One-stop Solution for Energy Engineering EPC Companies/ Contractors/ Fabricators, Based on Following Systems:
L NAEC Lean-fabrication Mode
L NAEC Lean-fabrication Management System
L NAEC Lean-fabrication Production System
NAEC Lean-fabrication One-stop Solution can help engineering fabrication operators to solve project problems. It can organize fabrication production and ensure the final delivery in good quality and on time.
