CNC Plasma Cutting Machine

Name: CNC Plasma Cutting Machine
Brand: China-Manufacturer-Directory.com
SKU: 731334225
Availability: InStock
Rating: 4.6 (120 reviews)

Supplier:	Changzhou ANNOV Machinery Co., Ltd.
Price:	US $ 9000-15000set
Min Order:	1set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	CNC. CGM4M, CGM5M, CGM6M, . CGM7M, CGM8M
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Packaging Details:	Wooden Crate
After-Sales Service Provided:	Engineers Available to Service Machinery Overseas
Flame Cutting Thickness:	6-400mm
Cutting Speed (Mm / Min):	50-6000d (Mm / Min)
Control System:	American Edge CNC System
Speed Reducer:	Nfugart
Motor Driven:	Panasonic Servo
Certificate:	CE
Type:	CNC
Cutting Mode:	Plasma
Control Mode:	CNC

Product Description

Over the years,we have successfully formed a complete production network for many famous manufactures,meanwhile,are directly working with a lot-co-op branding such as TRW,VALEO,BOSCH,LEAR,VOLVO,GWS,KOMATSU etc

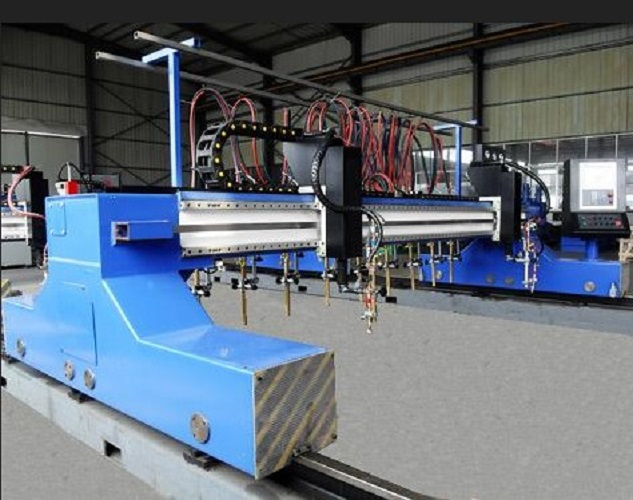

This series of cutting machine adpots gantry structure,the whole structure needs annealing and shot blasting,paint handling,the rack rall using high-frequency quenching,grinding inlaid,then it's done,good rigidity,high precision,stable structure.It can be equipped with straight three torches,infinite rotating three cutting torches and plasma cutting torch,cutting torch lifting structure using ball guiding rail,realizing the automatic and electric lift,and can be equipped with the automatic ignition,pipeline discharge forms adopt hanging or tank-type chain accroding to use's requirements.

Type	CNC.CG4M	CNC.CG5M	CNC.CG6M	CNC.CG7M	CNC.CG8M
Track gauge(L)	4000	5000	6000	7000	8000
Cutting Width(L-800mm)	3200	4200	5200	6200	7200
Total Width(L+800)	4800	5800	6800	7800	8800
Longitudinal guide rail length	14000(According to each orbit 2000mm longer)
Effective Cutting Length	12000(can be extended)
Drivind Mode(drive)	Single Driving		Double Driving
Drivind Speed	Single Driving 50-4000		Double Driving50-6000
Number of nc cutting torch	Standard configuration:2 sets(According to customers' request )
Power	50Hz/220V
Cutting thickness	6-100(Flame)If a larger flow cutting torch cutting thickness of up to 400 mm
Cutting Mode	Flame( Acetylene/Propane/Oxygen),Plasma
