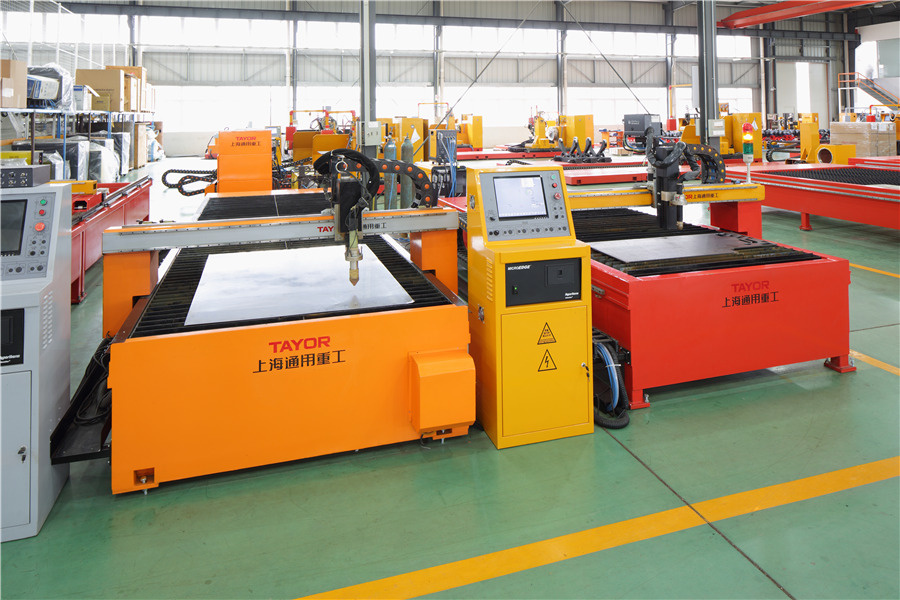

CNC Plasma Protable Cutting Machine (CNCTG2000)
Product Specifications
| Prod Model: |
CNCTG2000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cutting Type: |
Plasma Cutting, Dry Cutting |
| CNC Ontroller: |
Micro Edge-PRO/Edge PRO/Sjtu-Sk |
| Plasma Power Source: |
Hypertherm/Thermadyne/Kjellberg |
| Drive Motor: |
Servo Motor, Panasonic |
| Gear Box: |
Neugart, Germany |
Product Description
CNC cutting machine table ,Water surface cutting table or integration dust extraction can purify the fume, metallic dust and harmful gas effectively during the plasma cutting.
It is suitable for economical cutting of medium carbon steel plate and sheet, stainless steel, nonferrous metal and alloy plate.
| Cutting Technical Data |
| Model | CNCTG1500 | CNCTG2000 | CNCTG2000 | CNCT2500 |
| Machine dimension (mm) | 1500x3000 | 2000x4000 | 2000x6000 | 2500x8000 |
| Effective Cutting area (mm) | 1000x2000 | 1500x3000 | 1500x5000 | 2000x7000 |
| Cutting Thickness(mm) | Flame:5-60mm Plasma:1-25mm |
| Cutting Speed (mm/min) | 50-3800 |
| Running speed (mm/min) | 12000 |
| Basic components |
| Cutting Mode | Plasma or Flame |
| Drive Motor Number | Servo motor ,Single-side or Dual-side |
| Cutting Torch Number | 1 set |
| Driving Motor | Panasonic, Mitsubishi |
| NC Controller | ADT-HC6500 SJTU-SK, Micro EDGE, EDGE pro |
| Plasma Power | Thermadyne, Kjellberg, Hypertherm |
| Programming software | FASTCAM |
| Gearbox | Neugart |
| Other Data |
| Working temperature | - 10°C -45°C |
| Humidity | <90%, no condensation |
| Surroundings | Ventilation, no big shake |
| Power voltage | 3×380V±10% or up by user's local condition |
| Operation language | English or Chinese |
| Options |
| Option Item | Powder Marking, |
| integration dust extraction |
| Heating and cooling systems |
| Inkjet equipment |
Shanghai TAYOR Heavy Industry (Group) Co., Ltd.
Company Address: No. 1377, Xintanwa Road, Pudong District, Shanghai, China
Company Introduction: Shanghai TAYOR Heavy Industry (Group) Co., Ltd. is the biggest manufacturer of CNC cutting machine and welding machine in China. TAYOR has the most advanced products chain structures, 1 welding technology research institute, 1 welding technology training school, 3 manufacture bases, 9 manufacturing enterprises.
TAYOR have been certified by CE, ISO9001: 2008 international quality system. All the core products of our company have "CCC" certification.
1. Shanghai TAYOR Heavy Industry (Group) Co., Ltd CNC Cutting Machine Department has leading technology in CNC plasma and flame cutting field in China. Our machines have been exported to more than 100 countries, including Belgium, USA, Russia, Brazil, Chile, Indonesia, India, Iran, Nigeria, etc.
2. Shanghai welding technology research institute, which cooperates with Shanghai Jiao Tong University. It works on technology development and makes every effort to follow the new technology all over the world.
3. TAYOR and Shanghai Welding Association join all forces to run Shanghai TAYOR welding technology training school. This training school has already become America Welding Society (AWS) and Canada Welding Bureau (CWB) Welder Examination Center in China.
Core Products:
1. Automatic Cutting Equipment: Economic Table Type CNC Plasma and Flame Sheet Cutting Machine, Precision Table Type CNC Plasma and Flame Sheet Cutting Machine, Gantry Type CNC Plasma and Flame Sheet Cutting Machine, Gantry Type CNC Sheet Bevel Cutting Machine, CNC Pipe Profile Cutting Machine, Pipe Fixed-length Cutting Machine.
2. Welding Machine: AC Arc Welding Machine, DC Arc Welding Machine, Consumable Electrode Gas-shielded Welding Machine, Tungsten Electrode Argon Arc Welding Machine, Auto Submerged Arc Welding Machine.
3. Automatic Welding Equipment: Automatic Spot Welding machine, Automatic Projection Welding Machine, Automatic Seam Welding Machine, Automatic Butt-welding Machine, Resistance Welding Machine, Arc Welding Machine, Welding Assembly Line.
4. Welding Consumables: High Strength Submerged Arc Welding Wire, Gas Shielded Welding Wire For Low-Temperature Steel, Arc Gas Shielded Welding Wire RKDH91, High Strength Gas Shielded Welding Wire.
Application Industry: Ship Building, Construction Equipment, Elevator Manufacturing, Steel Mechanical Processing, Petroleum Pipeline, Steel Construction, Agriculture Machine, Transport Equipment, Aerospace Industry, Bridge Building, Pressure Vessel, Electric Power Industry, etc.
Key Value: To promote technology innovation and devote to China industry.
Our Mission: To provide customers the best products and technology service.
