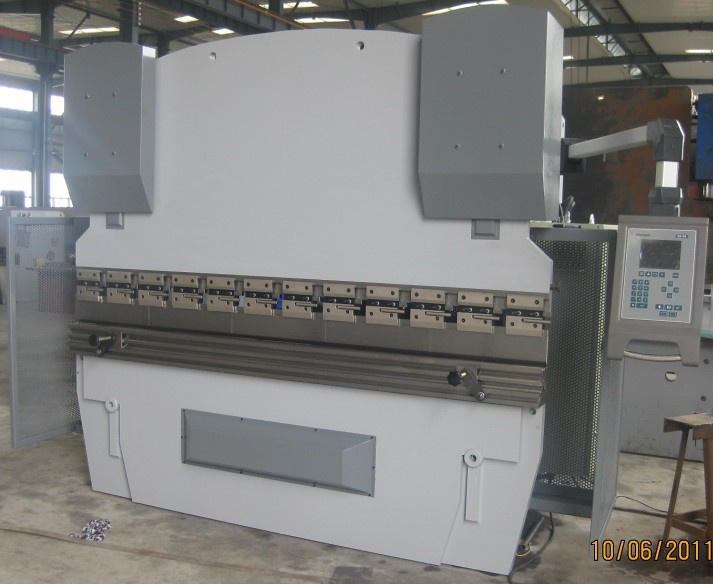

CNC Press Brake Wc67k 125t3200 with Da52
Product Specifications
| Prod Model: |
WC67K125T3200 with DA52 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pressure:125t: |
Width:3200mm |
| Automation: |
Automatic |
| Type For Cutting Machine: |
CNC Cutting Machine |
| Type For Fold-bending Machine: |
CNC Fold-bend Machine |
| Application: |
Machinery & Hardware |
| Type: |
Press Brake |
Product Description
1.Functions
This machine is high-efficiency and high-precision in bending sheet metal. Using different kinds of upper and lower dies can bend all kinds of work pieces. One slider travel makes a sheet bending and the complicated shape work piece may be achieved through bending many times. When fitted with relevant equipments, it can be used to punch holes.
2.Overall structure
2.1 Using UG (finite element) analysis, through computer aid design, with nice appearance.
2.2 The machine structure is welded with steel plate, with sufficient strength and rigidity. The hydraulic drive prevents the machine from serious overload operation accidents caused by the change of sheet thickness or bad choice of lower die cavity. Additionally, this machine is also featured by the steadiness of work, convenience of operation, and reliable safety.
3.Parts of supply list

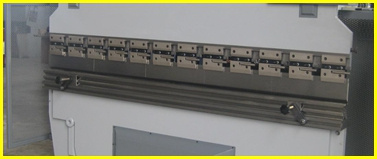

Tool clamping and Press Brake Die
Holland,DELEM DA52 system
Photoelectric protection (Optional)
|
Number |
Name |
Value |
Unit |
Notes |
|
1 |
Nominal pressure |
1250 |
KN |
|
|
2 |
Length of workbench |
3200 |
mm |
|
|
3 |
Width of workbench |
180 |
mm |
|
|
4 |
Poles distance |
2600 |
mm |
|
|
5 |
Throat depth |
320 |
mm |
|
|
6 |
Max stroke |
320 |
mm |
|
|
7 |
Max open |
380 |
mm |
|
|
8 |
Backgauge stroke |
410 |
mm |
|
|
9 |
Gear pump |
model |
NT3G-25F |
|
|
|
10 |
flow |
25 |
L/min |
|
|
11 |
pressure |
31.5 |
MPa |
|
|
12 |
Thickness of workbench |
70 |
mm |
|
|
13 |
Main power |
7.5 |
KW |
|
We are pleased to introduce ourselves as one of the professional manufacturer of Press Brake, Shearing machine, Rolling machine, Punch machine, CNC lathe, CNC machine center in China.
We also make the Tools for Press Brake, Blades for Shear Machine, Dies for Punch Machine.
AMADA, MURATA, TRUMF, STRIPPET, LVD, FIN POWER, JIN FANGYUAN, YANGLI, JIEMAI IN JINAN, TAILIFT
Our international brand is ALUKE MACHINE TOOL Co., Ltd
We have been working in the same field since 1982.
In the mean while we have Supplied a number of metal process machinery all over the world of all Capacities, model and all type of sheet metal machineries. We have qualified with CE mark, ISO 9002-ISO 2000.
We have satisfied customers throughout over world who gaves us repeated order due to very good sales, services and customers relationship.
Our Sales Net are: UK, USA, Italy, Romania, Russia, Ukraine, Brazil, Colombia, Peru, Venezuela, Ecuador, Paraguay, Chile, India, Pakistan, Singapore, Vietnam, Iran and so on, more than 50 countries.
If any of the items can reach your filed, please contact us freely, we are always at your service.
