Product Specifications
| Prod Model: |
TZJD-1325B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Area: |
1300mm*2500mm*200mm |
| Color: |
Red/White/Blue/, as Demands |
| Structure: |
Rack Gear |
| Guide Rail: |
Taiwan Hiwin Linear Guide Rail |
| Spindle: |
3kw/4.5kw/5.5kw/6kw/7.5kw/9kw |
| Machine Body: |
Square Tube Welding |
| Working Table: |
Vacuum Absorption Table with Vacuum Pump Systboard |
| Control Card: |
Ncstudio Card/DSP Controller |
| Software: |
Type3/Artcam/Ucancam/Caxa/Proe, etc |
| Woring Voltage: |
AC220V, 50/60Hz, 1pH(Option, 380V 3pH) |
| Controlling Mode: |
CNC |
| Feed Mode: |
Manual |
| Spindle Number: |
Single-Spindle |
| Spindle Layout: |
Spindle Over |
| Certification: |
FDA |
Product Description
1. Three Axis under the control of Type3 software, high automation;
2. Y axis adopts double motors to ensure stable operaton;
3. High speed and efficiency, max. Speed over 14m/m;
4. The CNC Engraver is with two motors and unique two rack driving, No deformation and vibration after a long-time work within high speed.
5. Application of driver with high definition subdivision ensures fast speed and high accuracy.
6. Wood industry, it is a professional wood door making and furniture making machine;
7. Automatic oiling system fulfills the periodic lubrication maintenance just by a slight press.
8. Imported Taiwan HIWIN linear guide rail, ensure the machine stable movement.
9. Vacuum absorption table, which can guarantee to adsorb the wooden material firmly.
Applicable industry
Wood industry, I wood door making and furniture making, relief, double-color board, bamboo crafts,
Advertising industry, breastplate, doorplate, aluminum, marble/stone industry.
Applicable material
Wood, organic glass, PVC board, plastic, marble, metal, aluminum, KT board, Acryl, etc.

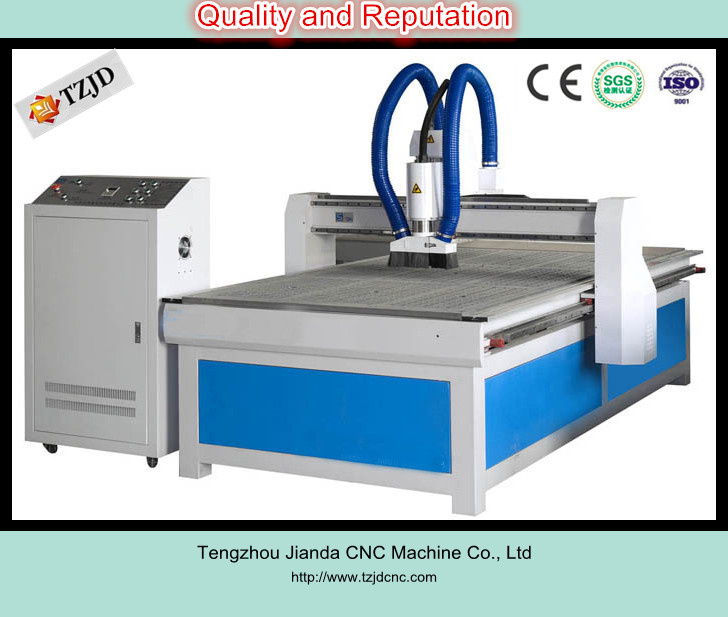

CNC router machinery for woodworking, woodworking engraving cutting machine, CNC router, engraving machine, CNC engraver cutter
|
Description |
Paramater |
|
TZJD-1325B |
|
Working Area (X*Y*Zmm) |
1300mmx2500mmx200mm |
|
X, Y Structure |
Gear Wheel Transmission, Shaft Linear Bearings |
|
Z Structure |
Ball Screw, Shaft Linear Bearings |
|
Table Surface |
Vacuum absorption table with vacuum pump system |
|
Max Engraving Speed |
20000mm/min |
|
Frame |
Cast Square tube welding |
|
Spindle power(KW) |
3kw/4.5kw/5.5kw/6kw/7.5kw/9kw |
|
Max. Power Consumption(Without spindle) |
2.0KW |
|
Spindle Speed |
6000-18000rpm |
|
Resolution |
0.005mm |
|
Repeatability |
0.01mm |
|
Voltage |
AC220V, 50/60Hz, 1PH(option, 380V 3PH) |
|
Drive motor |
Stepper/servo |
|
Working Dictate |
G Code*. u00*. mmg*. plt |
|
Operating system |
Dsp System/Syntec/LNC |
|
Necessary function |
Auto-oiling system |
|
Interface |
USB |
|
Flash memory |
128M(U Disk) |
|
Software Compatability |
Type3, Ucancam, Artcam Software |
|
Running Environemt |
Temperature: 0-45 |
|
Relative humidity: 30%-75% |
|
Working software |
Windows98/2000/xp |
Tengzhou Jianda CNC Machine Co., Ltd specialized in woodworking machine, advertising machine, marble/stone engraving machine, laser engraving cutting machine, metal mould machine, double heads engraving machine, cylinder engraving machine, etc.
The company was one of companies that can research & develop the advanced CNC Machines, which have laid the foundation in the domestic market. Our machines have already exported to USA, Canada, England, Australia, Russia, India and so on.
Tengzhou Jianda CNC Machine Co., Ltd Is the professional CNC router manufacturer. We adopt many computerized numerical patents. Our company is devoted in the research and development of engraving CAD/CAM technology and CNC technology and have obtained remarkable achievement in the design of precise engraving machine as well as artistic carving.
Today, TZJD CNC has developed to a large worldwide Manufacturing Group; And become an excellent leader of the world in this field. Our products have covered woodworking industry, advertising decoration, making label industry as well as crafts and gifts fields. We wishes to develop the double-win together with our customers. Welcome to your valuable advise.
Our products are famous for its low price, good quality and good after sales service. We are still try our best to produce innovative products to you.
