Product Description

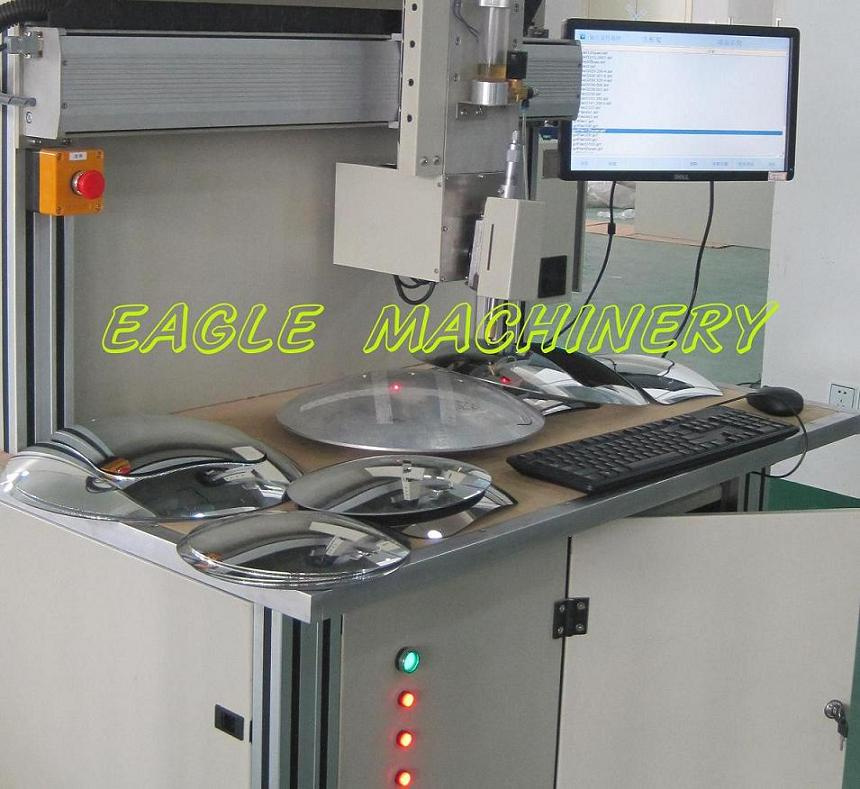

CNC Spherical Convex Glass Cutting Machine
CNC Spherical Convex Mirror Cutting Machine
1. Technical parameters:
Curvature Radius: R=100-∞ Mm
Glass sheet size: 500*500mm
Cutting accuracy: ± 0.05mm(straight line )
Cutting thickness: 0.9-8mm
Weight: 800KG
Power: 2.1kw
Cutting speed: 0-80m/min(adjustable)
Table flatness: ± 0.1---0.02mm
2. Machine configuration
Convey system: 4 axis with Japan YASKAWA motor
Oiling method: Automatic oiling device
Position device: Mechanical positioning device
Conveying parts: HIWIN ball screw and liner guide rail
Table: Sheet steel
Pneumatic parts: SMC
Electrical parts: Schneider and SHANHO
Mold: Used for the cutting of the curve glass.
Can be use to cut convex glass, car mirror glass etc.
3. Software:
Professional glass cutting software can cut according CAD drawings; Can change the cutting origin freely, with 5000 map storage, with table vacuum system.
4. Work process: Feed__cutting__break off with hands
5. Wearing parts:
Cutting wheel,
6. After-sales service
1 year warranty period, Life-long Aftersales service
7. Appendix:
A. 3 cutter holder
B. Debugging tools
C. Operating instruction
8. Machine working condition
A. 380V electricity B. Air pressure: 0.4-0.6MP
