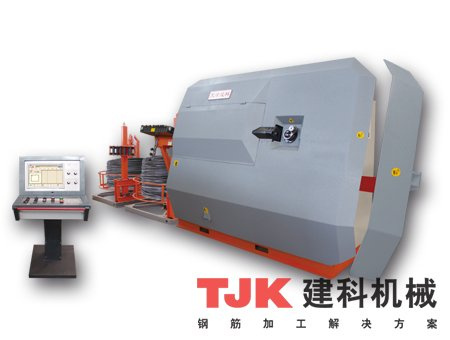

CNC Stirrup Bending Machine

Name: CNC Stirrup Bending Machine
Brand: china-manufacturer-directory.com
SKU: 675953962
Availability: InStock
Rating: 4.3 (98 reviews)

Supplier:	TJK Machinery (Tianjin) Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	WG16
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Type:	Coiling Bending Machine
Application:	Machinery & Hardware
Automation:	Automatic
Type For Fold-bending Machine:	CNC Fold-bend Machine
Type For Cutting Machine:	CNC Cutting Machine

Product Description

Material feeding system:

2 payoffs with brakes, suitable for single and double strand, buffer unit can reduce the resistance and instability.

Straightening system:

One horizontal straightening unit and one vertical straightening unit (patented technology) combine with 4 traction rolls drove by servo motor, this ensures wires can reach the most accurate straightening effect

Bending and cutting system (patented technology):

Bending arm driven by servo motor can protrude or draw back while bending different angles, it will finish cutting work synchronously.

Control system:

CNC control with malfunction alarm, PLC, servo motor and electric components use Japan and Germany brand

Edit any 2D shapes with max. 50 angles, the data base can store more than 500 shapes. Different shapes can be processed continuously without stop

MODLE	WG12B-2	WG16B
single wire (MM)	Φ 6 – 12 [mm]	Φ 6 – 16 [mm]
double wire(MM)	Φ 6 – 10 [mm]	Φ 6 – 10 [mm]
Max bending angle	180°	180°
Max bending speed	800 – 1050 [° /sec]	800 – 1050 [° /sec]
Max pulling speed	90 – 110 [m/min]	90 – 110 [m/min]
Max length of the stirrup side	2200 [mm]	1300 [mm]
Min length of the stirrup side	60 – 90 [mm]	60 – 90 [mm]
Length tolerance	± 1 [mm]	± 1 [mm]
Bending tolerance	± 1°	± 1°
Production capacity (single wire)	900 [pcs/h]	900 [pcs/h]
Production capacity (double wire)	1800 [pcs/h]	1800 [pcs/h]
Average air consumption	6 [l/min]	6 [l/min]
Average power consumption	5 [KW]	10[KW]
Installed power	23 [KW]	50[KW]
Bending direction	Double direction	Double direction

TJK MACHINERY (TIANJIN) Co., Ltd. is China's largest manufacturer in reinforcing steel (wire and rebar) processing machinery.

The most grand and modern new factory covers an area of 270, 000 sq. m.

560 staff.

TJK has over 85% China market share, and the products have sold well in more than 60 countries.

TJK is listed on Forbes annual ranking of China up-and-comers.

ISO9001, CE
