CNC Surface Grinding Machine
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
Product Specifications
| Prod Model: |
KGS-1020AHD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Capacity: |
10"*20" |
| Type: |
Surface Grinding Machine |
| Automatic Grade: |
Automatic |
| Precision: |
High Precision |
| Controlling Mode: |
Artificial |
| Processing Object: |
Curve |
Product Description

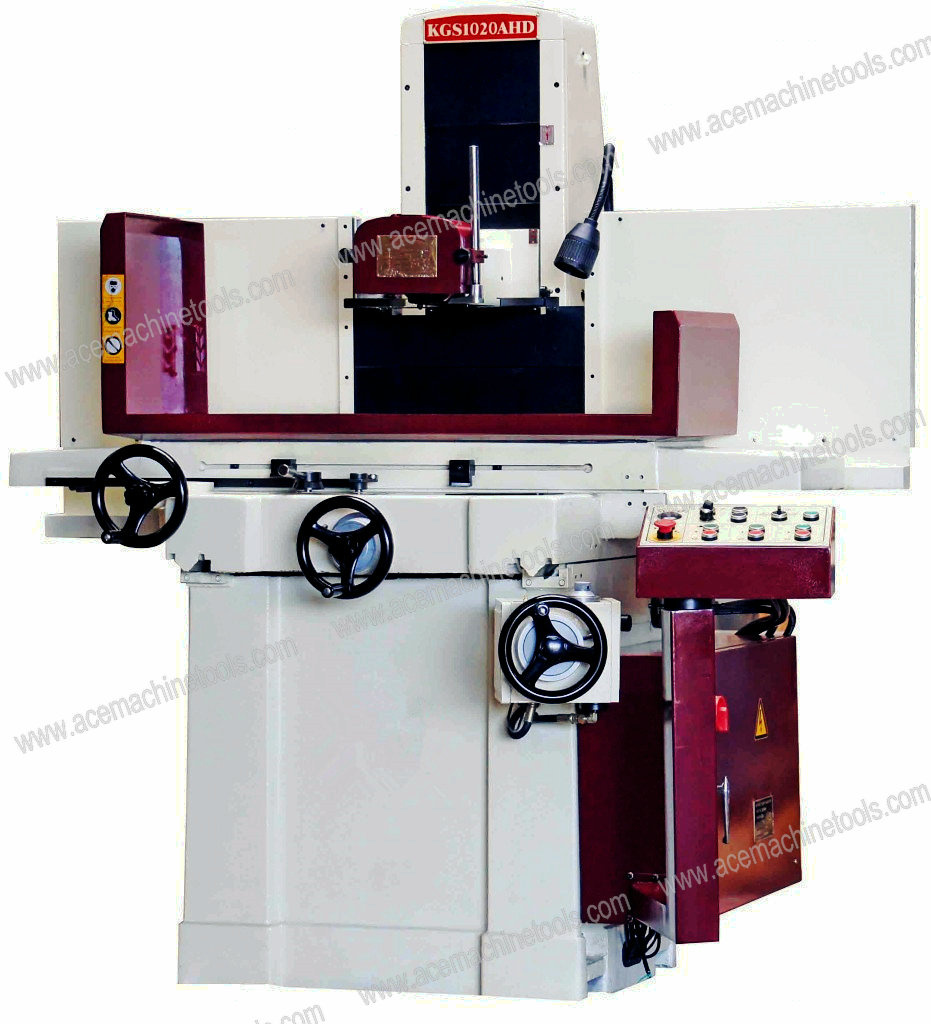

Auto Surface grinder/Surface Grinding Machine (KGS-1020AHD)
10"X20" working capacity; Flange mount spindle cartridge for superior side grindingrigidity
3-axis automatic movement with incremental downfeed and electronic auto-crossfeed
Roller ball on linear table ways for smooth longitudinal movements with minimal maintenance
Double V precision hand scrapped turcite saddle ways for smooth and long lasting performance
High column extra rigid H-frame design with 21" spindle center to table for extra clearance under the wheel; Over size rear splash guard
Over 3, 690 pound net weight for super vibration damping capability
Centralized automatic lubrication system
Safety 24V control circuit power
| Specs |
| SPEC\MODEL |
KGS-818AH | KGS-1020AHD | SGS-1020AHD |
| Table Travel: | 20" | 23.6" | 22.2" |
| Saddle Travel: | 10" | 11.4" | 10.5" |
| Working Capacity: | 8"x18" | 10.4"x21.4" | 10"x20" |
| T-Slot: | 1 x 9/16" | 1 x 9/16" | 1 x 9/16" |
| Spindle Motor: | 3 HP | 3 HP | 2 HP |
| Spindle Speed: | 2850 RPM (50 Hz)3420 (60 Hz) | 3500 RPM | 3500 RPM |
| Grinding Wheel: | 8"x1"x1-1/4" | 8"x1"x1-1/4" | 8"x1/2"x1-1/4" |
| Vertical Graduation: | 0.0002" | 0.0005" | 0.0005″ |
| Vertical Revolution: | 0.050" | 0.100" | 0.100" |
| Auto Downfeed Increment: | N/A | 0.0001″ 10 Steps | 0.0001″ 10 Steps |
| Spindle To Table: | 21" | 21" | 19.7" |
| Net Weight: | 2900 LBS | 3696 LBS | 2970 LBS |
| Gross Weight: | 3300 LBS | 4246 LBS | 3520 LBS |
| Accesories |
|
|
Standard | Optional |
|
| Grinding Wheel | S |
|
|
| Wheel Flange | S |
|
|
| Wheel Balancing Base | S |
|
|
| Wheel Balancing Arbor | S |
|
|
| Diamond Table Dresser Base & Tip | S |
|
|
| Leveling Bolts & Pads | S |
|
|
| Work Light | S |
|
|
| Toolbox w/ Tools | S |
|
|
| DRO System |
| O |
|
| 10×20 Electric Chuck w/ Control |
| O |
|
| 10×20 Permanent Chuck |
| O |
|
| 10×20 Electric Chuck & Control |
| O |
|
| Paper Filter & Magnetic Separator Coolant System |
| O |
|
| Extra Wheel Flange |
| O |
|
| Overhead Parallel Dresser |
| O |
|
ACE MACHINE TOOLS Co., Ltd, is a specialized exporter and manufacturer of machine tools and accessories with a long history.
Our mechanical products cover more than 80 kinds including lathe, milling machine, drilling machine, grinding machine, power press, hydraulic guillotine, hydraulic press brake, CNC & automotive machines and so on.
Our customers are widespread in more than 30 countries including U. S. A., Germany, Spain, France, England, Greece, Finland, Norway, Canada, south America, Middle East, Australia, Africa and southeast Asia etc.

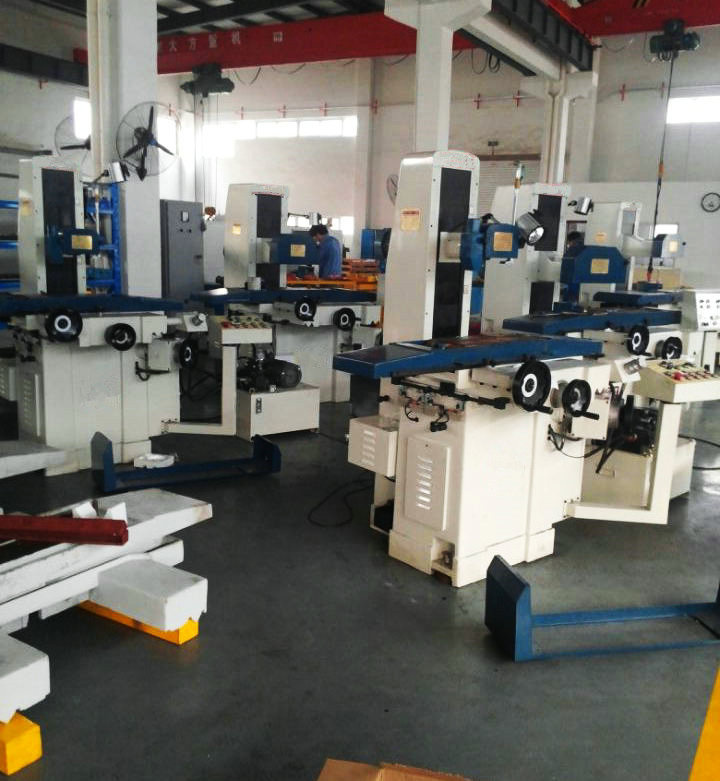

Our principle to all the customers is high quality and good service. We have quality control team who will carefully inspect every machine in workshop before packing.
