Product Specifications
| Prod Model: |
WFRCNC325x25 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automation: |
Automatic |
| Type For Fold-bending Machine: |
CNC Fold-bend Machine |
| Application: |
Machinery & Hardware |
| Type: |
Pipe and Tube Bending Machine |
Product Description

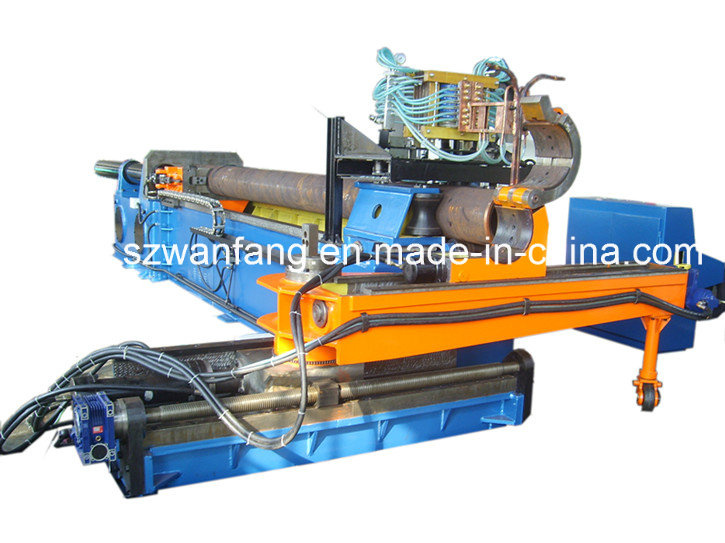

IF bender is use the IF power to local heating the tube ,while the hydraulic cylinder of drive device to promote the tube uniform velocity ,then the heated tube rotate along the rotary apparatus according to the parameters, thereby forming the corresponding tube with radius and angle .the bender composed by drive device, guid wheel device, pre-clamping device, totary device,clamping device, base, intermediate frequency power,hydraulic system and other components. rotary device is the core component, whose role is the heated tube bent to meet the requirements of the radius, with the function of bending, rotating and adjustable diameter.
|
Specification/model |
WFRCNC-219 |
|
Tube OD(mm) |
Φ219 |
|
Max. Bending thickness(mm) |
18 |
|
Bending angle(°) |
0-180° |
|
Bending radius |
3D-5D |
|
Main cylinder stroke(m) |
2 |
|
IF device |
Model |
KGPS-160 |
|
Power(Kw) |
160 |
|
Frequency(Hz) |
1000 |
|
Feeding speed(mm/s) |
0.25-3 |
|
Chuck return speed High-Speed(m/min) |
2 |
|
Hydraulic system working pressure(Mpa) |
10 |
|
Dimension: L*W*H(m) |
6*1.5*1.8 |
|
Weight(t) |
15 |
Shenzhen Wanfang Automation Technology Co., Ltd. Is A Tube Processing Equipment Manufacturing Company Collecting Independent R & D Design Production And Sales In A Body.
Our Company Has More Than 30 Years Of Experience In Research, Desigh, Manufacturing And Procesing.
CNC Series Tube Bender Which Is Self-developed Has Been Awarded The National And Provincial Scientific And Technological Progree Award. Our Engineering Staff Has Participated In Customized Of Bending Industry-standard And Revised Of Forging Guide. We Have Repeatedly Solved Difficult Processing Of Shaped Tubes For Domestic And Foreign Customers.
Our Products Are Widely Used In Coach, Shipbuilding, Boiler, Nuclear, Air-condicition, Furniture Manufacturing, Steel Structure, Electric Power, Petroleum, Chemical, Metallurgical And Heavy Machinery Manufacturing Industry, etc.
Our Main Customer Is Domestic And International Famous Big, Medium Companies. Our Quality Control System Strictly Complies With ISO 9001 Standards.
Our Products Are Include: CNC Tube Bending Machine. Hydraulic Tube Bending Machine. Profile Bending Machine. Special Tube Bending Machine. (Intermediate Frequency Tube Bending Machine , Swage Tube Bending Machine)Tube-cutting Machine. Tube-end Forming Machine.
If You Are Interested In Any One Of Them, Please Feel Free To Contact Me. We Warmly Welcome You To Visit Us Anytime.
