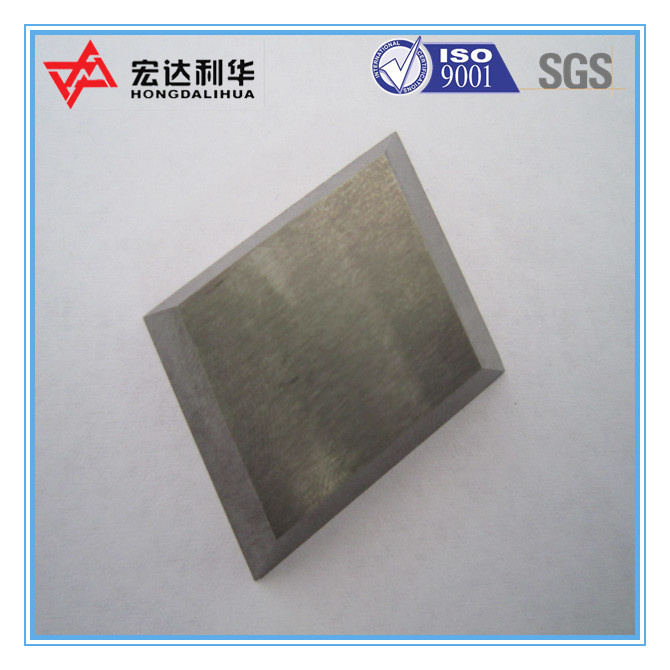

Tungsten Carbide CNC Inserts
Applications
Tungsten carbide inserts have a thin metal blade or disk with a sharp, usually toothed edge. Tungsten Carbide blade is used for cutting wood, metal, or other hard materials. They can be hand-operated or power-driven. Our carbide inserts have used in surface processing of cast irons, colored metal and alloys, as well as nonmetal materials for hard metal, carbide rough turn, rough planning, and precision milling.
| Applicable Machine | Tungsten carbide inserts for turning, milling, threading, grooving tool, cutting tools, etc. |
| Stock | For standard, have enough in stock |
| For non-standard, need to be customized |
| Nonstandard order | Customize as request |
| Packing: | Can laser printing your logo and packing with your label |
Coating:
| CVD or PVD coating or as your require |
| Suitable for steel , cast iron , stainless steel etc materials |
Our Advantages:
1) Business Type: Manufacturer, Factory.
ISO9001:2008, SGS.
Focus on Tungsten Carbide industry more than 20 years.
2) Advanced technology, HIP sintering and precision grinding to ensure the goods performance;
3) 100% Virgin materials;
4) Each product through the strict inspections and confirm to the requirements of the lab parameters;
5) OEM & ODM are welcomed;
6) Small order is acceptable;
7) Flexible payment terms (L/C,T/T, western union, etc);
8) Provide custom made service with customer's drawing; Other size could be offered by your requirements;
9) We make sure to provide you with the best solutions for your individual case. Whether standard items or non-standard items all available;
10) Fast delivery and high quality;
11) Best after-sale service.
Product types of Tungsten carbide CNC Inserts
| Dimensions of Tungsten Carbide Turning Inserts |
| Type | Dimensions |
| CNMG | (ISO) | (inch) | L | ΦI.C | S | Φd | r |
| 090304-DF | 321-DF | 9.7 | 9.525 | 3.18 | 3.81 | 0.4 |
| 090308-DF | 322-DF | 9.7 | 9.525 | 3.18 | 3.81 | 0.8 |
| 120404-DF | 431-DF | 12.9 | 12.7 | 4.76 | 5.16 | 0.4 |
| 120408-DF | 432-DF | 12.9 | 12.7 | 4.76 | 5.16 | 0.8 |
| 120412-DF | 433-DF | 12.9 | 12.7 | 4.76 | 5.16 | 1.2 |
| Type | Dimensions |
| TNMG | (ISO) | (inch) | L | ΦI.C | S | Φd | r |
| 160404-DM | 331-DM | 16.5 | 9.525 | 4.76 | 3.81 | 0.4 |
| 160408-DM | 332-DM | 16.5 | 9.525 | 4.76 | 3.81 | 0.8 |
| 220408-DM | 432-DM | 22 | 12.7 | 4.76 | 5.16 | 0.8 |
| 220412-DM | 433-DM | 22 | 12.7 | 4.76 | 5.16 | 1.2 |
Tungsten Carbide CNC Inserts Grade Information
| Grade Recommendation of Tungsten Carbide Inserts |
| Grade | Applications |
| YBC151 | High wear resistance of the matrix and MT-TiCN, thick Al2O3 and TiN coating. |
| YBC152 | Thick TiCN and Al2O3 coating |
| YBC251 | tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating. |
| YBC252 | Tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating. |
| YBC351 | Tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating. |
| YBG102 | nc-TiAN coating and fine-grained matrix. |
| YBG202 | nc-TiAN coating and fine-grained matrix. |
| YBG205 | Added abrasion resistance and high temperature rare elements ultrafine TiAlN based nano-coating. High layer hardness and excellent resistance to high temperature provide effective protection for the cutting edge. |
| YBG302 | nc-TiAN coating and flexible cemented carbide matrix. |
| YBM151 | Special organizational structure and TiCN, thin Al2O3 and TiN coating. |
| YBM251 | Good toughness and strength matrix and TiCN, thin Al2O3 and TiN coating. |
| YBM253 | With the advance extra fine grain nanometer coating technology, match up with the high toughness gradient matrix. |
| YBD052 | CVD coating(extra thick Al2O3 & thick TiCN), hard matrix. |
| YBD102 | CVD coating (thick Al2O3 & thick TiCN) , hard matrix. |
| YBD152 | CVD coating (thick Al2O3 & thick TiCN), hard matrix, it is anti-stripping. |
| YBD252 | CVD coating (middle thick Al2O3 & thick TiCN), hard matrix. |
| YNG151 | Uniform particle refining organizational ceramal alloy, homogenizing organizational & ring form phase structure, Strengthen bond phase,grain boundary composition design. |
| YNG151C | Physics weather deposit (PVD) coating, high toughness ceramal matrix. |
| YD101 | Fine particle hardness phase WC and bond phase Co. |
| YD201 | Middle particle hardness phase WC and bond phase Co. |
1,groove cutting tool, grooving and turning insertsYBG302 ZPGS0402-MG
2,parting inserts, carbide cnc parting and grooving tools, grooving and turning insertsYBG302 ZPGS0402-MG
3,cemented carbide inserts for cutting tools,cnc turning inserts,YD201 VNMG160404-PM
4,YD201 VNMG160404-PM,cnc carbide cutting tools, carbide indexable turning milling inserts
5,groove cutting tools,cnc carbide grooving tools,grooving inserts YBG302 ZTGD0404-MG
6,CCMT tungsten carbide tipped turning tool,tungsten carbide inserts for turning tools
7,CCMT tungsten carbide cermet cnc inserts for metal lathe cutting tools
8,ceramic turning inserts,cnc tnmg turning inserts YBC351 TNMG160404-DM
carbide indexable tnmg turning inserts YBC251 TNMG220408-DM
9,cemented carbide brazed tips
10,tungsten carbide cnc indexable insert for cnc machine
11,tungsten carbide cnc insert, CVD/PVD cnc insert,cnc cutter inserts
12,YG8 A320 cemented carbide brazed tips for making and periphery turning tools
13,YG8 k20 cemented carbide A325 tips for brazing
14,YG8 k20 cemented carbide brazed tips A330
15,YG8 cemented carbide brazed tips C306 for making parting tools and grooving tools
16,YW2 M20 tungsten carbide A320 tips for brazing
17,non-standard tungsten carbide welding inserts for customized available
18,Walter iso indexable carbide turning inserts CCGT/CCMT
19,Iscar tungsten carbide cnc carbide inserts/cemented carbide inserts for cutting tools
20,Iscar tungsten carbide CNC index carbide inserts coated with cvd/pcd
21,Kennametal tungsten carbide indexable insert for cnc machine
22,CCMT cemented carbide and cermet inserts for metal lathe cutting tools
Other Tungsten Carbide Products in Lihua:
Tungsten carbide tire studs
Carbide bars / rods / strips /tubes
Carbide strips / plates
Carbide rings/rolls/balls
Carbide sleeve/nozzles/studs/bottons
Cutting tools/Inserts
Tungsten carbide CNC Inserts
Rock / Oil / Gas / Mining drilling bits
Carbide Saw blade cutter
Tungsten carbide mould / die
Holders and cutter heads
Company Brief Introduction
Zhuzhou Lihua Cemented Carbide Co., Ltd was established in 1990, Based depend on good production advantage, and company with produce, research and development, sales, technical service together that have many rich production experience of the tungsten carbide products. Also have strong scientific research and development team and technicians, advanced quality inspection division, senior engineer, etc of the tungsten Carbide production.
Our company mainly products such as carbide rod& tubing product, carbide strips &plates, carbide bars, carbide saw blade, carbide end mills, carbide drill bits, Carbide welding inserts, carbide CNC inserts, carbide woodworking tools, tungsten carbide powder, some non-standard tungsten carbide products and different other various type of the tungsten carbide products etc.
We have independent developmented YS series of tungsten carbide grade that the grade belong the micro hole grain of tungsten carbide, good abrasion resistance, impact resistant capability is strong, affinity resistant capability is strong that also has good heat conduction performance and so on characteristic.
Lihua is committed to the principle of "customer first, fast delivery and good after-sale service ". If you have any questions and any demand of tungsten carbide, please contact us without any hesitation. We promise you not offering only our qualified products, but also designing, prompt delivery, the most competitive prices and all solution.
