CNC Turret Punch Press CNC Machine Cutting Tools

Product Specifications

Prod Model:	SE-2510
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Punchine Machine Name:	Closed Type Hydraulic CNC Turret Punching Machine
Configuration:	Yaskawa, Rexroth, Omron, Airtac, Fagor
Hole Shape:	Round, Square, Rectangle, Louver
CNC Controller:	Spain Fagors
Processing Plate Thickness:	0.5-6 Mm Carbon Steel
Punching Frequency:	300-600 Hpm / Min
Advantage:	High Punching Speed, High Accuracy
Usage Industry:	Sheet Metal, Iron
Index Type:	Auto-Index
Size:	AMD-357
Type:	Turret Punching Machine
Controlling Mode:	CNC
Automatic Grade:	Automatic
Power Source:	Mechanical Drive
Precision:	High Precision
Certification:	BV

Product Description

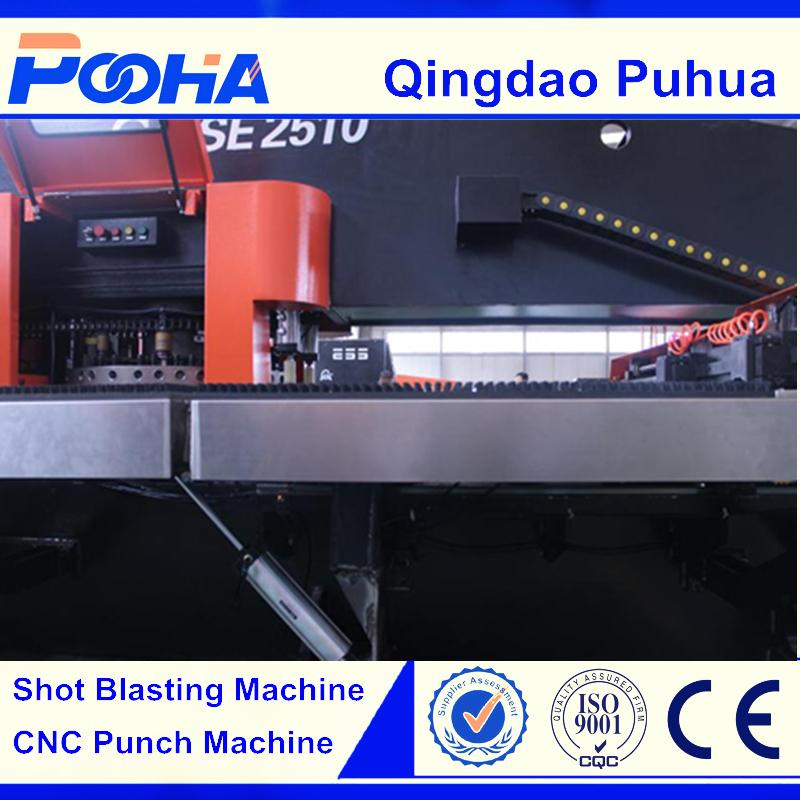

SE-2510 CNC Turret Punching machine, cnc machine, punch press

Why Choose us?

We are China Leading CNC Turret Punching Machine Manufacturer.

Alibaba Assessed 5 years Gold Supplier.

Inspected by the Inspection Institution of Bureau Veritas Certification.

100% QC inspection Before Shipment.

Best Quality & Best Service with Competitive price.

Station	Size	Station No
		16	24	32
A	3mm~12.7mm	8	12	16
B	12.7mm~31.7mm	4	8	12
C	31.7mm~50.8mm	2	2	2
D	50.8mm~88.9mm	2	2	2

Four advantages strategy:

1. The activity of designing strive for the maximum cost performance.

2.According to the requirement of users, design & develop personal product & service.

3. According to the requirement of users, develop the best solution, minimize the cost of use
rs.

4.24-hours efficient &confederate after sale service in the country.


Main Composition of cnc machine
1). Servo motor
Adopts servo motor and servo driver(YASKAWA), good stability.

2). Ball screw
Adopts Taiwan TBI big guide high precision the ball screw.Specially made steel nut,
processing accuracy is high, speed is fast.

3). Linear guide rail
Imported Taiwan, with widened flange type slider,the equipment run more smoothly. To sure high precision,
long service life.

4). Pneumatic clamp
Adopt full float type pneumatic clamp, when stamping with plate float from top and bottom, effectively elimin
ate the stamping spare force, to improve the processing accuracy;

5). Mold base structure
Adopts mold base can be split with Japan AMADA, can be changed mold rapidly, just need to spend 30s, c
onnect conveniently.

6). Turret structure
Adopts standard AMADA thick turret mold, nodular graphite casting integrated disc, thickness is 80mm, effe
ctively prolong the service life of mold.

7). Mold distribution and parameter
With standard AMADA international general mold, standard configuration 85 series, after-sales service and maintenance are very convenient and high popularity.

8). Second positioning function
With second positioning function, match up American PROCAM cnc turret punching machine special softw
are, can achieve without dead zone processing. Enhance productivity, save the plate and costs.

9). Feeding platform
Workbench adopts hard brush, can reduce noise and vibration and can protect surface of the plate;
Big interval between lathe ultra wide guide rail. Big lathe span, horizontal and support performance are bett
er. Fully ensure the accuracy of processing large plate, under the condition of high speed feeding more bal
ance;

10).Integrated design of auxiliary and main platform, the auxiliary platform can move around with plate, Red
uce 30% of the friction force between the plate and brush platform;

11). Automatic centralized lubrication system
All lubricating points can realize automatic centralized lubrication. Reduce movement noise, enhance mach
ining precision, effectively prolong the service life of equipment



SE-2510 cnc machine paremeters:

Specification	Unit	Model Specification
		AMD-SE2510	AMD-SE3510
Punch Force	KN	200	300
Max. Processing Size	mm	1250*2500	1250*2500
		1250*5000	1250*5000
		1500*5000	1500*5000
Max. sheet Thickness	mm	4	6
Max. Punch Hit	hpm	900	900
Max. Traversing Speed	m/min	80	80
Turret Speed	rpm	40	40
Hole Accuracy	mm	±0.1	±0.1
Max. Punch Diameter	mm	88.9	88.9
Number of stations in turret	/	24/32	24/32
Air Pressure	mpa	0.8	0.8
Controlled  Axis	No.	5(X,Y,C,P)	5(X,Y,C,P)
power rating	KW	30	35
Outline Dimension	Mm	4490*5300*2110	4490*5300*2110
Machine Weight	Kg	13000	14000

The advantages of our cnc machine cnc turret hydraulic punching machine:

1.Au-to index station function effectively solve the irregular angle's shear difficulties.

2.Adopts Siesmens CNC special system and match up digital AC servo motor to make if fast and reliable.

3.O type steel plate welding press, the whole pass by tempering treatment to own good rigid and hardly

deformation.

4.High decision digital hydraulic main transmission system, speed is faster, stroke is adjustable.

5.Equipped with the second positioning function, processing, the clamp automatically avoid, which can

achieve without dead zone processing.

6.The transmission system use the international brand with high precision, long guide screw, linear gui

de rail are high precision and good performance.

7.Main pneumatic components, electric components, hydraulic components adopts international well-

known brand products,which makes the punch press performance more perfectly.

8.Uses AMADA standards casting integrated type thick turret mold disc and standards thick turret inter

national molds.



cnc machine Feature:

Servo Driven CNC turret punching machine cnc machine punch press

1. Control system: Adopts Spain Fagor 5 axis CNC system,  half closed loop control, Eston CNC punch servo module, can realize 4 axis control at the same time. Equipped with USB, R232 communication interface which can realize the front desk, backstage programming.

Software:Adopts CACKAD software can realize Auto CAD graphics automatically converts processing procedure, bring their own mold library management, automatic optimization of processing path, realize plank material automatic relocation, plate automatic relocation, no dead zone for processing

2. Stamping body:Fuselage is O type Steel welding, the whole pass by tempering treatment, make sure the equipment good appearance and long-term stability.

3. Turret Organization:Adopt high strength nodular cast iron to cast into integral thick turret mold plate, thickness is 80mm, through heat treatment to get rid of internal stress, rigid good, precision stability, impact resistant ability good; greatly improving mold service life;

4. Mold: adopts AMADA standard thick turret mold, convenient for daily maintenance and procurement.

5. Motor/drive: Aston high-power servo motor and servo drive system, speed 3000 r/min, high feeding speed, high precision.

6. The transport Ball Screws: Germany Ball Screws, attainability 5 grade precision.

7. Guide Rail: Taiwan Linear Guide, With Wider Flange-type Slider to ensure the equipment operating more stability.

8. Orientation Cylinder:Import Korea brand cylinder to achieve precise positioning of the purpose of locking.

9. Reducer: Precision turbine worm reducer, with band-type brake function, reduce the impact to the servo motor after the mold high-speed operating, at the same time guarantee the turret high-speed positioning accuracy;

10. Clamp:Adopt float type pneumatic clamp, can be together with plates float, avoid plates distortion;

11. Working table: High quality brush steel ball mixed countertops, greatly reduces the friction plate movement, effective protection plate surface;

12. Lubricating system:Adopt the automatic control system of oil station, according to the preset time, guide rail, screw etc main transmission mechanism can realize automatic centralized lubrication;

13. Main electrical components:relays, photoelectric sensors, contactor, etc all adopt the Omron and Schneider brand, long-term guarantee the safety of the device;

14. Rotating station: Adopt the standard structure of worm and worm wheel rotating mechanism, the whole mechanism is processed by high precision grinding processing equipment, fully guarantee the centring of upper and lower mold after long-term rotation of rotating station, increase the service life of mold, effectively solve the difficulty of arbitrary Angle punching and trimming.

15. Stamping main servo system: Adopting ESTON high-power servo motor, punch frequency up to 900 times, punch force stable, using water cooling, the stability is higher;


Our service of CNC Turret Punching machine:

1	Reply your inquiry in 12 working hours.
2	Experienced staffs answer all your questions in time.
3	Customized design is available.
4	Exclusive and unique solution can be provided to our customer by our professional engineers and staff.
5	Special discount and protection of sales are provided to our distributor.
6	We are professional manufacturer of sCNC punching Machine. Have a professional design team with more than 10 years design experience engineers, competitive with good quality.
7	As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.
8	Prompt delivery, site installation and commissioning.

Closed type hyraulic CNC Turret Punching machine:




After-sele service:

1. Installation and commissioning issue: We will send 1-2 technicians to assist with machine installation and commissioning, customer pays for their tickets, hotel and diet.
2. Warranty time:12 months from date of     commissioning completion, but no more than 18 months from B/L date.
3. Supply full english documents: including general installation drawings, pit design drawings, manual book, electric wiring diagram, electric manual book and maintenance book, etc.
4. Exported experience : Many countries, such as Egypt, Qatar, UAE, India, Venezuela, Algeria, Sudan, Paraguay, Costa Rica, etc.

Shipping terms	FOB Qingdao
Package	Standard container with stretch film.
Payment	T/T, L/C. 30% deposit, 70% balance before delivery
Delivery time :	20-35 workday

8	We are China Leading CNC Turret Punching Machine Manufacturer.
9	Alibaba Assessed 5 years Gold Supplier.
10	Inspected by the Inspection Institution of Bureau Veritas Certification.
11	100% QC inspection Before Shipment.
12	Best Quality & Best Service with Competitive price.

CNC Turret Punching Machine FAQ:

In order to choose the most suitable machine, please tekk me these informachine:

1. The material of your sheet.
2. What's the shape of your hole.
3. The size of your sheet, the length, width, thickness.

? Production time: 25-30 workdays.

?  Installation and commissioning time: 7-14 days.

? Installation and commissioning issue: we will send 1-2 technicians to help with machine installation and commissioning for our CNC punching machine, customer pays for their tickets, hotel and diet. Salary is USD95 per day per person.

?Warranty time of CNC punching machine:12 months from date of commissioning completion, but no more than 18 months from date of delivery.

? Payment term: 30% as down payment, 70% balance before delivery or L/C at sight.
