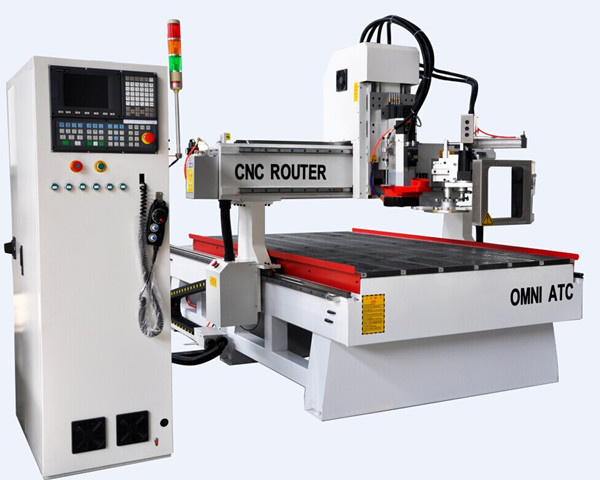

CNC Wood Engraving Machine CNC Router Woodworking Center 3D Furniture Sculpture Wood Carving CNC Router Machine

Product Specifications

Prod Model:	OMNI 1325 ATC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Machine Name:	CNC Wood Engraving Machine CNC Router Woodworking
Working Area:	1300*2500*200mm
Table Size:	1500*3040mm
Table Surface:	Bakelite Table Combined T-Slot,Vacuum Table
Spindle:	Italy Hsd Aircooling Spindle
CNC Control System:	Taiwan Syntec Controller
Driver And Motor:	Japan Yaskawa Driver and Motor
After-Sales Service Provided:	Engineers Available to Service Machinery Overseas
Drive System X,Y Axis:	Rack and Pinion,Hiwin Rail Linear Bearing Square
Drive System Z Axis:	Taiwan Tbi Ballscrew,Hiwin Rail Linear Bearing
Spindle Layout:	Horizontal
Spindle Number:	Single-Spindle
Feed Mode:	Mechanical
Controlling Mode:	CNC
Certification:	CE
Color:	Milk White

Product Description

cnc wood engraving machine CNC Router woodworking center 3d furniture sculpture wood carving cnc router machine

Perfect Model for materials from sheet to Large Blocks of Foam for Mold making; Heavy Duty, Thicken Steel Tube Frame with Quenching Treatment; World Famous Servo motor, Spindle, Driver; Advanced Controller Syntec controller with Ethernet interface.
The cnc router could be used for composite fabrication, aluminum and non-ferrous metal engraving and cutting, architectural model, plastic, acrylic, PVC, wood board etc cutting and engraving, cabinet, production, nested based machining, solid surface processing, three-dimensional pattern/mold making, wood carving etc.


Furniture: Ideally suitable for processing cabinet door, wooden door, solid wood furniture, panel wood furniture, windows, tables and chairs, etc.
. Well-suitable for processing panel, insulating materials, plastic, epoxy resin, carbon mixed compound, etc.
. Decoration acrylic, PVC, density board, artificial stone, organic glass, soft metals like Aluminum and Copper.
. Designed to meet diverse and complicated processing requirements, highly versatile with routing, cutting and other functions.
. Features world top class mechanical and electronic components, e. G, Japanese servo driver and gear reducer, Italian high power automatic tool changing spindle, French low-voltage electrical components, which guarantee stable performance and high finishing quality.
. 8-slots carousel tool changer, tool changes to be performed with 8 seconds.
. Vacuum worktable fitted with aluminum alloy bars and suction cups is rigid yet, flexible for various configurations. Cropping the full sheet to your ideal size, routing, cutting, and milling-multiple functions, all in one.

Technical Parameters
Machine model	OMNI Automatic Tool Change CNC Router
ATC type	OMNI CATC/LATC with 8 tool magazines(with 8 pcs ISO30-ER32 tool holders)
X,Y,Z working area	1300*2500*200mm / 1500*3000*200mm
Spindle	Italy HSD Auto tool changer aircoling spindle: 9kw
Inverter	Japan Omron frequency inverter
X Y Z axis drive and motor	Japan YASKAWA Servo drive and motor 850w
Vacuum table	Bakelite table combined T-slot extrusion, Vacuum table
Vacuum pump	Dry vacuum pump / German Backer vacuum pump
Dust collector	3.0kw Dust collector with two cloth bags and Dust hood

Frame	Big thickened Square Steel Square Tubes, thickness is 8mm
X, Y structure	Helical Rack and pinion drive, Taiwan Hiwin rail linear bearing 25mm(HGR25)
Z axis structure	Taiwan TBI ballscrew 25mm , Taiwan Hiwin linear rail 25mm(HGR25)
Max Rapid Travel Rate	50,000mm/min
Working voltage	AC220V/380V , 50Hz/60Hz
Control system	Syntec control system 6MD from Taiwan
Software	Type3 original English version / Artcam English version

Welcome to be the partner of OMNI.
