Mintech SR series CNC router machine is the producing and processing equipment specially designed for advertising signs, exhibition display, LED light guide plate, LED sign letter, acrylic products, insulation materials, aluminum, copper, such as sheet metal industry, by virtue of the entire steel frame structure, high precision imported skew rack and import guide rail coordinates the transmission table is fixed, high standard design, won the award in the manufacturing industry in the "most popular", also won the majority of users praise!
SR series standard features:
1. WEIHONG friendly user operating system.
2. Imported linear guide rail.
3. Imported high precision transmission cable rack, gear, stable running fast.
4.25000-30000mm/ minutes idle fast movement.
5. Automatic tool calibration system.
6. USB and network file transfer function.
7. Table is fixed, Longmen frame moving.
8. Power requirements: 3P 380V/50HZ.
SR Series machines technology parameter:

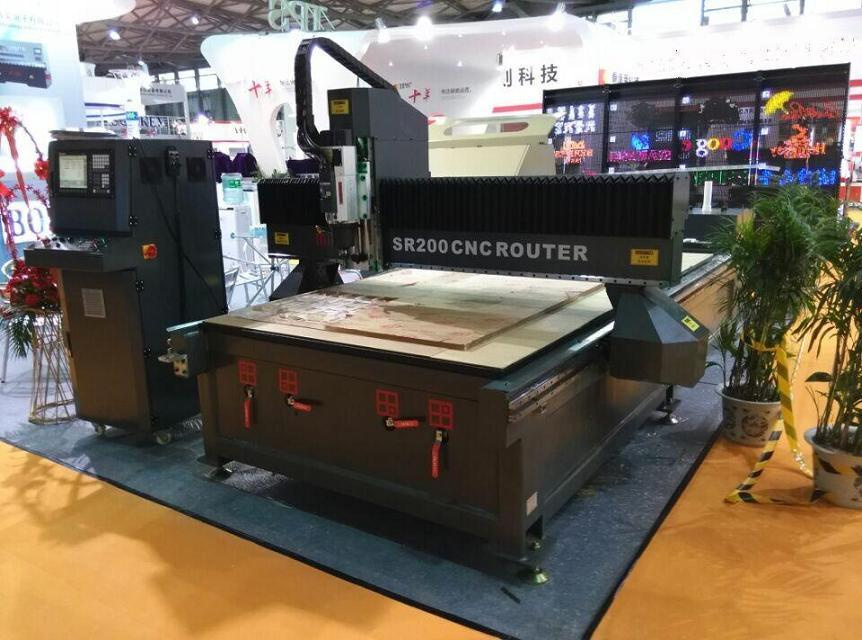

1. Type: Mintech SR-200 CNC router machine
2. Working area: 1500x 3000mm;
3. The Z axis beam to the table distance: 150mm;
4. Z axis travel: 300mm;
5. Repeat positioning: +/-0.03mm;
6. Cutting speed: 25000mm/min;
7. Moving speed: 30000mm/min; 8. Drive system: X, Y, Z adopts brushless servo drive, high precision skew rack and import guide rail coordinates;
9. The clamping way: Four vacuum adsorption partition table
| No. | Content | SR-200 |
| Remarks |
| 1 | Travel | X-axis working area | 1500 |
|
|
| Y-axis working area | 300 |
|
| Z-axis working area | 150 |
|
| All Machine size (mm) | 3970x2300x2000mm |
|
| 2 | Parameter | X\Y\Z axis motion positioning accuracy | +/-0.03 |
|
|
| X\Y\Z axis Repeat positioning accuracy | +/-0.03 |
|
| Idle speed | 30000mm/min |
|
| The maximum processing speed | 25000mm/min |
|
| Working voltage | AC380V/50HZ 3PH |
|
| 3 | Spindle | Main properties | HSD Air cooling |
| Italy(Automatic tool change) |
| Spindle speed | 24000RPM |
|
| Spindle power | 9KW |
|
| Taper of spindle | ISO30ER32 |
|
| Spindle balance level | G2.5 |
|
| 4 | Rail | Linear guide rail | PMI |
| Taiwan |
| 5 | Rack | Oblique rack | WMH |
| Germany |
| 6 | Bearing Seat | The bearing seat | Imported |
| Taiwan |
Dongguan Mintech Electronic Co., Ltd. Was founded in 2001 June, the independent brand MINTECH, is a professional engaged in R & D and large CNC router machining center, the high precision CNC engraving machine, acrylic diamond polishing machine, laser cutting machine, and other automated production equipment manufacturing, sales, technical support for the integration of high-tech enterprises. Over the years, manufacturing production and processing equipment is committed to advertising signs, exhibition display, LED light guide plate, LED luminous characters, acrylic products industry. We have a professional R & D team, and constantly develop manufacturing to meet the production needs of customers of the production equipment, continuous technical improvement of products to provide the highest cost-effective production equipment for the user; Perfect after sale service system, to provide high quality and timely technical service support to the customers; Advanced manufacturing and quality guarantee system, ensure product delivery the period and quality; After years of efforts, the brand MINTECH products are sold all over the world, has been recognized by our customers.
