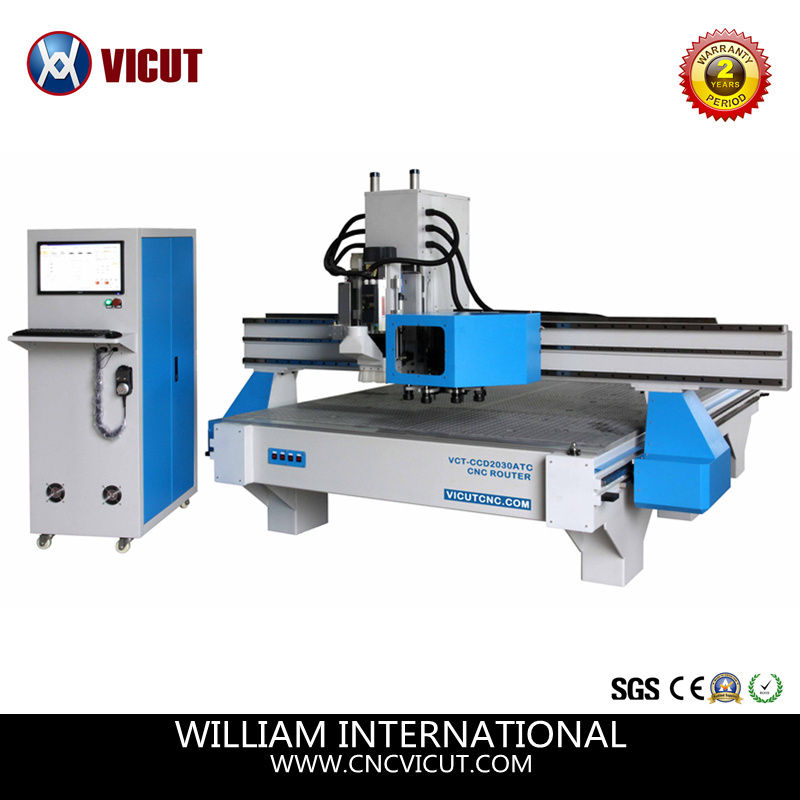

CNC Woodworking Machinery CNC Router CNC Engraving Machine (VCT-CCD2030ATC8)

Name: CNC Woodworking Machinery CNC Router CNC Engraving Machine (VCT-CCD2030ATC8)
Brand: china-manufacturer-directory.com
SKU: 744345855
Availability: InStock
Rating: 4.9 (68 reviews)

Price:	US $ 5035-15100/Piece
Trade Terms:	FOB,CIF,others
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

CNC Woodworking Machinery CNC Router CNC Engraving Machine (VCT-CCD2030ATC8)

Main Features:
1.      With CCD camera and software, this machine can CUT IMAGES on printing boards;
2.      Rotary ATC tool changing system, 8/10pcs tools station. Enable to work on different materials with changing tools within 2 seconds.
3.      9KW Italy HSD ATC spindle, RPM24000. High accuracy and stable quality;
4.      Heavy duty machine body, with sand inside of the square tube, makes the whole machine weight more than 2.5tons, guarantee the high working accuracy

Applications:
1) CNC Engraving and Cutting: processing wood, acrylic, MDF, ABS board, foam board, carton board, aluminum board, etc. making doors, windows, kitchen cabinet, acrylic stand, decoration board, signs, guitar and musical instruments, making mini acrylic letters, etc.
2) Contour cutting: Cut Images on printing board.

Technical Parameters:

Model	VCT-CCD1325ATC	VCT-CCD1530ATC	VCT-CCD2030ATC
Working Size	1300 x 2500 x 200mm (4.3 x8.2 x0.66ft)	1500 x 3000 x 200mm (4.9 x9.8 x0.66ft)	2000 x 3000 x 200mm (6.6x9.8 x0.66ft)
Spindle Power	(12HP)9KW HSD ATC spindle
CCD Camera	With CCD camera on Z axis head for contour cutting
Motor Driver	Japan Yaskawa/Panasonic servo motor driver
Tool Stock	8/10 Tools
Structure	cast square tube (sand inside to increase the weight)
Transmission	XY axis Germany Helical gear rack and reducer, Z axis high accuracy TBI ball screw
XYZ Guiding Rails	PMI square rails
Machining Accuracy	<0.03/300mm
Maxi Working Speed	24000mm/m
Spindle Speed	6000-24000rpm
Data Transmission	NC STUDIO NK-1000 CCD SYSTEM
Format of instructions	G code or HPGL
Voltage	AC 380V/60Hz
Net Weight	1800KG	2200kg		2500kg
Packing size	3860x 2230x1900mm (12.7 x7.3 x6.2ft)	4200x2230x1900mm (13.8x7.3 x6.2ft)		4200x2230x1900mm (13.8x7.3 x6.2ft)

Machine Details:
1. Adopt NC Studio controller model NC-1000 as controller. This control system including CCD camera and software, it can mark the registration for cutting the printing photos. With removable handle wheel, you can easily control the movement of machine.

2. Use Italy Original HSD 9KW (12HP) ATC Spindle ES929 with RPM24000 rotating speed, ensure high accuracy of working performance. Compatible with HSK F63 tool holder 8 pieces, can change the tools within 2 seconds.

3. XYZ axis use Taiwan PMI linear square rails (Diameter is 25mm), X axis use 3 linear rails and bearings, ensure high accuracy and stability. XY axis use Germany helical gear rack and reducer on Y axis to reduce the vibration, no noise during working.

4. XYZ movement driven by Japan Panasonic servo motor and drivers A5 type. World famous brand ensures the high quality and worldwide service.

5. Vacuum inhaling table use 30MM high quality PVC board, milling into 8 vacuum zones, 4 buttons control each 2 zones. With 10pcs aluminum holder part fixed on the vacuum table, you can use clamps to hold materials according to your real practical use.

6. With oil/alcohol mist sprayer cooling system, you can cut acrylic with smooth cutting edge; protect cutting bits for working on aluminum and copper. Tool sensor enables adjustment of cutting height much more easier.

Prod Model:	VCT-CCD2030ATC8
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Size:	2000 X 3000 X 200mm
Spindle Power:	Hsd Es929 9 Kw Air Cooling
Driver:	Japanese Yaskawa Servo
Transmission:	Xy German Helical Gear Rack, Z Tbi Ball Screw
Xyz Guiding Rails:	PMI Square Rails
Engraving Speed:	24000mm/Min
Data Transmission:	Connect with PC Directly (Original Nc Studio Cont
Support File:	G Code or Hpgl
Voltage:	380V/60Hz
Tool Diameter:	4,&6, &8, &12mm
Spindle Layout:	Vertical
Spindle Number:	Single-Spindle
Feed Mode:	Mechanical
Controlling Mode:	CNC
Certification:	RoHS

CNC Engraving and Cutting Solutions Provider!

WILLIAM INTERNATIONAL is a Chinese manufacturer of CNC router, laser and cutting plotter, having its own manufacturing base and official license for export & import business. We focus on overseas market of CNC machinery and accessories, to provide the customer with an affordable solution without sacrificing options or function.

We are very appreciated for that hundreds of dealers and end users from different countries have been our business partners. Some have cooperated with us for five years more. For these nice people, the relationship between us become more and more closed, from partners in business to real friends in life, even relatives.

Professional Team:

We have a 150 people team. More than 80 percent workers of our factory have over 5 years manufacturing experience in CNC industry. 12 experienced engineers work in R&D department. More than 20 marketing sales have excellent skills both in international trading and product technology. All the service engineers have experience in providing technology service in overseas market. We have been building a professional team, through the strengthening of internal management and external learning.

Reliable Quality:

Cooperate with top suppliers of CNC spare parts in the world, such as Italy HSD, Japan Panasonic, Taiwan Syntec, Taiwan PMI, TBI, France Schneider, etc. Construct modern production plant, make specialized division of labor, introduce advanced technology and equipment, and realize scientific process layout and production management.

High Level Service:

We have a service engineering team with years of experience who can provide technical support, remote training and door-to-door service. Help is always just one call or email, then we can communicate\analyze and provide the suitable solution promptly. Also you can submit problems on our official website.

Location & Transportation:

Our factory is located in Hefei, Anhui province, which is the core member of the Yangtze River delta economic zone in China. Three hours by fast train from Shanghai. The Xinqiao International Airport makes our heart more near with only 40 minutes by car.

Expecting our friends to check and test equipments for your specific applications and requirements.
