CNC10-20z, CNC Woodworking Machine Tool
| Price: |
US $ 10500/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |

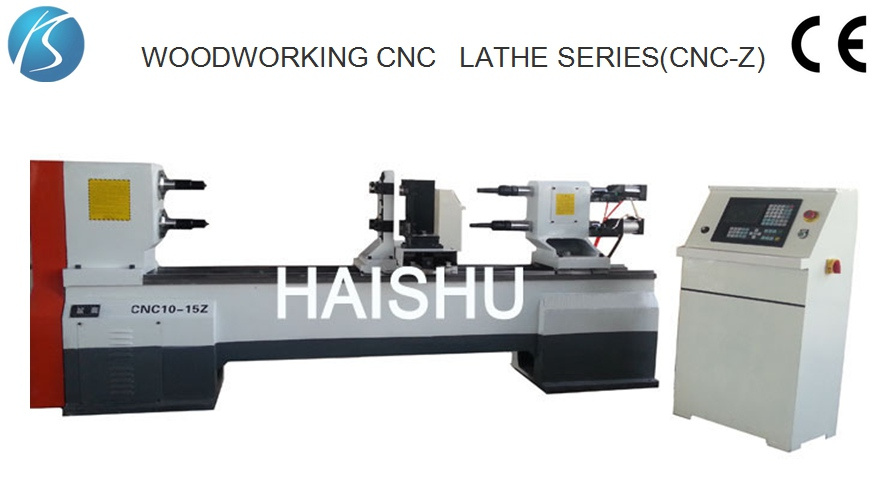

CNC-Z series woodworking CNC lathe
Main features
1. Linear guide
2. Two-spindle
3. CNC control, stepper motor drive
Main parameters
Two spindle center distance: 200mm,
Spindle diameter: Φ60 mm,
Spindle head: M42×2
2. When two spindle machining at the same time, maximum diameter:Φ195 mm
3. When only the above spindle machining, maximum effective diameter:Φ450 mm,
4. When only the above spindle machining, maximum theoretical axis diameter:Φ500 mm
5. Minimum setting unit: 0.01mm
6. Maximum feed speed 1000 / 6000mm / min
8, Spindle motor power 4-5.5kW (Frequency)
Main configuration
1. CNC system
2. Follow rest
3. Rotatable turret
4. Chuck
5. Follow rest set
6. Tool
7. Blow gun
8. Hex wrench
9. 36 wrench
10. Rotary thimble
11. Dimensions and max length
| Model | Dimensions | Max processing length |
CNC10-10Z
| 2400×1000×1300 mm | 1050mm |
| CNC10-15Z | 2900×1000×1300 mm | 1550mm |
| CNC10-20Z | 3400×1000×1300 mm | 2050mm |
| Prod Model: |
CNC10-20Z |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: |
CNC Engraving Machine |
| Usage: |
Woodworking |
| Power: |
Small Power |
| Drive Type: |
AC Servo Drive |
| Certification: |
CE |
| Laser Type: |
Semiconductor |
| Control: |
CNC |
| Current: |
AC |
| Condition: |
New |
| Two Spindle Center Distance: |
200mm |
Taian Haishu Machinery Co., Ltd. is a professional production mechatronic product, collection development, manufacture, sales of high-tech enterprises. Company under the two divisions: One is the CNC machine tools division, the leading product is the "haishu" brand of CNC lathes and machining centers; One is the test equipment division, the leading product is "Taishanhaite" brand common rail test bench and injectoin pump, fuel injector test bench. Founded in March 2001, covers an area of 15000m2, building area of 8000m2, fixed assets 16 million yuan(RMB), has passedISO9001: 2008 international quality management system certification and European CE certification. The company has strong technical force, with a group of young and promising in the machine and test rig design and manufacture, electrical design and application of CNC technology and software development expertise and skills. Advanced 2D and 3D CAD, document management to achieve the PDM. Product innovation, Equipment CNC, Management information, Which has become the industry technology leader.
The company has a Ministry of Internal Trade and the Ministry of Foreign Trade, with independent import and export rights. The products are sold to more than 20 domestic provinces, cities and autonomous regions, and exported to 30 countries including: USA, Britain, Germany, Italy, Turkey, Greece, Sweden, Bulgaria, Romania, Denmark, Czechoslovakia, Lebanon, New Zealand, Australia, Peru, Ecuador, Colombia, Chile, Russia, Belarus, Lithuania, Bahrain, Korea, India, Indonesia, Malaysia, Iran, Thailand, Philippines, Mongolia.
Main products: 1. Horizontal flat bed CNC lathe, 2. Horizontal slant bed CNC lathe, 3. Vertical CNC lathe, 4. CNC turning center, 5. CNC pipe thread lathe, 6. CNC milling machine, 7. CNC machining center, 8. CNC grinding machine.
Characteristic services: Bear machining overall program design and implementation. Include: Site planning, equipment layout, tooling tool provide, processing program design, remote operation monitoring. Machine shop to achieve unmanned.
The company has many years of experience in development and manufacturing of CNC machine tools, "technology innovation, integrity service" as a business philosophy, with new and old customers at home and abroad in close cooperation and common development.
