Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Closed-Loop |
| Task: |
Program |
| Mathematical Model: |
Linear |
| Signal: |
Continuous |
Product Description

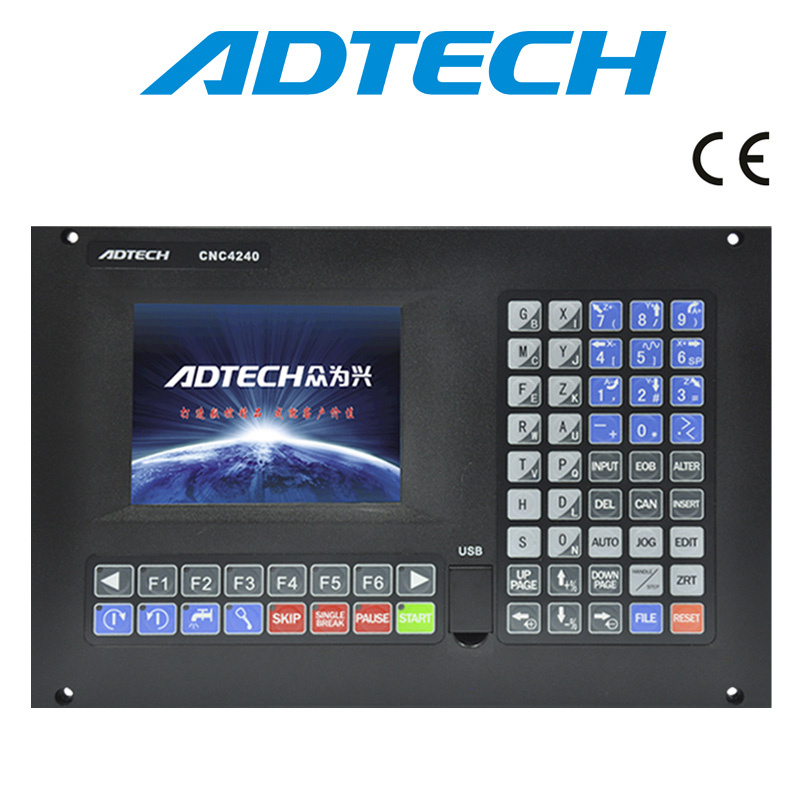

ADT-CNC4240 is four axis CNC milling controller and can be applied in milling machine and automatic equipment. The controller features powerful class-B macro function, 3D simulation preview function, DXF file resolution function etc.
Function
Adopt 32-bit high performance CPU and super-large programmable FPGA, real-time multi-task control technology and hardware interpolation technology, realizing the high-level precision motion control, and the highest speed can reach 12m/min;
Four axes stepper/servo control, capable of performing single-stage motion or continuous motion;
All Optocoupler isolation inputs and outputs, realizing a stable and trusted system; 320¡ 240 5.7¡ ±
LCD display; 256M electronic hard drive, satisfying the processing of workpiece with all kinds of large programs;
Capable of reading USB disk, which can be simulated as electronic hard drive to read, edit, and process the data;
It is convenient to use; with USB, COM communication control function, realizing the data transmission between PC and CNC controller;
Support additional panel, and handheld box operation;
The system adopts tutorial programming, executes international standard G code, and holds several functions such linear interpolation, circular interpolation, screw interpolation, cutter interpolation, backlash compensation, and electronic gear; Open CNC platform, capable of custom-tailoring private system according to the specific requirements;
High speed and stable preprocessing; with 3D figure simulation preview function; with several butted-knife modes such as auto interspaced, cutter aligner, etc;
DXF+G code template function, switching the DXF file to G code for processing automatically;
Powerful class-B macro function, making it more convenient to program;
Macro variable name user-defined, enable you to define your own parameter name;
Capable of processing in any appointed line;
Capable of remembering coordinates in case of power down during the processing;
Featuring multi-grade password function; with complete and intuitive system reflecting the system operation status, users can discover the problems and do troubleshooting easily.
