Product Specifications
| Prod Model: |
CNC5-200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control Mode: |
CNC |
| Cutting Mode: |
Plasma |
| Type: |
CNC |
Product Description
Function and application

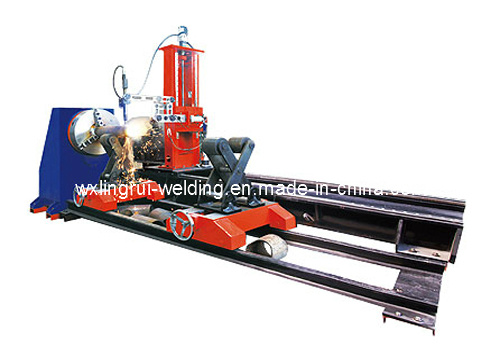

CNC5 Intersection CNC cutting machine is a kind of steel and non-ferrous metal tubes with holes at the intersecting lines, intersecting lines end, elbow (shrimp festival) for automatic calculation and cutting equipment. CNC pipe cutting machine can be very convenient intersection of cutting these parts, without operator computing, programming, simply enter the pipe system tube radius of the intersection, the intersection lines and the welding groove hole;
Feature and Performance
The use of digital control, device control shaft axis, or six-axis the number of different models.
Each model in the realization of control when cutting axis function.
Advanced structure and reliable operation is very simple, suitable for long-term continuous processing, control and stable operation and reliable;
Cuting: Can be selected according to user requirements flame cutting or plasma cutting.
|
Model |
CNC5-200 |
|
Cutting pipe size, diameter input voltage(mm) |
Φ60-Φ600 |
|
Cutting carbon steel wall thickness(mm) |
5-25mm |
|
Tube through the spindle bore(mm) |
Φ200mm |
|
Cutting pipe length(mm) |
1200mm |
|
Number of control axis |
5-axis (or 6 axis) |
|
Maximum stroke(mm) |
X:1000mm Y:600mm Z:400mm |
|
Cutting speed(mm/min) |
10-2000mm/min |
|
Break point(°) |
≤60° |
Maximum rotation angle
ωW: Unlimited rotation(Tube rotation)
ωB:±45(Torch swing angle)
ωA:±45(Torch around the Z axis) |
Special requirement can be customized |
Wuxi Lingrui Welding & Cutting Technology Co., Ltd. is a high-tech enterprise, which designs, manufactures and provides automatic and efficient welding and cutting equipment. Products are widely used in shipbuilding, boiler, chemical, machinery, metallurgy, electric power, wind tower manufacturing, steel and other industries. Our products are exported to Europe, America, Southeast Asia and other countries.
We not only provide customized efficiently automatic welding system, but also can optimize integrate every process, such as prepare welding, welding working, after-treatment welding through various kinds of advanced processing equipment and efficiency logistics. We have a team of engineers who all have skillful welding and cutting knowledge, with designing application and considerate after-sale service, at the same time, our company imported foreign advanced technology and manager system.
Lingrui will keep hard working and provide satisfactory products for our customers. We always abide by the motto of innovation with keen determination, creditable management in pursuit of excellence.
