Shanghai Davey Machinery Co., Ltd. >> CNG Refueling Station Compressor

CNG Refueling Station Compressor

Name: CNG Refueling Station Compressor
Brand: china-manufacturer-directory.com
SKU: 721313485
Availability: InStock
Rating: 4.3 (54 reviews)

Supplier:	Shanghai Davey Machinery Co., Ltd.
Price:	US $ 95000-98000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	DMC1500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Electric:	50 60Hz Option
Pressure:	200-250bar
Motor:	250kw
Capacity:	1500m³/Hr
Media:	CNG
Type:	Reciprocating
Power Source:	AC Power
Configuration:	Stationary
Lubrication Style:	Lubricated
Application:	High Back Pressure Type
Mute:	Mute

Product Description

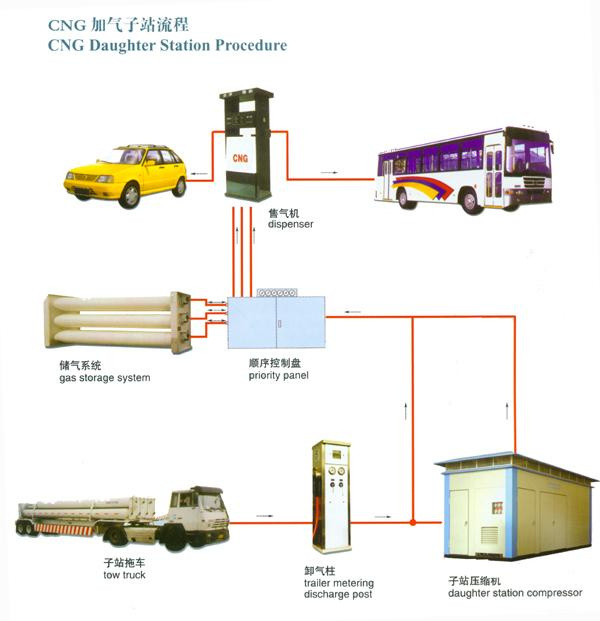

CNG fill station
Refill nature gas vehicle
Easy, safety and save money

GAS: Compressed Natural Gas (CNG)
Model: DMC-1500
Standard Capacity( Nm3/h): 500-1500
Feed pressure Mpa: 0.1
Product Pressure MPa(G): 25mpa/250bar/3600psi
20mpa/200bar/3000psi
Inlet Temp C: 20
Motor: 380V 50Hz 3pH / 230V 60Hz 3pH

Code	DMC10	DMC20
Flow rate	12 Nm3/h 7 cfm	20 Nm3/h 12 cfm
Filling time (60L CNG tank)	65 min --(200bar 3000psi) 70 min --(250bar 3600psi)	36 min --(200bar 3000psi) 45 min --(250bar 3600psi)
Working pressure	200bar /3000psi or 250bar /3600psi	200bar /3000psi or 250bar /3600psi
Inlet pressure	Less than 0.3bar 5psi	Less than 0.3bar 5psi
Engine power	EX 5.5kw/7.5hp 50/60hz three phase	EX 7.5kw/10hp 50/60hz three phase
Oil separator / oil filter	2/1	2/1
Safety valve/ Alarm sensor	1 in final/ option	4 in each stage/ option
Starter/ Time meter	Manual/1	Manual/1
Switch/ Emergency stop	Auto stop/ 1	Auto stop/1
Condensate / gas drain	manual	manual
Discharge hole	2	2
Dimensions (H-W-D)	1100-1000-750 mm	1900-1500-1000 mm
Weight	180 kg	600 kg
Noise level	70 db(A)	75db(A)

DMC---A leading air & CNG compressor manufacturer for over 10 years

---ISO 9001 and CE certified

---Global competitive price and guaranty

---High quality integrated with Italy technology

---Customer over 20 countries in the world

DMC is a manufacturer in air compressor and CNG compressor industry. We have over 10 years experience in export business. Valued customers are at US Canada Mexico Argentine Peru Colombia Germany Italy Finland Poland Australia etc. Complete lines units with CE marked and ISO 9001.

European original screw airend and valve are be used to guarantee quality.

Our products line include:

--compact silent designed series PACK (5-20HP)

--3 in 1 compressor with dryer and air receiver series PACK-TA (5-20HP)

--stationary series SC (25-350HP)

--frequency variable speed drive series VSC (25-180HP)

--diesel portable series DSC (80-330HP)

--CNG gas compressor

Inherit excellence traditions of European compressor design, the core components of DMC compressor, such as screw air end and control valve, are all from European company. The air compressor products has quality performance of reliability, save energy, silent to meet customers more higher demand to compress air, reduce used cost and save money for customers instantly.

100% of our compressors are tested by using the latest inspection equipment and techniques, to assure the highest degree of product manufacturing quality and mechanical reliability.
