Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automatic Grade: |
Automatic |
| Structure: |
Rotary |
| Material Type: |
Liquid |
| Type: |
Count Filling Machine |
| Filling Valve Head: |
Multi-Head |
| Filling Principle: |
Pressure |
| Packaging Type: |
Tank |
| Dosing Device: |
Plunger |
| Packaging Material: |
Aluminum Foil |
Product Description
General description

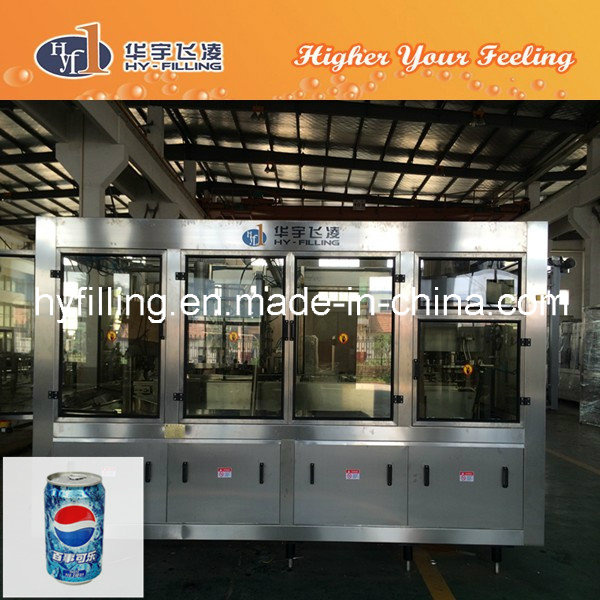

Aluminum/Tin Can filling & sealing machine, it is the integrated filling and sealing equipment for tear-off tin, designed and manufactured on the basis of introducing and digesting and absorbing the filling technology form Switzerland. Its DGF machines in series are suitable for filling and sealing the carbonated drink and beer...
Product Description
1. This equipment is used for filling carbonated beverage in cans, such as beer, cola, energy drinks and soda water.
2. This equipment can be used for different material of cans, such as plastic, iron, aluminum and so on, and the different size of cans is allowed. We can design the euipment according to your requirements
3. It is applicable for equal pressure filler and capper of carbonated drinks in beer and drink industry.
4. It is a pop canned beer in the digestion and absorption of advanced foreign and domestic sealing machine on the basis of independent development of the can filling, sealing unit.
5. Filling and sealing is the overall designed, power system by filling sealing system to Ensure that both the absolute synchronization and coordination.
6. It adopts the advanced machine, electrical equipment, and Pneumatic control technology.
7. It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss.
8. It can equip long-distance control system according to the Customers request.
9. It is the preferred equipment for the medium beer and beverage plant.
Main composition
1) Main motor: ABB
2) Sliding bearing: Igus (Germany)
3) Seals: Busak+Shamban (U. S. A)
4) Pneumatic components: FESTO (Germany)
5) PLC: MITSUBISHI (Japan)
6) Touch screen: PRO-FACE (Japan)
7) Frequency inverter: MITSUBISHI (Japan)
|
Model(DYGF) |
18-4 |
30-6 |
|
Production capacity( bph) |
9000 |
18000 |
|
Number of filling head |
18 |
30 |
|
Number of sealing head |
4 |
6 |
|
Can shape |
200.206.209 |
200.206.209 |
|
Motor power |
3 |
5 |
|
Compressed air |
Pressure:0.3-0.6mpa
Consumption:0.5m3/h |
Pressure:0.3-0.6mpa
Consumption:0.9m3/h |
|
Dimensions (mm) |
3100*1600*2300 |
5200*3400*2500 |
|
|
Item |
Industry standard |
Index |
|
1 |
Filling accuracy |
±2.5mm |
±2mm |
|
2 |
Filling qualified rate |
≥85% |
≥93% |
|
3 |
fluid loss rate |
≤1% |
≤0.8% |
|
4 |
Can loss rate |
≤1% |
≤0.8% |
|
5 |
Cover loss rate |
≤1.2% |
≤1% |
|
6 |
Sealing qualified rate |
≥99% |
≥99.5% |
HY-FILLING, as one of famous beverage and dairy packaging machinery manufactures in China, it is located in Zhangjiagang city which is very near Shanghai with beautiful scenery and convenient transportation. Owning the top-ranking R&D center and more than 20 senior engineers and 30 senior technicians, our products has covered all the domestic markets. Furthermore, we have exported our products all over the world, such as American, Argentina, Brazil, Russia, Poland, Turkey, Iran, South Africa, and Southeast Asia, etc, and more than 600 filling lines running all over the words till to now. We also offer our customers with the best technical plan, superior products, and perfect after-sale service to optimize the process of production, and supply our customers with reliable machinery. With persistent development, now our company is becoming larger and larger, thanks for your support and trust on our machinery. We consider "Exploring the highest technology in machinery industry; Creating a brilliant future in this field" as our company policy. And we deeply believe that tomorrow of HUAYU COMPANY will be much more brilliant.
Main Products:
1.2000-48000 BPH Mineral/Pure Water Bottling Line;
2.2000-40000 BPH Juice Bottling Line;
3.2000-40000 BPH Carbonated Beverage Bottling Line;
4.3000-40000 BPH Beer Bottling Line;
5.6000-30000BPH Aluminium Can Filling Line;
6.120-2000 Barrels/Hour 3-Gallon & 5-Gallon Filling Line;
7. Edible Oil Filling Line;
8. Aseptic Brick Packing Machine;
9. Aseptic Pouch Packing Machine (Pillow Type);
10. PET Preform Injection Machine;
11. Bottle Blow Moulding Machine;
12. Water Treatment;
13. UHT Plant;
14. Carbonating Mixer;
15. Bottle Unscrambler;
16. Film Shrink-wrapping or Carton Box Packaging Machine;
17. PA-Depalletizer;
18. Turn Key Project.
