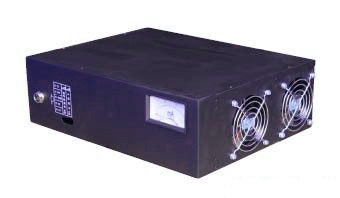

CO2 Laser Power Supply for Axis High Power
1. Main features:
1. This split type power supply is specially designed for Axis High Power CO2 Laser Generator. Each power supply drives one laser tube of the generator. They may work in 4 sets, 8 sets or 12 sets. Free and flexible assortment.
2. High output voltage and current: When inputting AC220V and outputting current up to 100mA when input AC220V and output 100mA, the voltage will be up to 15KV.
3. Quick Response: It can enlarge laser power and prolong laser tube. S service life.
4. Easy Control: The start and stop of laser can be easily controlled by TTL level.
5. This power supply has open circuit protection.
6. Current can be instantly displayed.
7. Application: Big power fast axial flow CO2 laser tube.
2. Specification:
Input Input voltage AC220V or AC110V(Please specify when placing order)
AC Frequency 47---440Hz
Max Input power 1800W
Max Input current 15A
Output Max Output voltage DC 45KV
Max Output current DC 100 mA
Efficiency more than90%(Full load)
MTBF more than10000 Hours
Response time less than1mS(Time from the TTL Signal is given to the output current up to 90% pre-setting current)
Withstand Voltage Input-Output, Input-Enclosure: AC1500V 10mA 60S, Output cathode is connected with enclosure.
Weight
Environment Operating temperature: (-10-40)degree, Relative humidity: Less than90%
Cooling Force-Air Cooling (FAC)
Dimension L× W× H=340× 265× 95(mm)
Welcome to Jinan Ruby Laser Technology Co., Ltd. She is a premier provider of laser power supply, CO2 laser tube, cutting head and fiber laser for laser cutting, laser welding and laser engraving needs. Up to now, she is a leading designer and manufacturer of high quality CO2 power supply, ND YAG pusled xenon lamp power supply, YAG CW pumped power supply with laser cutting or welding head in Jinan, Shandong Province, China.
Also she is a skilled laser integrator to offer a package solution for laser cutting, laser welding, laser marking and other industrial processing applications.
With its proprietary technology, qualified products and excellent after sales service, Rubylaser is growing into one of the largest industrial laser solution and service providers throughout China and offering CO2, YAG and fiber laser products and technical services to laser machine factories and machine user.
