Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Manufacturing Standard: |
Asme, As1228, CE |
| Inspection Organization: |
SGS, BV |
| Capacity: |
Supply Steam up to 50000kgs/Hr |
| Operating Pressure: |
up to 45bar |
| Emission: |
International Standard |
| Fuel Range: |
Coal, Woodchip, Husk, Biomass |
| Process: |
Thermal Processing |
| Composition: |
Steam Supply |
Product Description

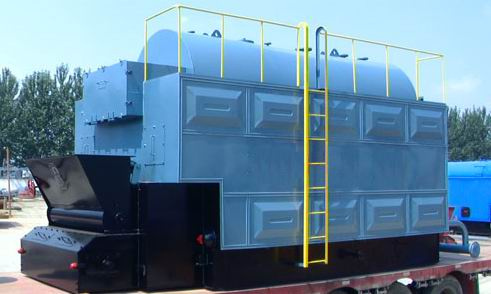

The boiler is coal fired boiler, can product steam or hot water for industry user, also can be biomass boiler and wood boiler, double drum water tube boiler design. High efficiency, more safety, save energy.
Boiler capacity from 1-80ton/hr
Operating pressure up to 40bar
Water tube design, moving grate or step grate for multi-fuel system.
Fuel option multi fuel, coal, woodchip, husk, biomass sawdust, waste wood
Full water wall construction ensuring min refractory
Large top and bottom drum for easy for maintenance access. A type or D type design, double drum, Moving grate or step grate.
Safe burning condition, low gas blackness, internation Emission standard
Hinged drum access doors so simplify fitting.
Access doorway into the boiler furnace for inspection and cleaning
Fully sealed and pressure tested outer tube walls to prevent exhaust gas leakage
Multi furnace viewing ports.
High effictive, low fuel consumption
SGS or BV inspection through whole manufacturing progress, and long-term service after sale.
We can made all kinds of boiler on your request specification
ASME certificate, and AS1228 is available through cooperation with Australia gov engineering dept.
After-sale Service: Engineers available to Service machinery overseas
For installing: Video will be supply to customers for easy understanding, Engineers are available instructing boiler installing, training in site; Beyond the warranty period, we charge the cost of spare parts but provide technician guidance and other service for free.
Welcome to our factories, we assure that our products will satisfy your needs with designs, competitive performance price ratio and best services.
RATING
MW |
Kg/h
f&@100C |
SHIPMENT WEIGHT |
SHIPMENT DEMENSION |
STEAM NOZZEL |
ELECTRIAL LOAD KW |
|
0.6 |
1000 |
15000 |
5488*2254*2780 |
50 |
8.2 |
|
1.2 |
2000 |
17500 |
5694*2504*3324 |
50 |
14.5 |
|
1.8 |
3000 |
20800 |
5760*2540*3350 |
80 |
20.5 |
|
2.5 |
4000 |
26000 |
6237*2660*3520 |
100 |
29.5 |
|
3.8 |
6000 |
35000 |
7100*2800*3500 |
150 |
43.5 |
|
5 |
8000 |
21000 |
7300*3000*3500 |
150 |
56.5 |
|
6.2 |
10000 |
23000 |
7600*3200*3500 |
150 |
71.5 |
|
7.5 |
12000 |
23000 |
7600*3200*3500 |
150 |
91.5 |
|
9.5 |
15000 |
21000 |
7336*3373*3324 |
150 |
105.5 |
|
12.5 |
20000 |
25000 |
7814*3373*3507 |
150 |
127.5 |
|
15.5 |
25000 |
24200 |
8478*2600*2740 |
200 |
167.5 |
|
18.8 |
30000 |
29500 |
9000*2600*2850 |
200 |
189.5 |
|
22 |
35000 |
33600 |
9200*2700*2900 |
200 |
222.5 |
|
25 |
40000 |
37600 |
9465*2900*3100 |
200 |
263 |
|
27.5 |
44000 |
20000 |
8570*2300*2500 |
200 |
283.5 |
|
31.2 |
50000 |
29000 |
9445*2550*2636 |
200 |
310 |
|
SPECIFIC INFORMATION AVAILABLE ON REQUEST |
Qingdao Global Industry Co., Ltd a professional Engineering manufacturing co, We design and supply energy power equipment and ASME certificate professional water tube boilers, fire tube boiler, solid fuel boilers and fluid fuel boilers; Steam tubine, And hot water absorption chiller, steam absorption chiller and direct fired chillers. We Located in the seaport qingdao, we offers design and engineering, procurement, construction, installation, commissioning, operation and maintenance.
Our workshop have got the ASME certificate, U, S mark, and AS1228 is available via cooperation with Australia engineering co of gov. And CE, ISO9001 etc. There are more than 700 employees in workshop, and 100 senior engineers and technicians engage in project consultancy, Engineering management, implementation, construction supervision, and other services. In recent years, our products have been successfully exported to Pakistan, Australia, Newzealand, Indonesia, Thailand, Iran, Bangladesh, Uzbekistan, Hongkong, and other overseas markets through our factory and group company.
Every equipment whole manufacturing progress under the inspection with BV, SGS, CQC.
We are sincerely looking forward to establish long-term business cooperation and good service for you.
