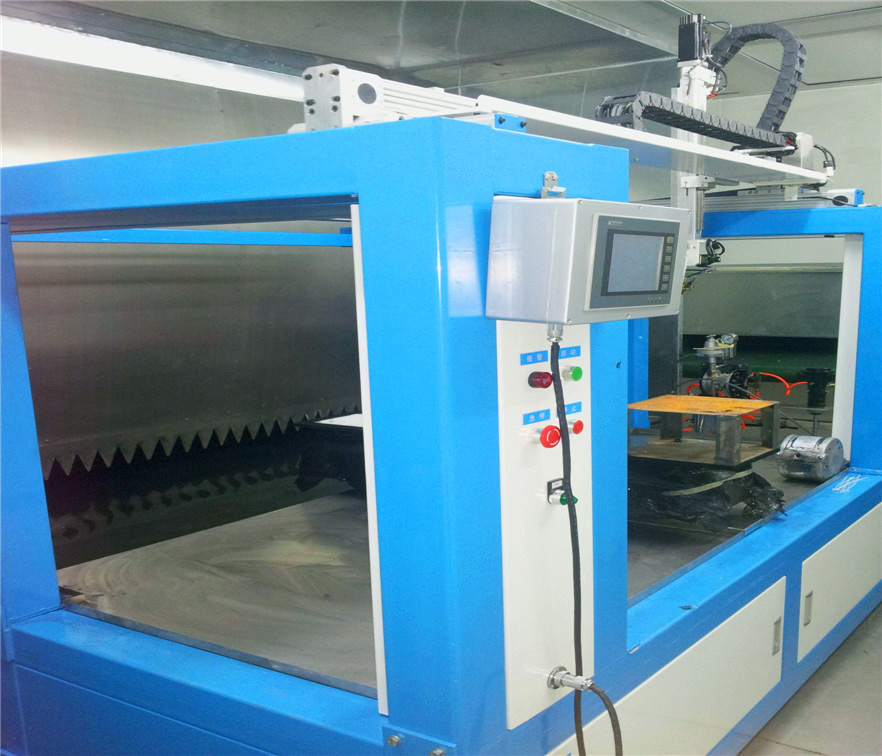

Coating Reciprocating Machine
Product Specifications
| Prod Model: |
CTTZ-S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Plastic Spraying Equipment |
| Certification: |
SGS |
| Type: |
Reciprocating Machine |
Product Description
Automatic operation is suitable for UV, PU coating, to determine the type size and quantity according to the work piece axis.
Five-Axis Reciprocating Machine Technical Data
| Items | Single- disc spraying | Double disc spraying |
| Appearance sizes (mm) | L2000×W2000×H2070 | L2600×W2000×H2070 |
| The number of discs (piece) | 2 | 4 |
| The discs size (mm) | 600×600 |
| Input power | Three-phase AC 380V/50Hz |
| Input power (kW) | 3 | 3.5 |
| Compressed air consumption (m3/h) | 21 | 42 |
X1 axis
Left and right movement | process (mm) | 600 |
| Speed (m/s) | 0~1.5 |
Y2 axis
Front and rear movement | process (mm) | 600 |
| Speed (m/s) | 0~1.5 |
Z3 axis
Upper and lower movement | process (mm) | 250 |
| Speed (m/s) | 0~0.3 | |
W4 axis
Vertical pendulum gun | process (mm) | 0~200º | 0~200º |
| Speed (m/s) | 0~60º | |
T5 axis
Horizontal pendulum gun | process (mm) | 0~160º | 0~160º |
| Speed (m/s) | 0~60º | |
| Disc rotation | 900 locate Or 3600 continuous |
| Programmatically | Digital input |
| Programming unit | Programmable controllers, touch screen |
| Storage capacity | 60 groups |
| Special planning custom |
Our company is located in the Yangtze River Delta economic circle of China emerging port industrial city -- Zhangjiagang. Zhangjiagang is a national civilized city, International Garden City, the most suitable for human living; Full of vitality, polite citizens. Our city has excellent the Yangtze River waterway and international inland port, we use facts to prove, by the product quality to convince the user, so that our products help your career!
Almost business of our company is in the domestic market before 2009. Built in April, 2010, our associated company was focusing on oversea markets. Our products passed the CE certification in May, 2011 and the ISO 9001 quality management system certification in June at the same year. Our products made by the self-manufacturing technology, with reasonable structure, adaptability, security, economical and practical, it is work on work-piece surface preparation and coating industry and related industries.
Complete set of painting equipment for the need for surface coating to protect metal, plastic or wood parts of a continuous or intermittent production of coating production equipment. According to the requirements of the workpiece, workpiece measures and plant area, made of cabinet-style spray booth, by the conveyor, workpiece will be sent to the various system to carry out the treatment process automatic or manual operation. Main processes are due to be completed in the workroom, and, accordingly, providing technical treatment. So, it is great to protect the environment and the staff's health.
The complete sets of equipment has pre-treatment system, drying system, powder or liquid spraying system curing system, conveying system electrical control system composition. Customer can according to the workpiece, the number of processing, workshop conditions, output efficiency, reasonable choice for the configuration, and appropriate for future development needs.
Waste gas purification is the company's patented technology, by using the method of optical and plasma binding, can effectively remove VOC, odor, smoke, dust, and can also be used for disinfection and sterilization; It is a new cleaning process, does not produce waste water, waste residue, will not cause secondary pollution.
If the UV coatings have new breakthrough, using UV coating technology of our company, instead of powder coating and painting, will greatly reduce the production cost.
